USED 1990 MORI SEIKI SL-8B

24" 3 Jaw Hydraulic Chuck
6 Station Turret
Chip Conveyor
Slant Bed Design with Boxed Ways

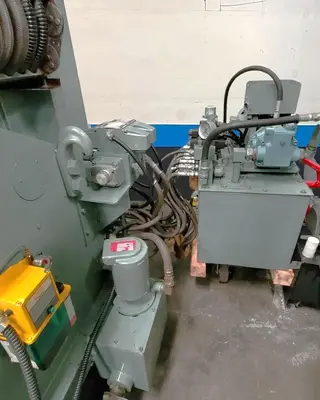

Hydraulic System
Coolant System with Tank & Pump
Foot Operated Chuck Pedal
RS 232 Port Interface
All Available Manuals
(3) Tool Holders

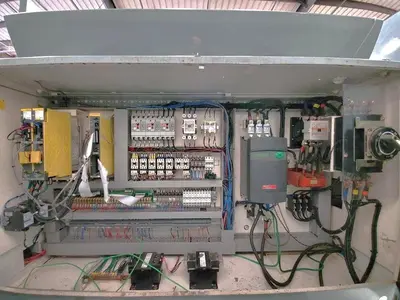

Wired 220V Electrics

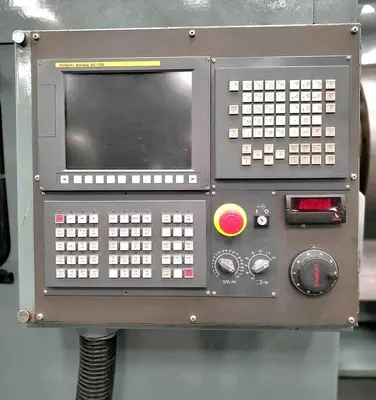

**Retrofit with new Fanuc control in 2013/2014**

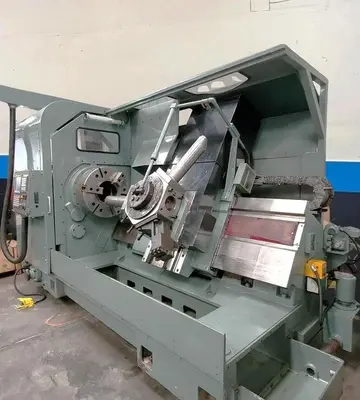

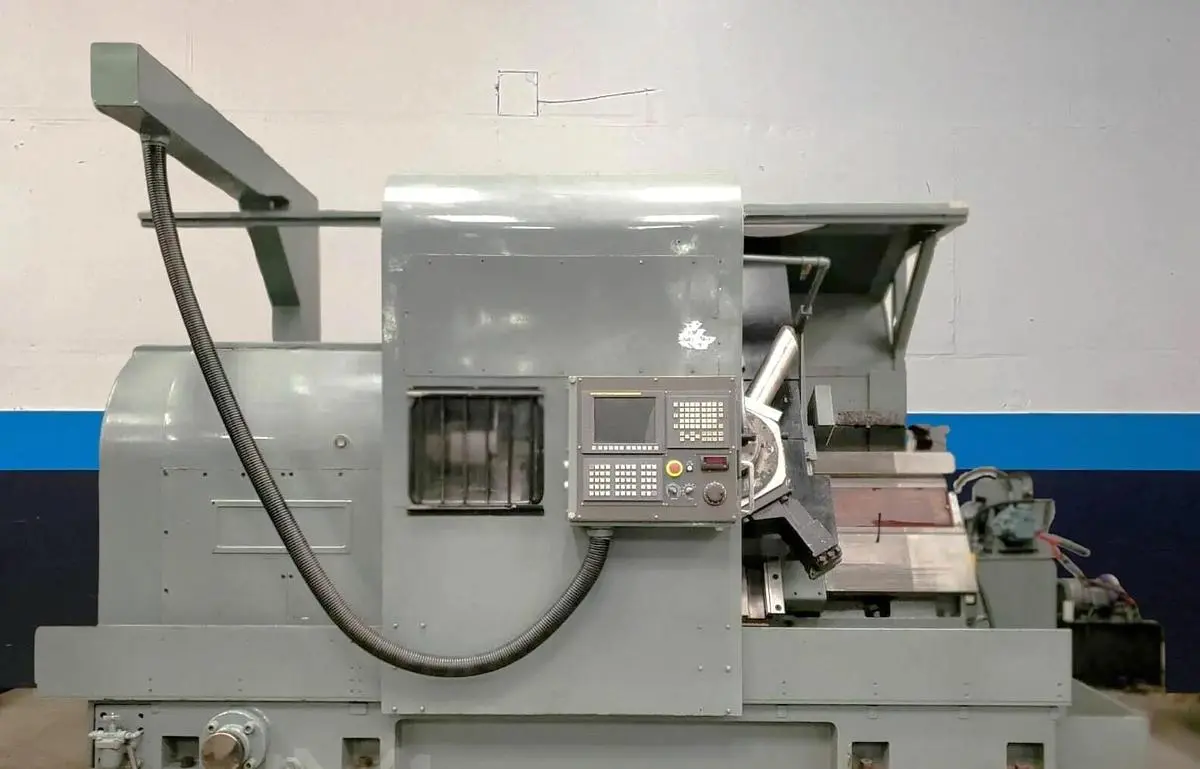

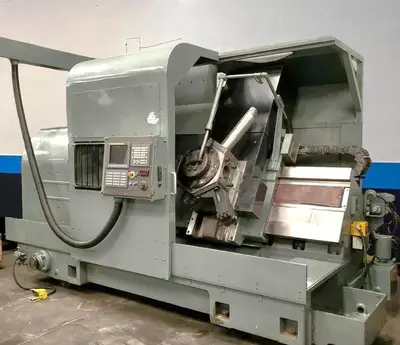

The 1990 Mori Seiki SL-8B CNC lathe is a robust machine equipped with an updated Fanuc 0i-TD Control system. It comes with a 24" 3 Jaw Hydraulic Chuck, offering a substantial maximum machining diameter of 35.4" and a swing over the bed of 39.3". The machine is designed with a center distance of 43.3", ensuring versatility in handling various workpiece sizes.

This lathe features a 10.5" spindle bore with an A1-20" spindle nose, and a spindle speed ranging from 4 to 550 RPM, driven by a powerful 50 HP motor. Its 3-speed geared system ensures efficient and precise machining operations. With an X-axis travel of 16.5" and a Z-axis travel of 43.3", the machine provides ample flexibility for different machining tasks.

The SL-8B includes a 6-station turret and a tailstock travel of 26.8" with a quill diameter of 4.3". It boasts rapid traverse rates of 197 IPM on the X-axis and 315 IPM on the Z-axis. Measuring 180" x 80" x 98" (or 220" x 80" x 98" with a chip conveyor) and weighing approximately 37,000 lbs., this sturdy lathe is well-suited for heavy-duty applications in industrial settings.

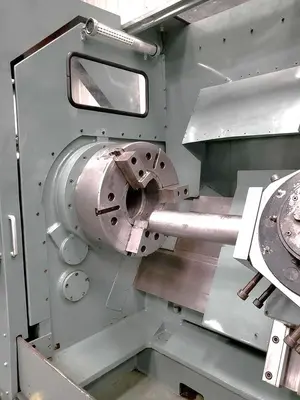

Chuck size: 24" 3 Jaw Hydraulic Chuck
Swing over bed: 39.3"
Swing over cross slide: 35.4"
Maximum machining diameter: 35.4"
Center distance: 43.3"
X-axis travel: 16.5"
Z-axis travel: 43.3"
Spindle Nose / Spindle Bore: A1-20" / 10.5"
Spindle speed: 4 - 550 RPM - 3 Speed Geared
Spindle motor: 50 HP
Turret type - vdi type: 6 Station Turret
Rapid Traverse Rates X/Z: 197 IPM / 315 IPM
Machine dimensions: 180" x 80" x 98" (with chip conveyor 220" x 80" x 98")
Machine weight: 37,000 lbs.
