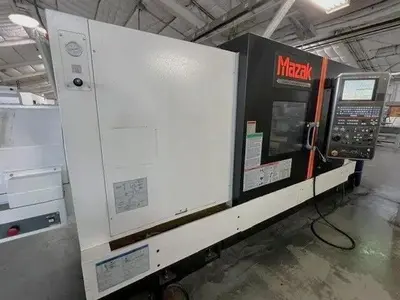

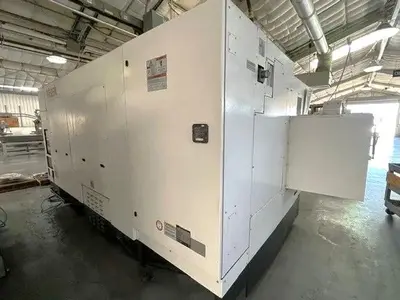

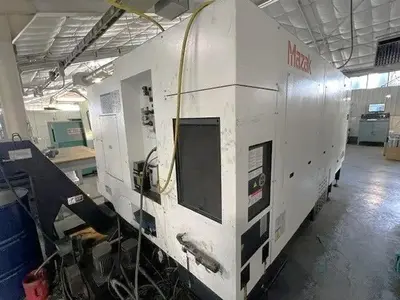

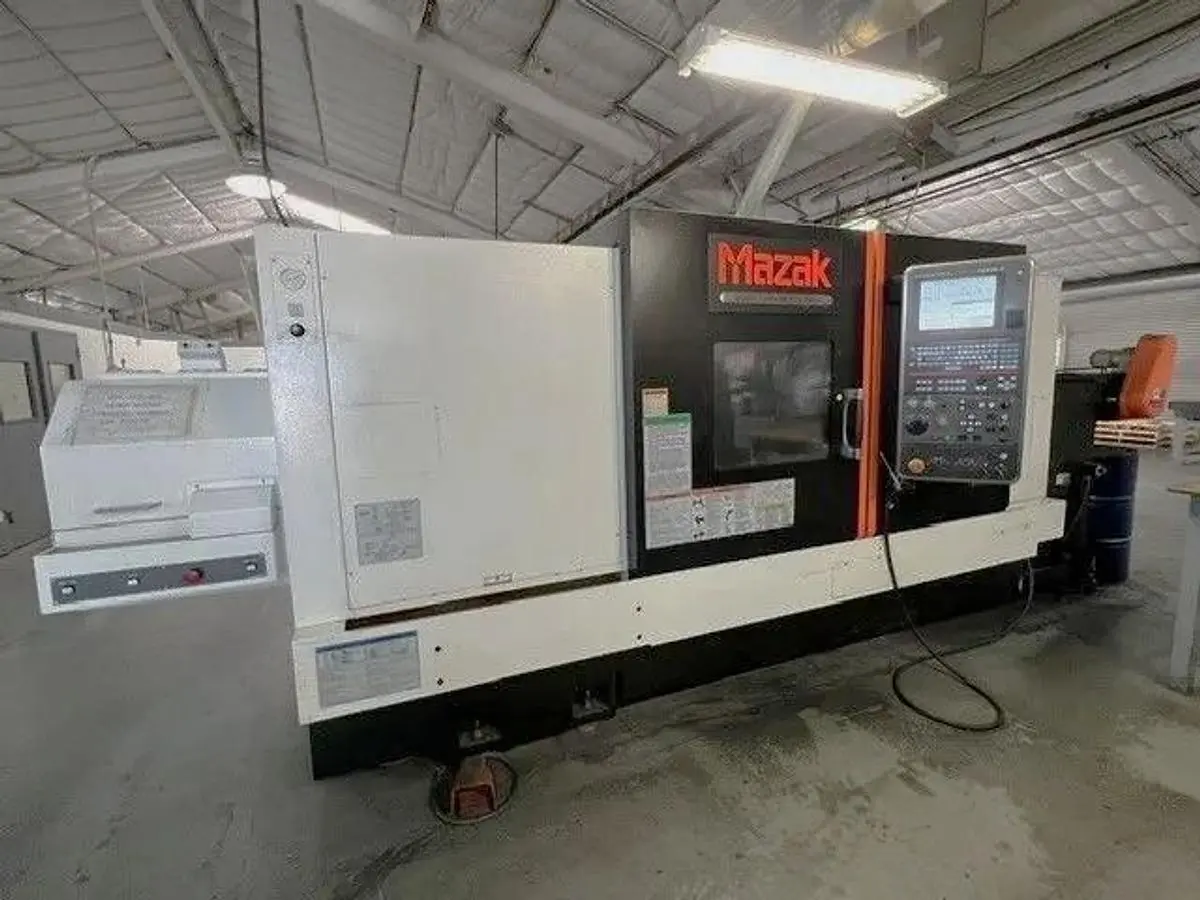

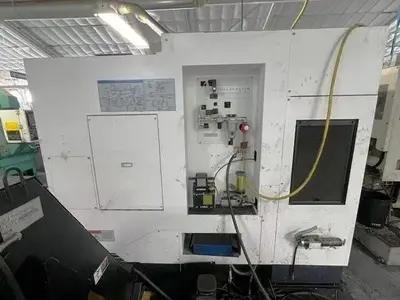

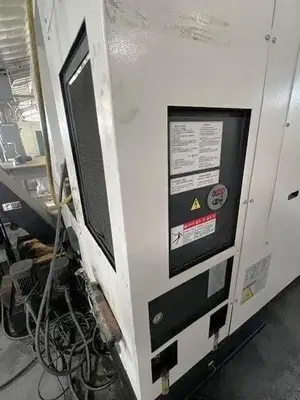

USED 2016 MAZAK NEXUS QTN 450-II/1000
Overview
18" 3 Jaw Hydraulic Chuck
6.5" Bar Capacity
Automatic Tool Eye
Programmable Tailstock
Tailstock Thrust Select (9 levels)

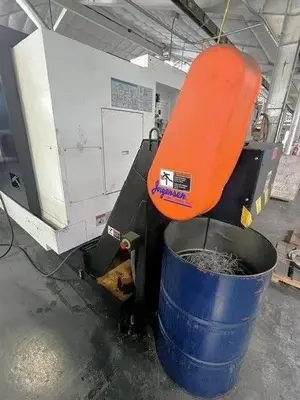

Chip Conveyor
Rear Chuck Prep
High Power Coolant
Thread Cutting Function
Re-Threading
Thread Start Point Compensation
User Macros
EIA/ISO Input Function
Backround Tool Path Check
Polar Coordinate Inputs (G122)
Velocity and Feedrate Control
Virtual Machining
Auto Tool Life Management
Hydraulic Pressure Interlock
External Data Input/Output
USB Port Interface
LAN Port Interface
All Available Manuals
All Available Tooling
Specs

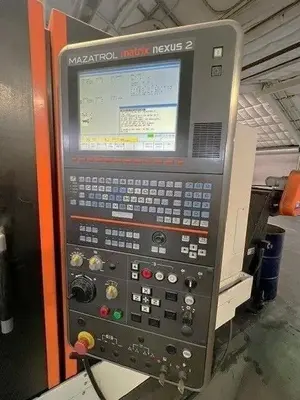

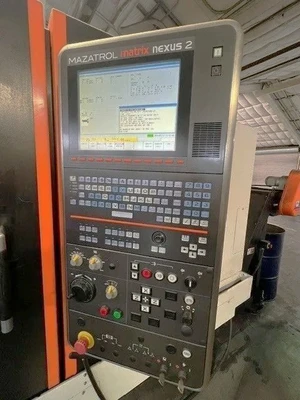

Machine Control: Mazak Matrix Nexus 2 Control

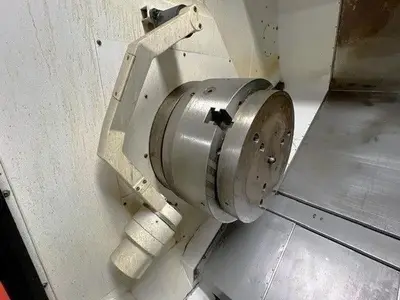

Chuck Size: 18" 3-Jaw Hydraulic
Maximum Swing: 33.26"
Maximum Cutting Diameter: 22.83"
Maximum Turning Length: 40.2"
X-Axis Travel: 12.6"
Z-Axis Travel: 40.2"
Spindle Nose / Bore / Bar Capacity: A2-15 / 7.23" / 6.5"
Spindle Motor: 40 HP
Spindle Torque: 1217 ft/lbs.
Spindle Speeds: 2,000 rpm

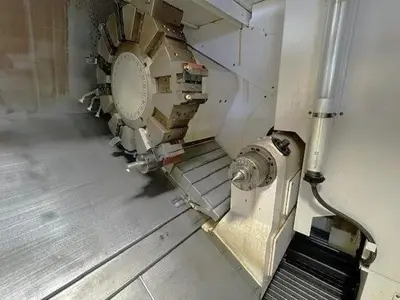

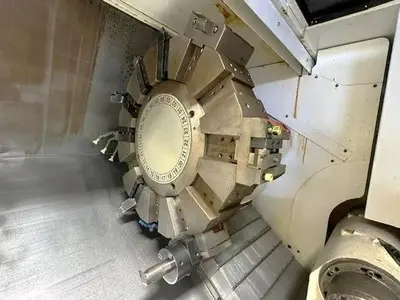

Number of Turret Positions: 12 Sided / 24 Positions
Rapid Traverse Rates: 1181 IPM
Tailstock Quill Diameter / Center: 3.94" / #5 MT
Machine Dimensions LxWxH: 144"x90"x80" approximately
Machine Weight: 25,910 lbs
