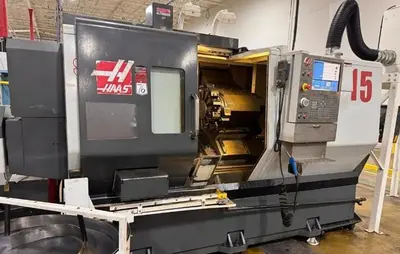

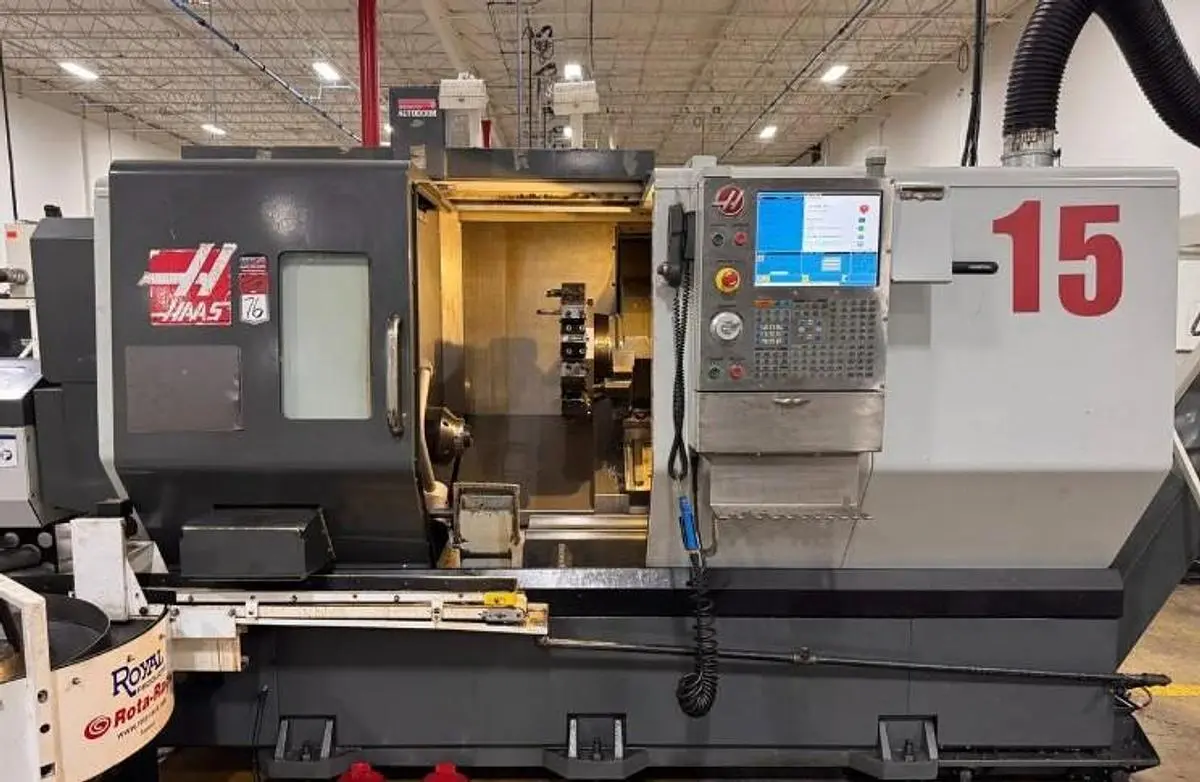

USED 2015 HAAS ST-30

Programmable Tailstock
Remote Jog Handle
Parts Catcher
10" 3 Jaw Hydraulic Chuck
Tool Presetter

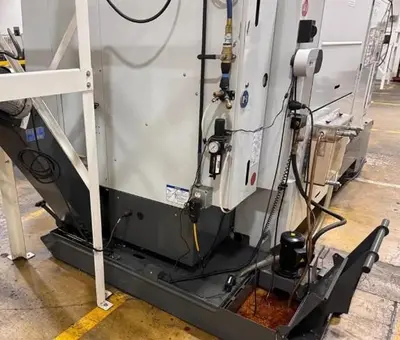

Chip Conveyor
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
195-260V Electrics
All Available Tool Blocks

The 2015 Haas ST-30 is a versatile CNC lathe designed for precision and efficiency in machining processes. Equipped with a 10" chuck and a 3" bar capacity, this machine supports a wide range of applications. The Haas CNC Control ensures easy operation and precise control, while the inclusion of a chip conveyor and tool presetter enhances productivity by maintaining clean and efficient workspaces.

This lathe boasts a maximum swing of 31.75" and can accommodate a maximum turning diameter of 15" with machining lengths up to 32.5". It features a robust 30 HP spindle motor that operates between 30 to 3,400 RPM, suitable for varying material requirements. The 12-position turret and rapid traverse rates of 945 ipm for both the X and Z axes streamline machining operations. Additionally, the machine is equipped with a tailstock, offering a 20" body travel and an MT #4 taper for added versatility.

With overall dimensions of 171" x 90" x 83" and a weight of 12,540 lbs, the Haas ST-30 is built to handle demanding tasks while maintaining a manageable footprint. This used model is an excellent option for businesses looking for reliable performance and adaptability in their CNC operations.

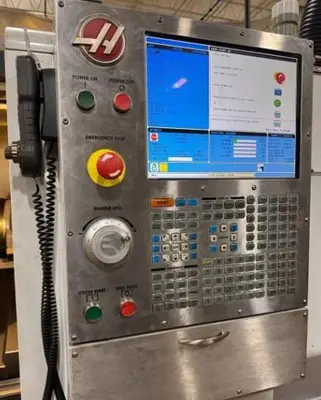

Machine Control: Haas CNC Control
Maximum Swing: 31.75"
Maximum Turning Diameter: 15"
Maximum Machining Length: 32.5"
Maximum Bar Capacity: 3"
X-Axis Travel: 9.4"
Z-Axis Travel: 32.5"
Spindle Nose / Bore / Bar Capacity: A2-6" / 3.5" / 3"
Spindle Speeds: 30 - 3,400 RPM
Spindle Motor: 30 HP

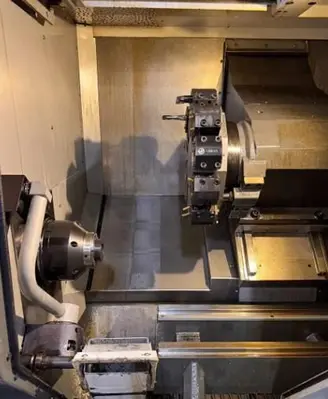

Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates X/Z: 945 ipm / 945 ipm
Tailstock Body Travel / Taper: 20" / MT #4
Machine Dimensions: 171" x 90" x 83"
Machine Weight: 12,540 lbs.
