USED 2007 DOOSAN MV8035

6.5" Spindle Bore| 15" Hydraulic chuck

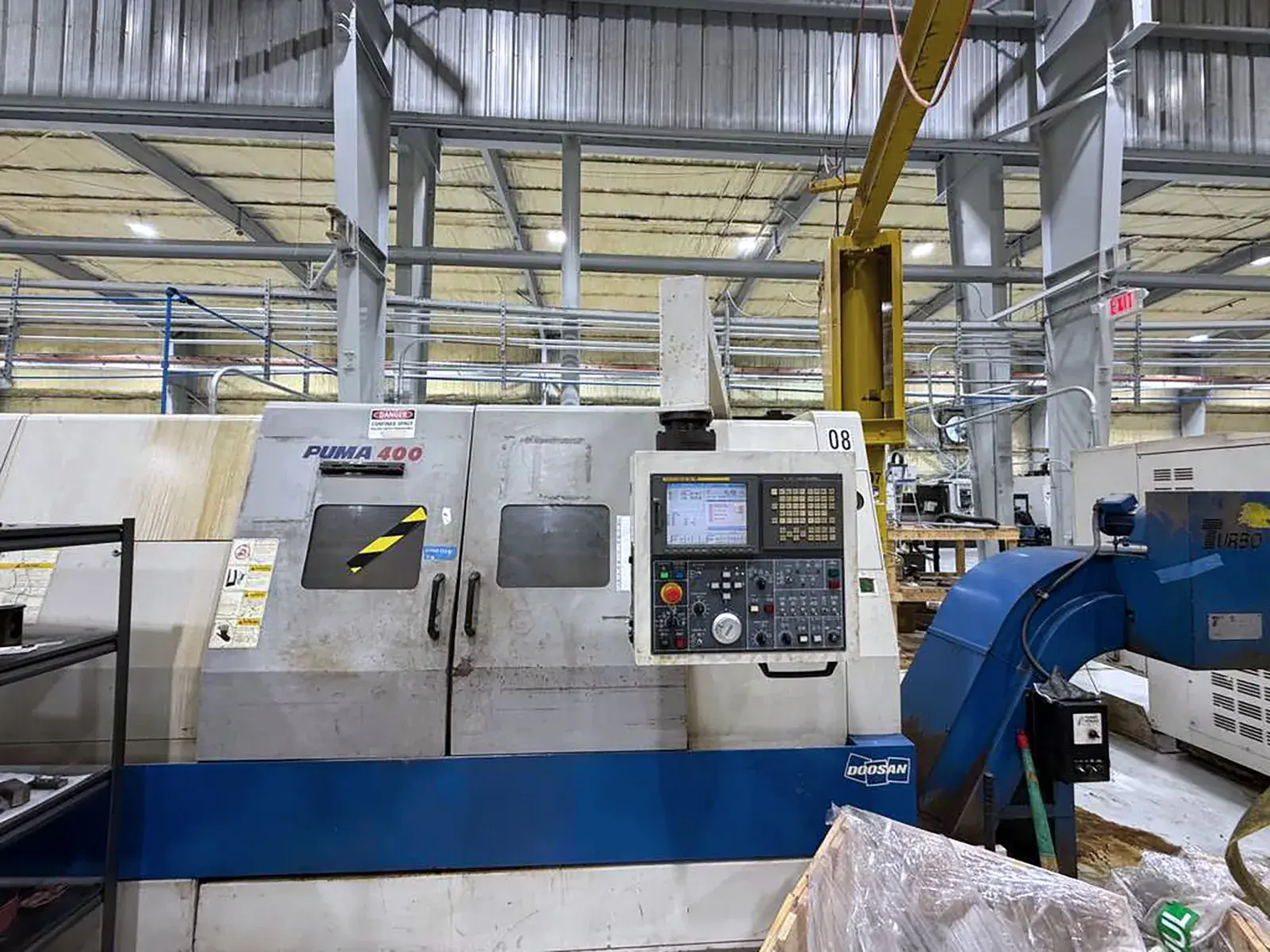

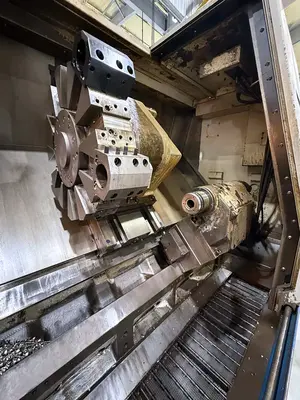

The Doosan Puma 400C CNC Turning Center (2007) with Fanuc i-Series control is engineered for heavy-duty, high-torque machining of large and complex components. Built with rigid box guideways and a programmable tailstock, it excels in deep stock removal, large shaft turning, and precision machining for aerospace, oil & gas, automotive, and infrastructure industries. Ideal for machining valves, pipes, engine casings, axles, and structural metal components with superior accuracy and stability.

Swing over Bed: 30.3”
Swing Over Saddle: 23.23”
Max. Machining Dia.: 21.7”
Max Work Length: 40.3”
X-Axis Travel: 14.3”
Z-Axis Travel: 43.5”
Speed Range: 15 – 1,500 RPM
Spindle Nose: A1#15
Spindle Bore Diameter: 7.1”
Bar Capacity: 6.5”

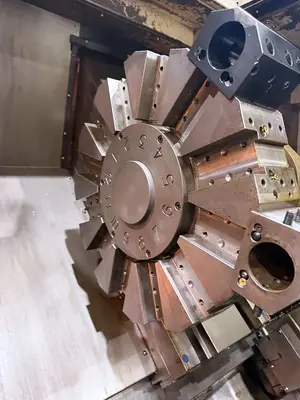

Number of Turret Stations: 12
Spindle Motor: 50 HP (30 min)
Approx. Weight: 21,000 lbs
Approx. Footprint: 15 ft x 8 ft

Fanuc 21i-TB Control

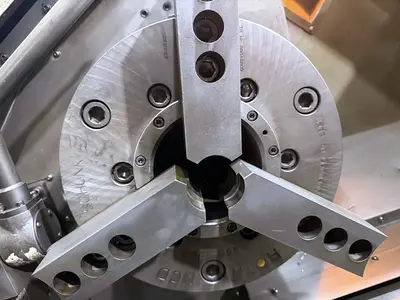

Hydraulic Chuck 15"
Tailstock
Chip Conveyor
Tool Presetter
