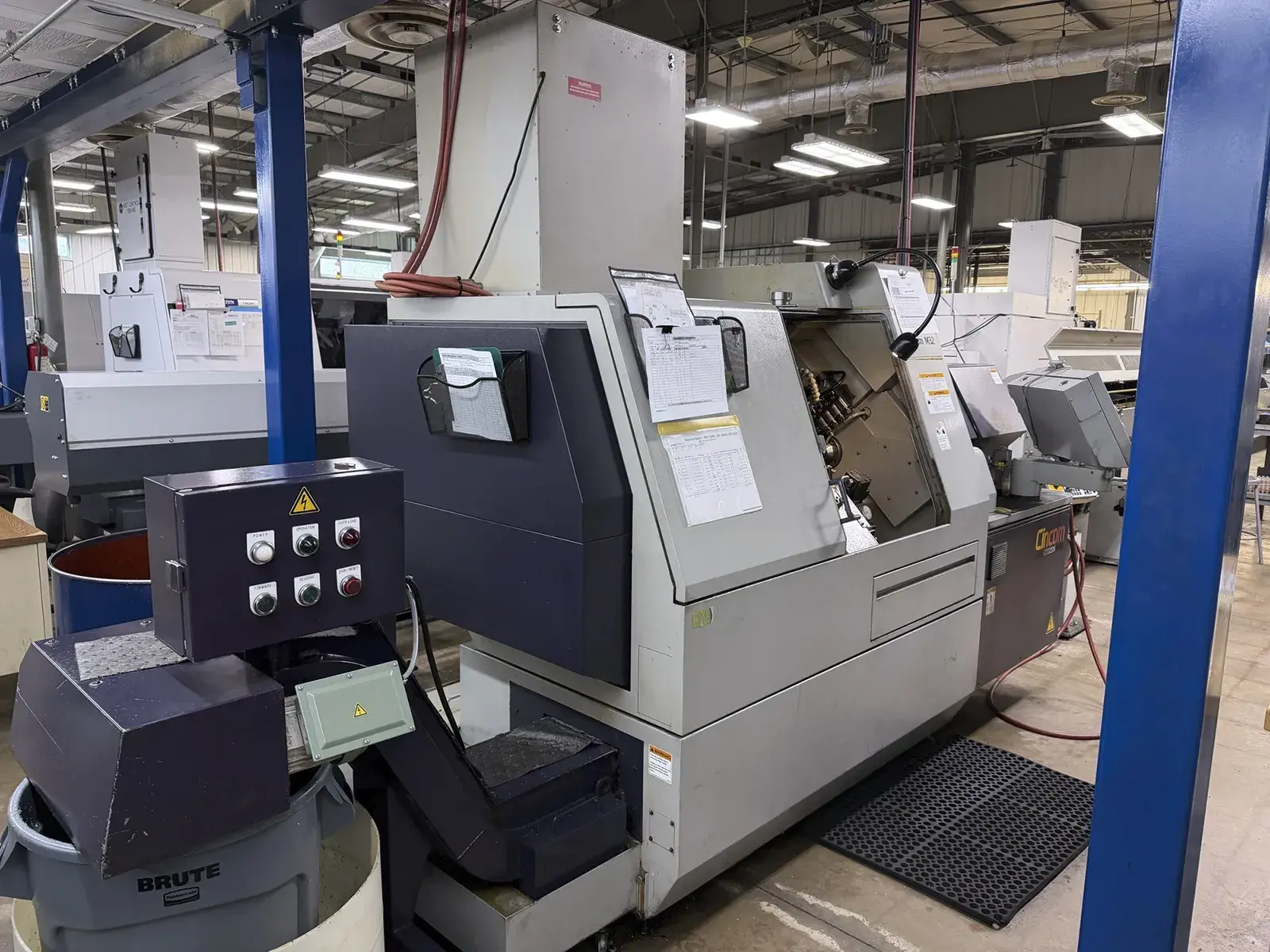

USED 2004 CITIZEN M32 III

FMB Barloader| High Pressure

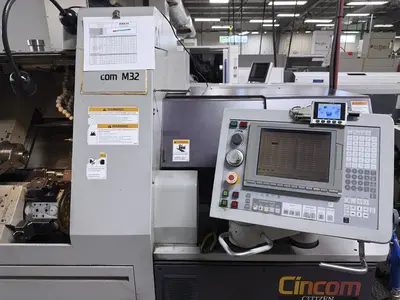

The Citizen M32III Swiss Lathe (2004) with Cincom control is a high-precision Swiss-type CNC turning center built for complex, high-volume manufacturing. Designed for simultaneous turning, milling, and drilling in one setup, it delivers exceptional accuracy for medical, aerospace, automotive, and electronics industries. Ideal for producing intricate small parts, fasteners, connectors, implants, and specialized turn-mill components with tight tolerances.

ar size diameter: 32mm
Max. Turning Length: 320mm
Max. diam. Front drilling: 12mm
Max. diam. Front tapping: M10-M8
Max. diam. posterior drilling: 10mm
Max. diam. Posterior tapping: M8
Max. Main Spindle Speed:: 200-8000 rpm
Max. Sub Spindle Speed:: 200-7000 rpm
Position Axis C main spindle: Cs 1°/1000°
Position Axis C sub spindle: Cs 1°/1000°

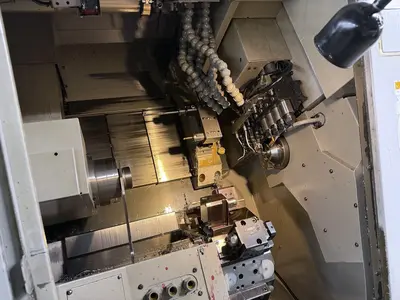

Number of Turret Positions: 10
# of Tools: 22+α
No. Facing tools: 5
No. Live tools: 4
No. Fix tools: 10+α
No. Tools of sub spindle: 3
Dimension tools pos 1: 16x16x130mm
Dimension tools pos 2: 16x16x90mm
Fix tool holder: Diam. 25.4mm
Main Spindle Motor: 3.7/5.5 KW
Sub Spindle Motor: 1.5/2.2 KW
X1 axis feed motor: 0.4 KW
Turret Motor: 1.0 KW
# of Axes:: 11 Axes: X1,Y1,Z1,X2,Y2,Z 2,X3,Z3,T1,C1,C2

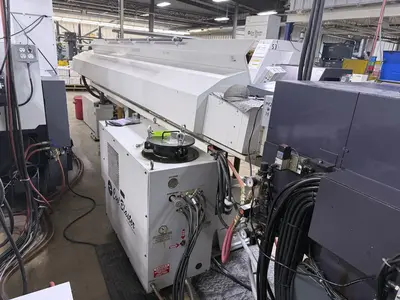

FMB Turbo 542 Barloader
High Pressure Coolant

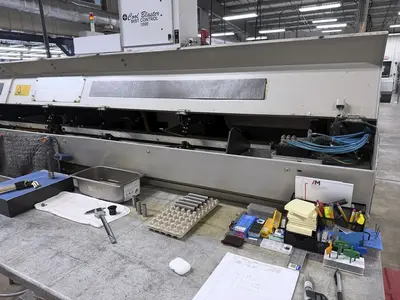

Mist Collector
(2) Live holders
