USED 1982 NOMURA B-100WP

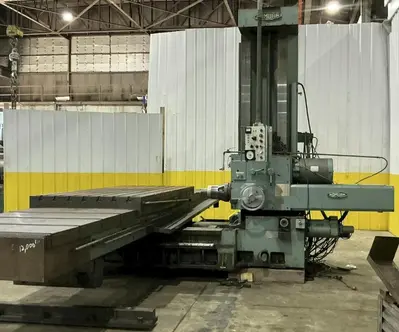

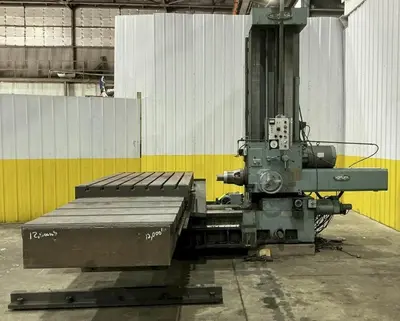

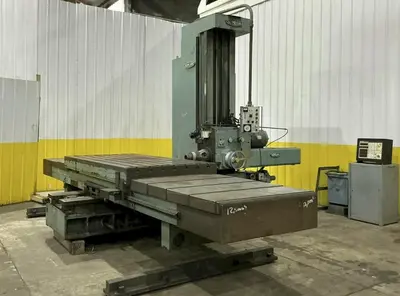

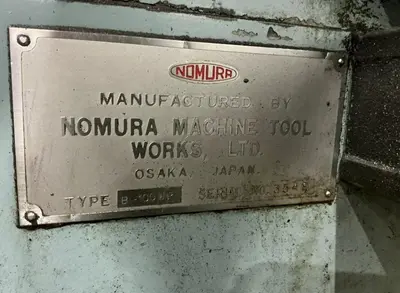

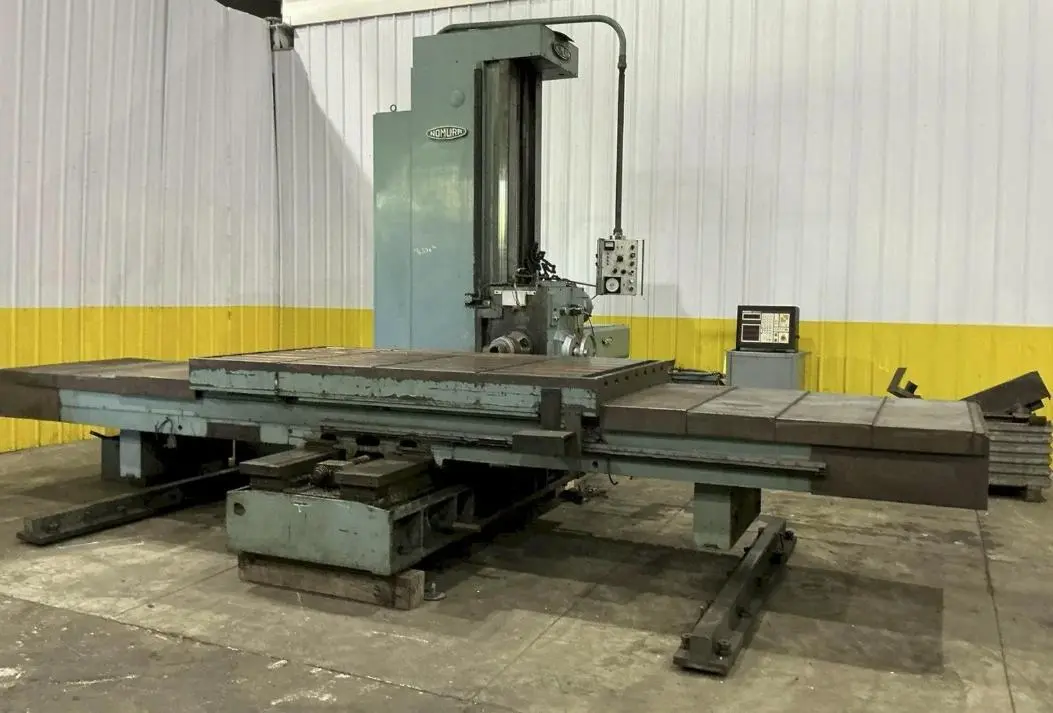

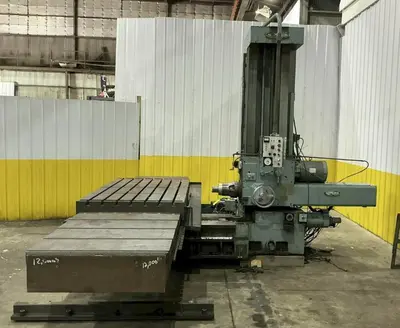

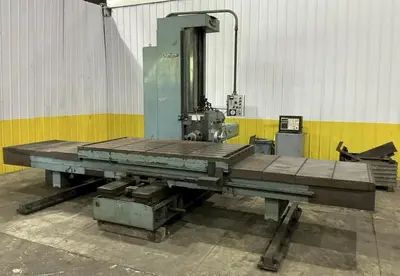

4" Nomura #B-100WP Table Type Horizontal Boring Mill SERIAL: 3549 Year: 1982 MODEL: B-100WP

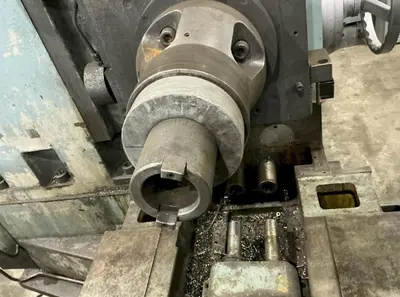

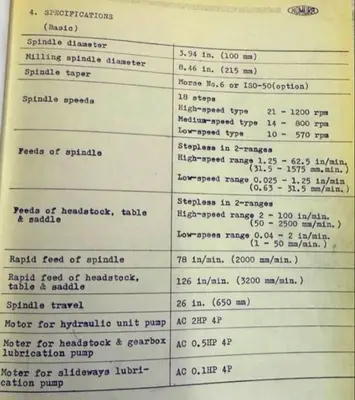

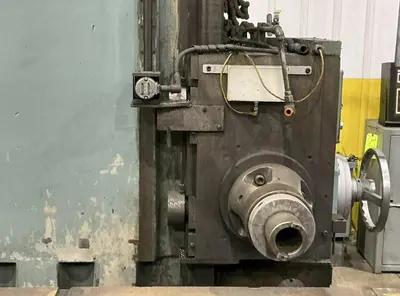

Spindle Diameter:4 in
Spindle Taper:50 Taper
Spindle Speed: 21 TO 1,200 RPM

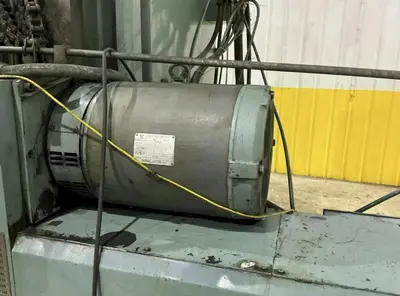

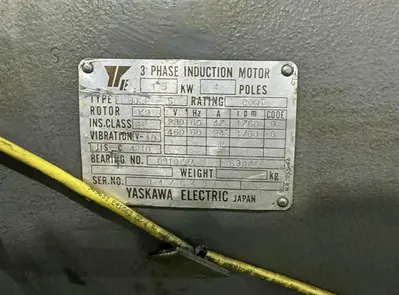

Spindle Motor Power: 20 HP
X-Axis Travel: 96 in

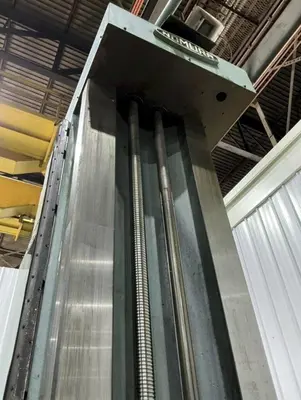

Y-Axis Travel: 60 in
Z-Axis Travel: 43 in
W-Axis Travel: 26 in

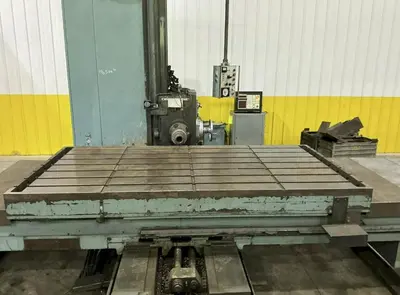

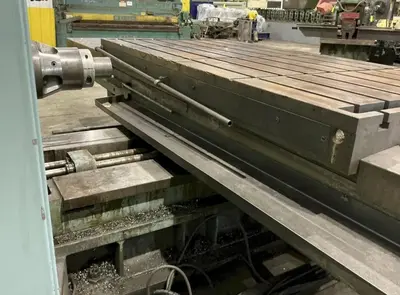

Table Size (L x W),96 in x 48 in
Table Load Capacity: 13,200 lbs
Machine Dimensions: 232 x 182 x 142 in
Machine Weight: 36,500 lbs

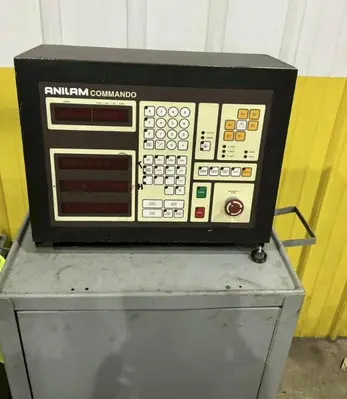

Anilam Commando Point-to-Point CNC Control
Spindle Motor Power: 14.9 kW
X-Axis Travel: 2438.4 mm
Y-Axis Travel: 1524 mm
Z-Axis Travel: 1092.2 mm
W-Axis Travel: 660.4 mm
Table Length: 2438.4 mm
Table Width: 1219.2 mm
Table Load Capacity: 5987.6 kg
Machine Dimensions: 5897.6 x 4621.6 x 3606.8 mm
Machine Weight: 16510.2 kg
