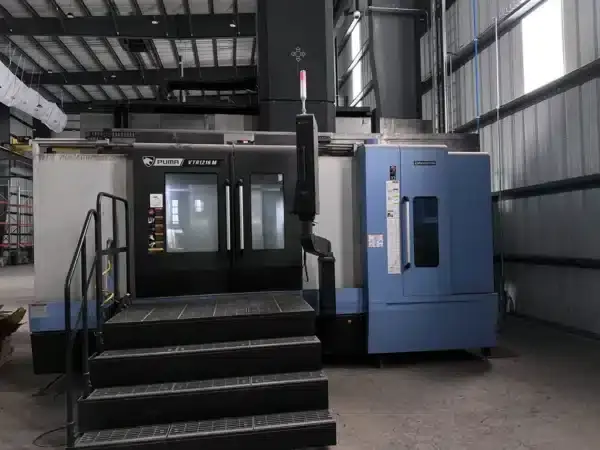

Doosan VTR1216M VTL – 2022
Overview
Description
Doosan VTR-1216M Vertical Turret Lathe
machine specification
Max Turning Diameter 63 in
Max Turning Length (Height) 49 in
X-Axis Travel 67 in
Z-Axis Travel 47 in
Rapid Traverse (X) 472 ipm
Rapid Traverse (Z) 394 ipm
Max Spindle Speed 400 RPM
Spindle Motor Power 60 HP
Max Spindle Torque 15,162 ft-lb
Rotary Tool Speed 3,000 RPM
Option / equipped with
Only 1022 Cutting Hours
C Axis
Live Tooling Included
15-Position Automatic Tool Changer
55″ dia Chuck
4 Jaw’s Included
Chuck open/close confirmation
Automatic Tool Gauge
Cooling System
725 psi Hydraulic System
Complete Tool Holder Set
Operation and Maintenance Manuals
Hydraulic Actuator
Chuck Clamp/Unclamp Confirmation Proximity Switches
1 Renishaw RMP600-1IN-DIA Part Probe with 1″ Shank and 3.9″ Stylus Included
1 Dual Chuck Pressure Included
1 REN-RMIQ-SW-2 Receiver Renishaw RMI-Q
Radio Frequency Interface Included
2 Chip Conveyors
Doosan EZ Guide Conversational Programming Assistant
