Used

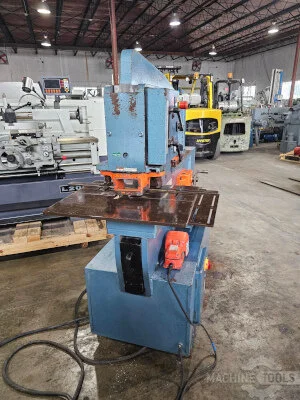

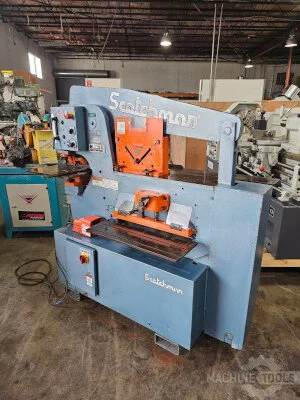

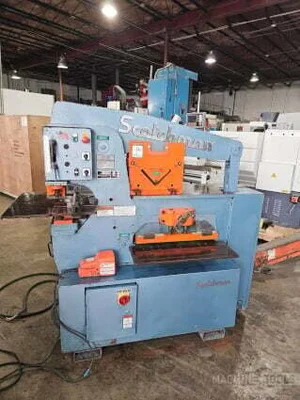

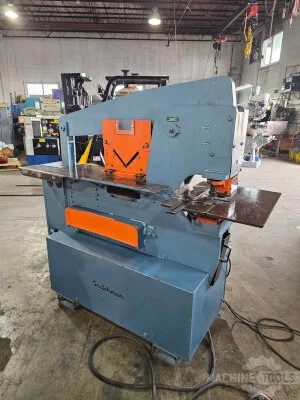

USED 2016 SCOTCHMAN 6509-24M

Florida, United States
Overview
Specs
Tonnage
65 T
58.967 t
Angle (L1)
6"
152.4 mm
Angle (L2)
6"
152.4 mm
Angle (T)
0.375"
9.525 mm
Power
5 hp
5 hp
Throat
9"
228.6 mm
Stroke
5"
127 mm

65 Ton Ironworker with Electric Remote Foot Pedal, 24” Bar Shear, Adjustable Stroke Control with Scale and Punch Gauging Table with Fence & Scale.GENERAL SPECIFICATIONS Tonnage:                    65 TonsThroat:                    9”Capacity:                    1-1/16” Thru ¾”Max. Thickness:            1” X 6”Max. Angle @ 90°:                5” X 5” X ½” | 6” X 6” ⅜”Motor:                        5 HPElectrics - Standard:                208 - 230/460 / 3 / 60Base Dimensions:                22-½” X 60”Overall Height:                66” Net Weight:                    2,500 LbsINCLUDES: Electric Remote Foot Pedal, 24” Bar Shear, Adjustable Stroke Control with Scale and Punch Gauging Table with Fence & Scale.
