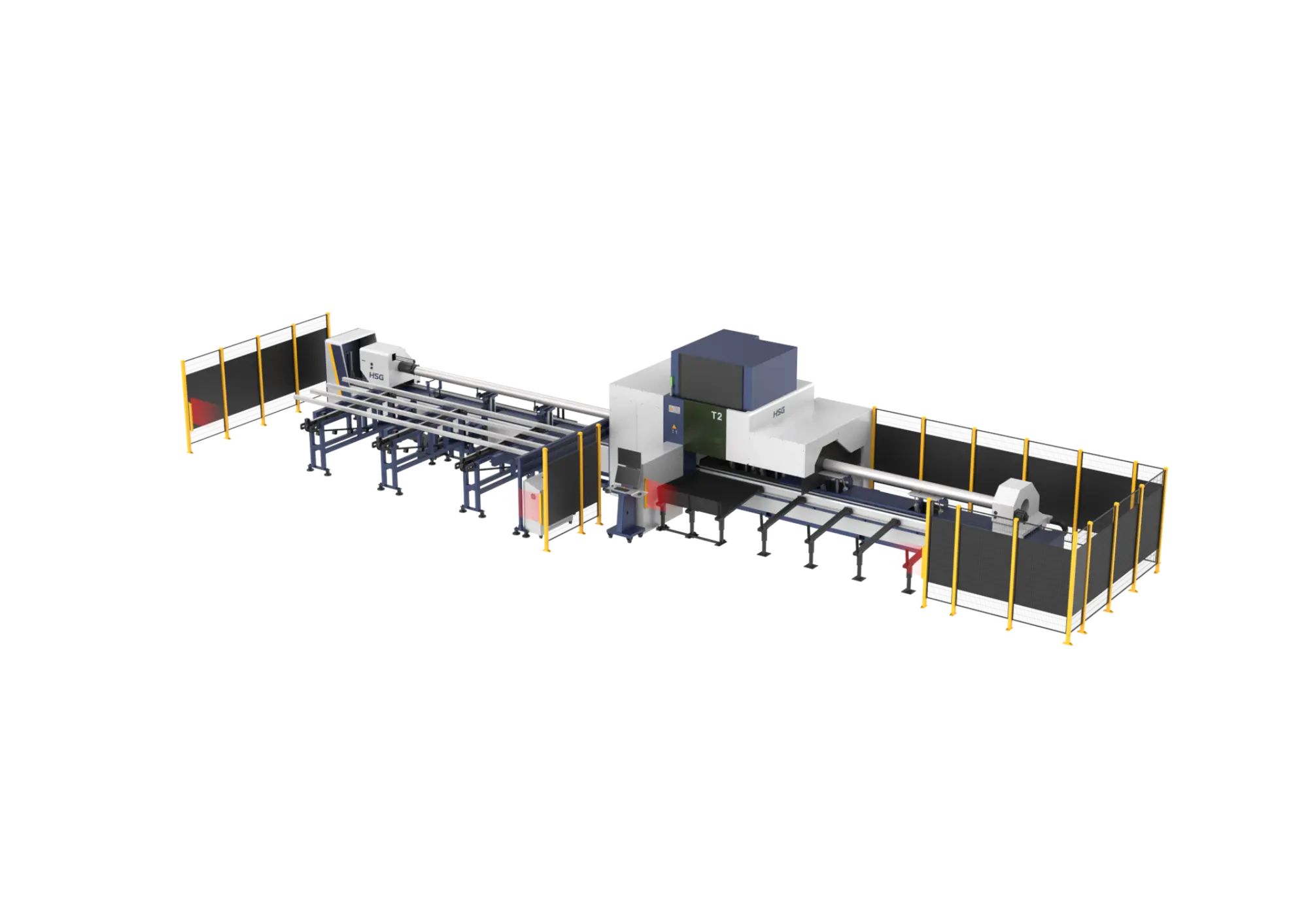

RELIABLE 3-CHUCK CUTTING FOR MID-SIZE TUBE SOLUTIONS
The T2-Series supports tubes with a radius of 0.79''-9.45'', offering a
significantly expanded processing range. Its advanced three-chuck
design ensures greater load-bearing capacity, enables zero-tail cutting,
and facilitates seamless automatic cutting of finished products.
This state-of-the-art solution meets diverse processing needs while
maximizing cost efficiency for customers.
Laser Power
3-6KW
Cutting Capacity of Round Tube / Square Tube
φ0.79''-9.45'' / □0.79''×0.79''-□9.45''×9.45''
Weight of Single Tube
661 lbs
Max. Linkage Speed
328'/min
Max. Linkage Acceleration
1G
Tube Length Range
3.28'-22.97'
