NEW HSG R2
Overview

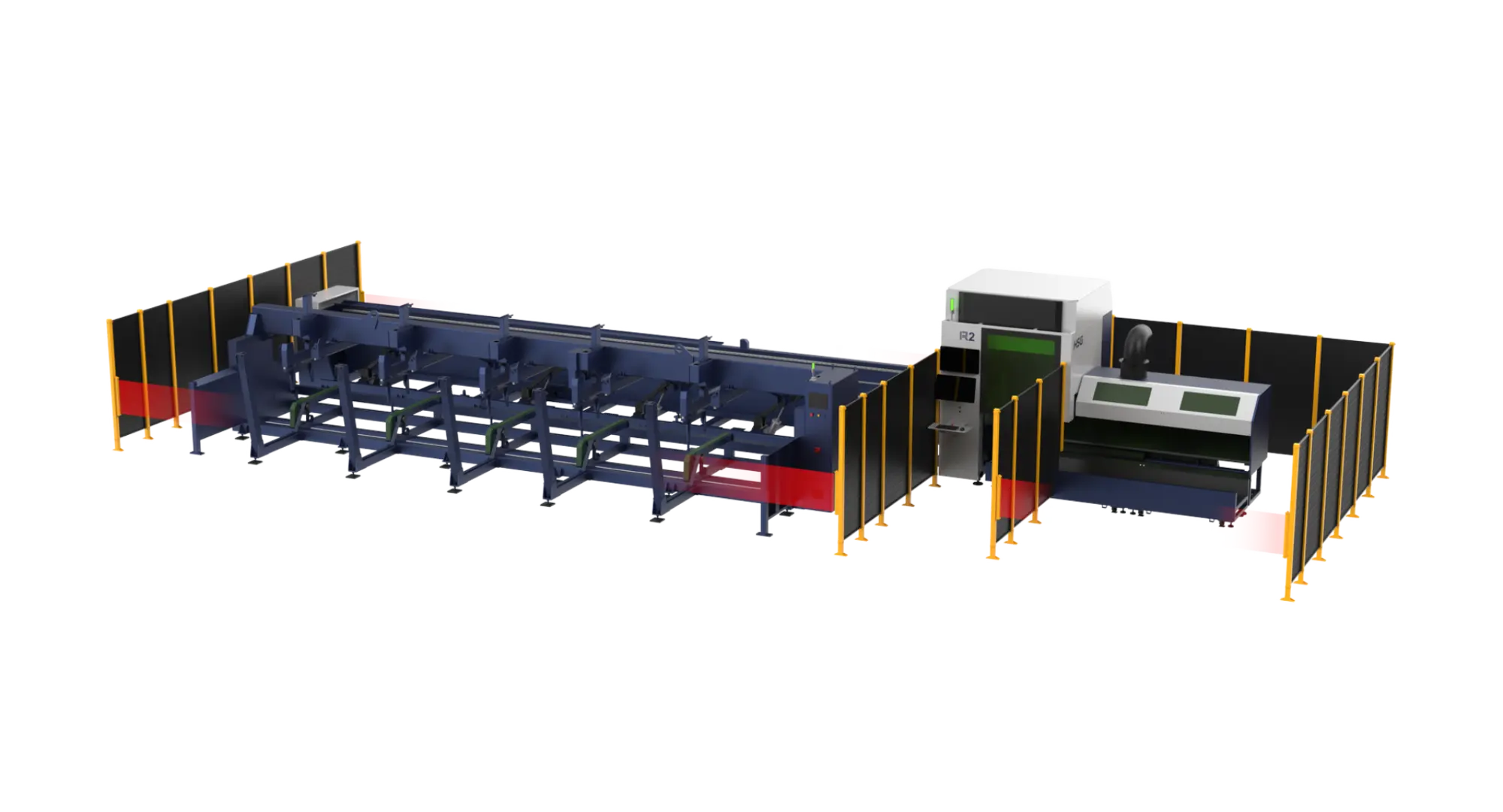

New HSG R2 3-6 kW CNC tube and pipe laser cutting machine for round, square, rectangular and selected profiles. It handles up to 9.45 in round or square capacity, up to 661 lb per tube, and can combine cutoffs, holes, slots, notches and copes in one programmed process. Available configurations may ship from HSG’s U.S. inventory or be factory-built to order. Current power, options and lead time are confirmed with your quote.
Specs
HSG R2 - TECHNICAL SPECIFICATIONS
Manufacturer: HSG Laser
Model: R2
Series: R Series
Condition: New
Machine type: Two-chuck CNC tube and pipe fiber laser cutting machine
Laser power range: 3-6 kW
Round tube capacity: 0.47-9.45 in diameter
Square tube capacity: 0.47 x 0.47-9.45 x 9.45 in
Other profiles: Rectangular and selected open profiles, subject to configuration
Maximum single-tube weight: 661 lb (300 kg)
Tube length range: Approx. 3.28-21.33 ft standard or 3.28-29.53 ft extended
Maximum linkage speed: 394 ft/min (120 m/min)
Maximum linkage acceleration: 1.2G
Chuck rotation speed: Up to 120 rpm
Control: HSG-X10000
Optional automation: Raw-material loading and long finished-part unloading
Availability: Configurable family; U.S. inventory or factory order depending on length and options
Installation and training: Included
Service: Direct service and repair by HSG factory-trained MacLean technicians
Warranty: Included; exact coverage is supplied with the final written quotation.
Specifications and options are subject to the final written configuration and quotation.
Equipped With
Two-chuck tube handling system; HSG-X10000 CNC control; Automatic tube-center measurement; Tube support mechanism; Corner anti-burn and short-tail functions; Fully enclosed cutting area; Optional automatic raw-material loader; Optional long-part unloader; Matched air compressor and dust collection available
