NEW GATOR FAB G4P 30/06
Overview
Description

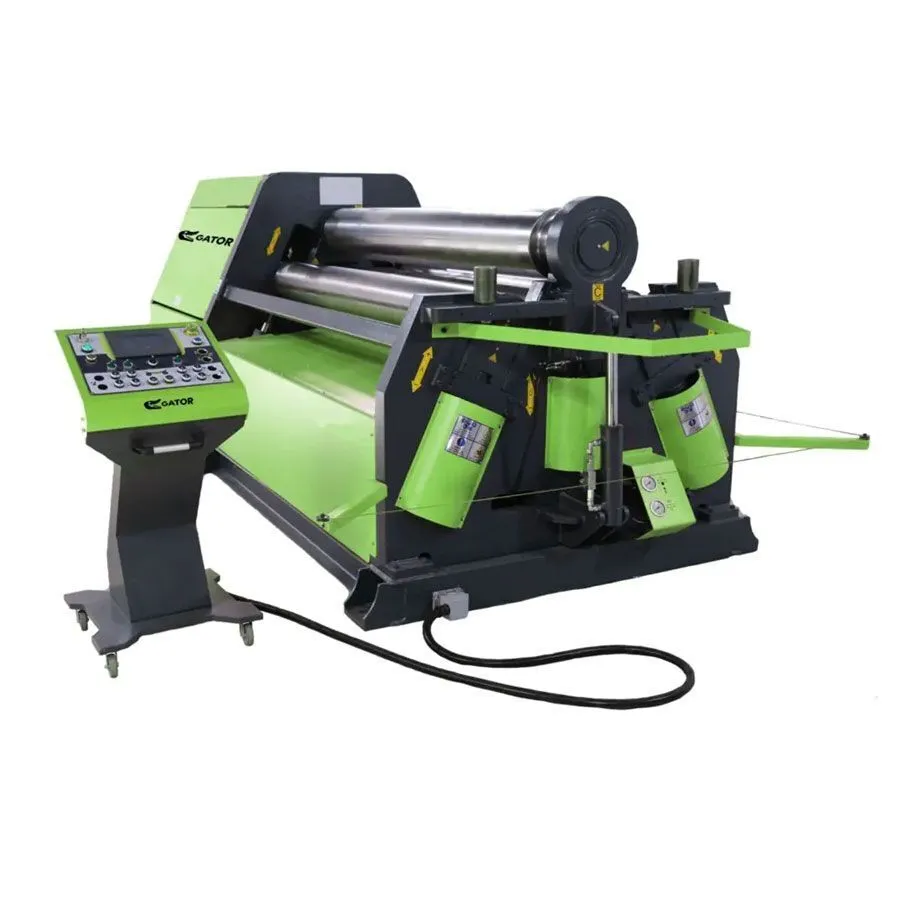

Brand-new GATOR FAB G4P 30/06 hydraulic plate rolling machine features a 10-ft roll length and 0.25-in max thickness. Pre-bend capacity of .157" (8 ga.). Equipped with a double-pinch setup and NC controller, it's perfect for precision sheet metalwork.
Specifications
| (Init/Dbl Pinch or Pyramid) | DBL PINCH | DBL PINCH |
|---|---|---|
| Length of Rolls (Feet) | 10' | 3 m |
| Length of Rolls (inch) | 122" | 3.1 m |
| Max Thickness | 0.25" | 6.35 mm |
| Pre-Bending Thickness (Gauge) | 8 gauge | 8 gauge |
| # Rolls | 4 | 4 |
| Top Roll Dia. | 8.27" | 210.06 mm |
| Bottom Roll Dia. | 7.5" | 190.5 mm |
| Power | 10 hp | 7.5 kW |
| Weight | 15,000 lbs. | 15,000 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
Equipped With
OPTIONAL ITEMS - CALL FOR PRICE:
*Installation and training for 2 days: $5,000.00

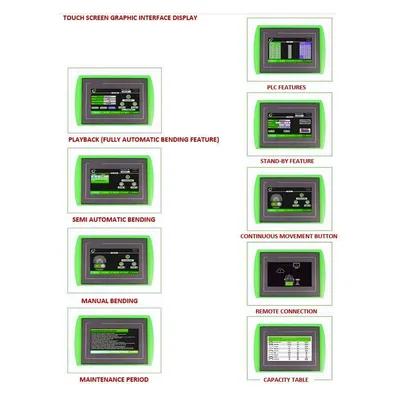

*CNC Unit: Provides precise control and automation for complex tasks.
*Rear Laser Emergency Stop Barrier: Enhances safety with a laser-activated emergency stop system.
*Variable Speed Feature: Allows adjustable speed settings to match different operational needs.
*Overhead Top Support: Offers additional stability and support for materials.
*Hydraulic Side Supports (Both Sides): Ensures secure material handling and stability during operation.
*Material Feeding Table: Facilitates smooth and efficient material input.
*Material Output Table: Provides a convenient platform for material discharge.

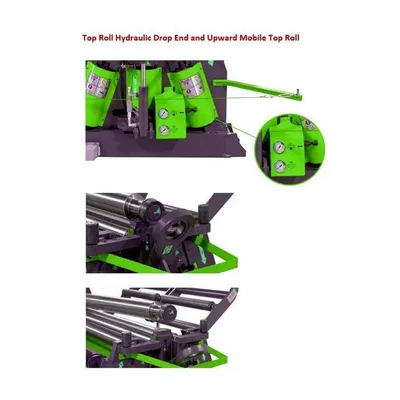

*Changeable Top Roll: Allows for easy customization and replacement of top rolls.
*Multi-Color Options: Provides aesthetic customization with various color choices.
*Custom Logo Application with Laser Cutting: Enables personalized branding through precise laser-cut logos.
