USED SOUTH BEND HEAVY 10

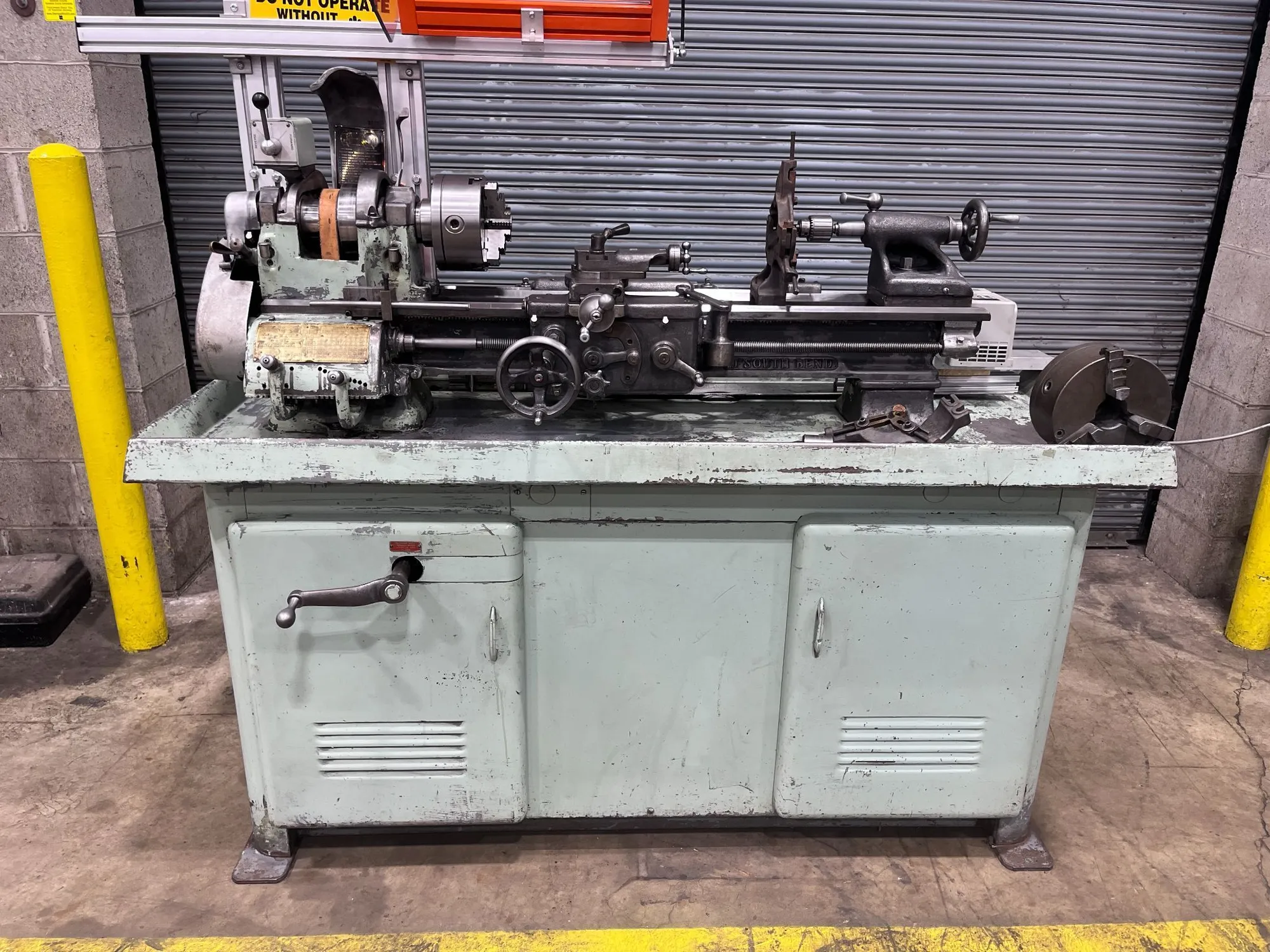

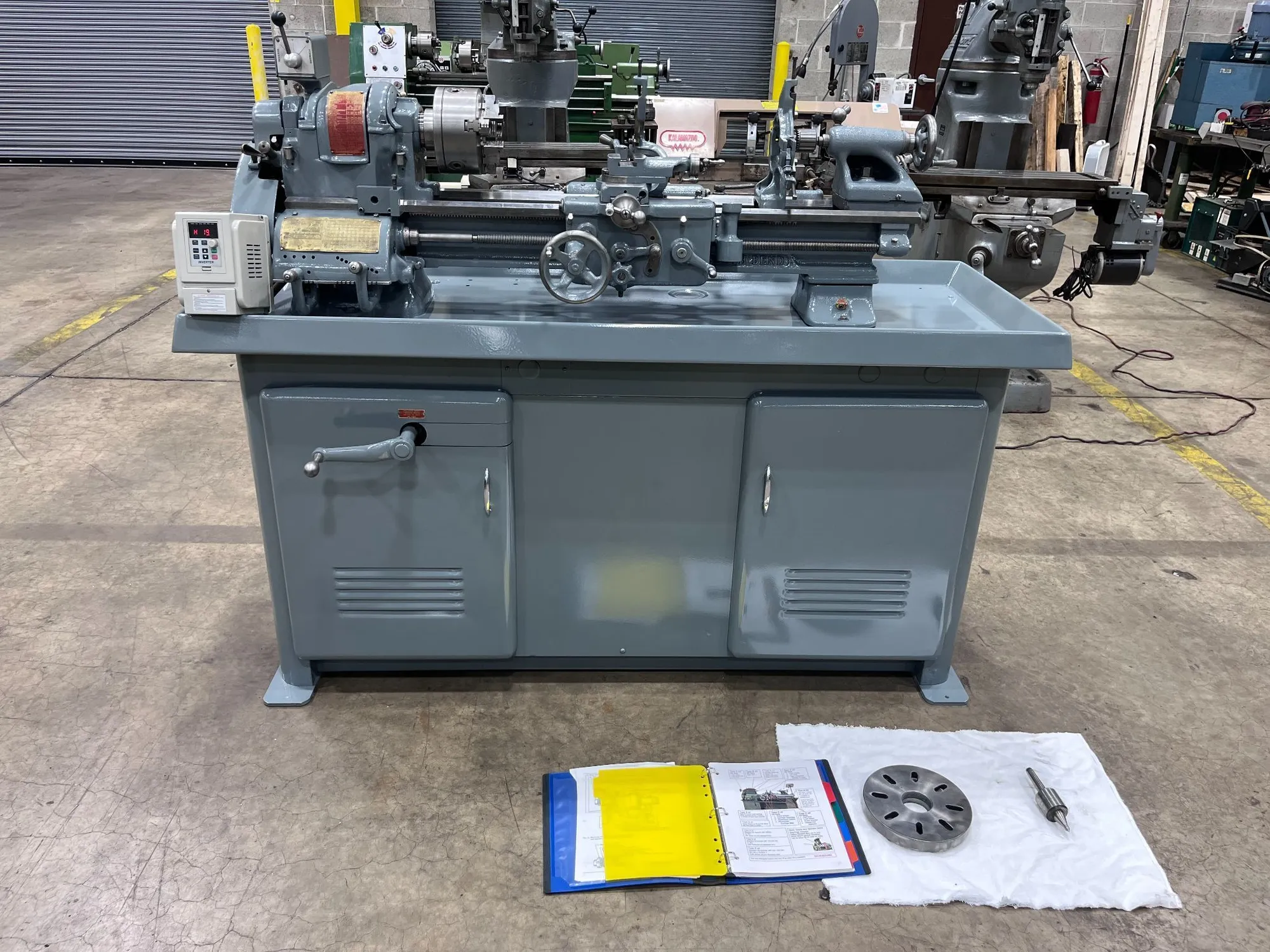

10” x 34” South Bend “ Heavy Ten” Engine Lathe, Cat. # CL -8187AB, 4’ Bed
S/N 12923RKX16, Single Phase Thru VFD

To View under Power Follow the Link Below
https://youtu.be/9bnWK0PiYzQ

Machine Description:

Swing 10”
Swing over Slide 5.75”
Center Distance 34”
Spindle Bore 1-3/8”
HP 1 220 Volt 3 Phase, With Inverter for 115 Volt Operation
Mount 2-1/4” – 8 TPI
Speeds 50-1350, Variable between via Inverter
Threads 4 – 480 TPI
Feeds .0007 - .0856IPR
Tail Stock taper 2 MT
Tail Stock Travel 4”
