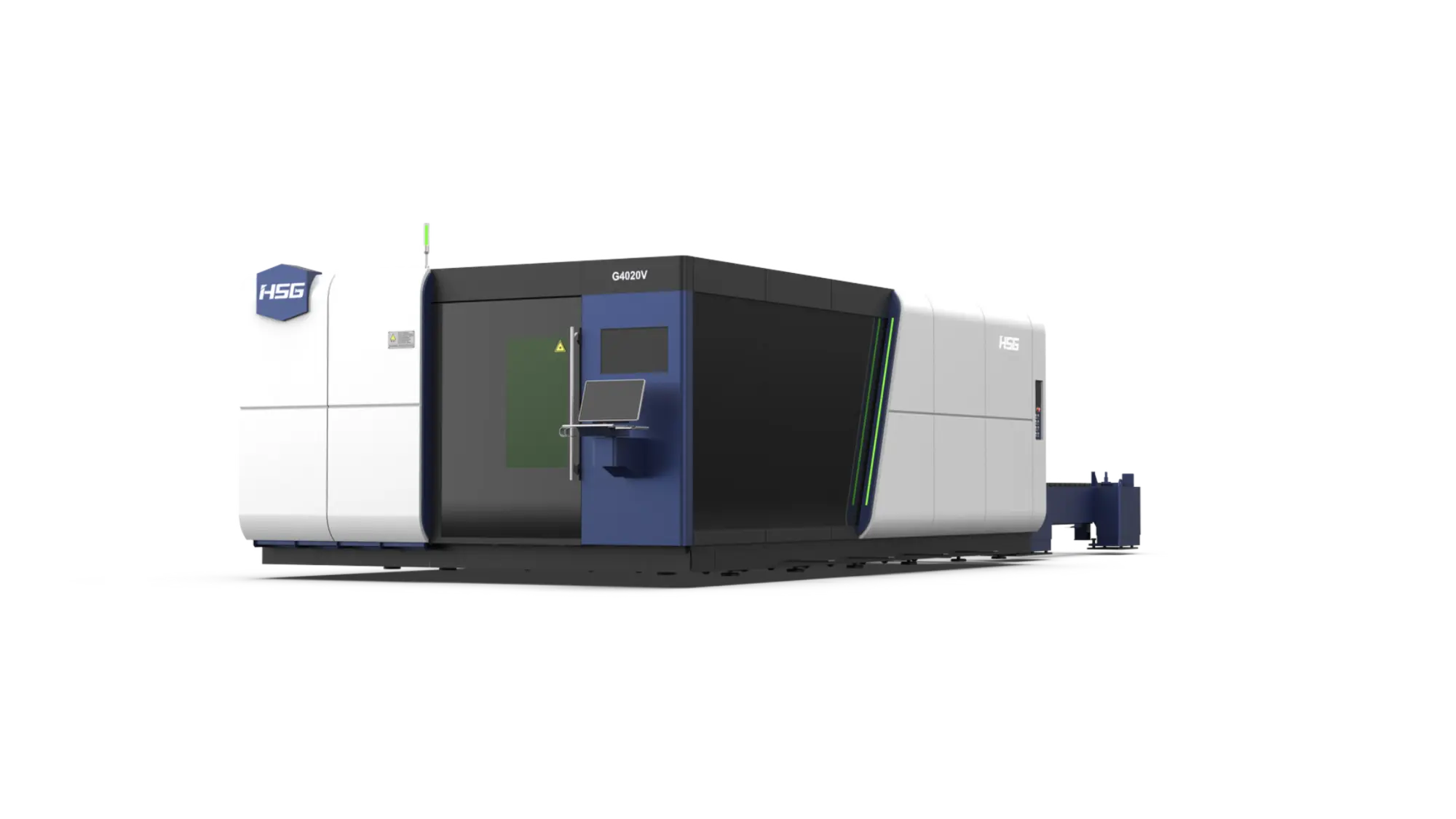

NEW HSG G3015LA30
Overview
New HSG G3015LA30 coil-fed fiber laser cutting machine with 3-6 kW power, a 118.1 x 59.1 in cutting window, 1.5G acceleration and 492 ft/min linkage speed. This continuous laser blanking line combines uncoiling, leveling, feeding, cutting and unloading for high-volume sheet-metal parts without dedicated stamping dies. Configured to order with installation, training and factory-trained service from MacLean.
Specs
HSG G3015LA30 - TECHNICAL SPECIFICATIONS
Manufacturer: HSG Laser
Model: G3015LA30
Series: GL Series
Condition: New
Machine type: Coil-fed fiber laser cutting and blanking system
Laser power range: 3-6 kW
Cutting window: 118.1 x 59.1 in
Cutting window (metric): 3000 x 1500 mm
Maximum linkage speed: 492 ft/min (150 m/min)
Maximum linkage acceleration: 1.5G
Integrated process: Uncoiling, leveling, feeding, laser cutting and unloading
Cutting modes: Single-head standard; multi-head configurations available depending on application
Optional handling: Multi-coil uncoiling and customized loading/unloading
Materials and thickness: Confirmed by coil specification, laser power and final line configuration
Control: HSG CNC platform; final version confirmed with quote
Availability: Configured and built to order
Installation and training: Included
Service: Direct service and repair by HSG factory-trained MacLean technicians
Warranty: Included; exact coverage is supplied with the final written quotation.
Specifications and options are subject to the final engineered configuration and quotation.
Equipped With
Coil loading trolley; Uncoiler; Leveling and servo feeding system; Enclosed fiber laser cutting cell; Continuous unloading conveyor; Dynamic FlashCut drive system; HSG nesting software; Optional dual-head, triple-head or four-head cutting; Optional multi-coil uncoiling module; Matched dust collection and assist-gas package available
