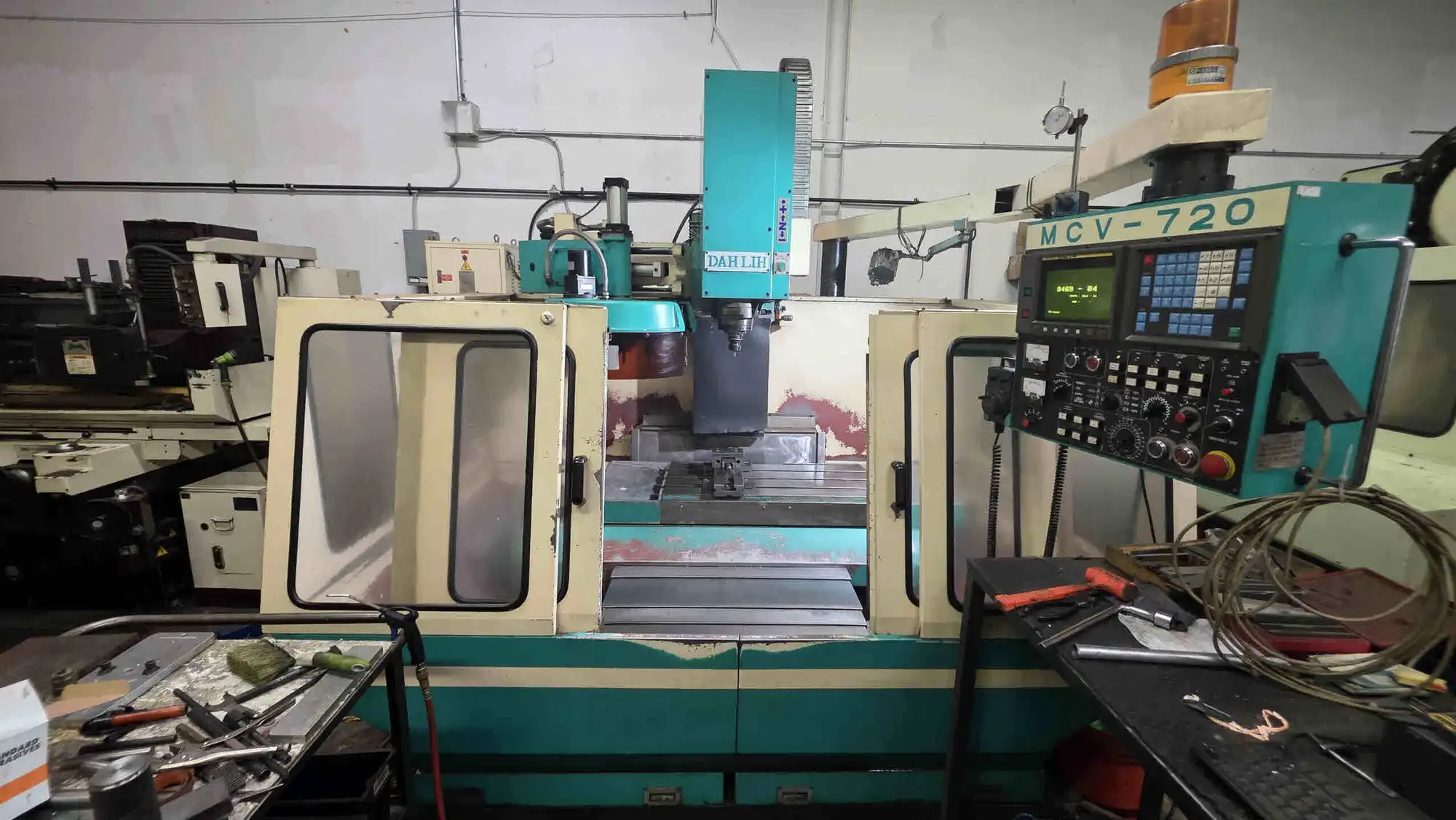

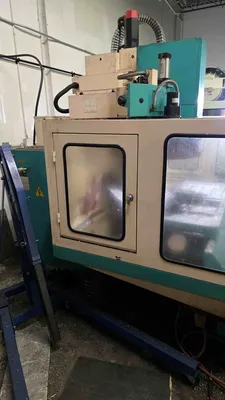

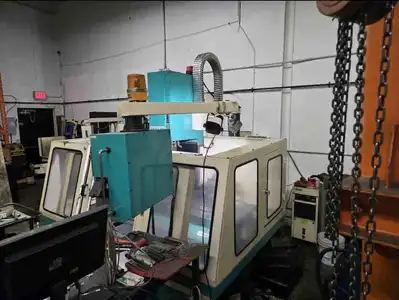

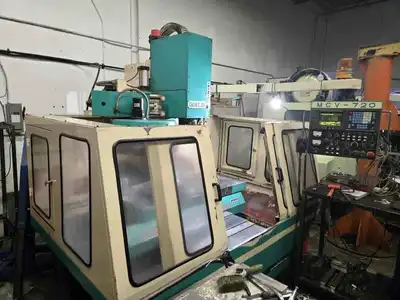

USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720
  • USED 1995 DAH LIH MCV-720

USED 1995 DAH LIH MCV-720

Safety note

Buying from non-Pro sellers
Non-Pro sellers can be individuals or smaller businesses. Equipt does not verify every seller or inspect every item. Confirm who you're dealing with, ask for recent photos or video, and only pay through secure, traceable methods.

This seller is not an Equipt Pro dealer. Equipt does not inspect items, handle payment or guarantee transactions. Verify the seller and equipment before sending funds.

How to stay safe with non-Pro sellers

Equipt connects buyers and sellers of industrial equipment. We don't own the machines, inspect them in person or process payment for you, so it's important to do your own checks—especially with sellers who are not using Equipt Pro.

Before you commit:
  • Confirm the seller's business name, address and contact details
  • Ask for recent photos or video of the equipment running, including serial plates
  • Request invoices, maintenance records or proof of ownership when appropriate
  • Compare pricing against similar listings to spot offers that look too good to be true
When paying:
  • Use secure, traceable payment methods (no cash or untraceable transfers)
  • Be cautious if a seller pressures you to move very fast or change payment details last minute
  • If anything feels off, pause the transaction and contact Equipt support before proceeding

Taking a few extra steps up front greatly reduces the risk of scams and helps keep the Equipt marketplace safe for everyone.

Overview
Type:
Vertical Machining Centers
Manufacturer:
DAH LIH
Model:
MCV-720
Year:
1995
Description

Machine is in Excellent Condition & Ready For Inspection.

Specifications
X28.3"718.82 mm
Y18.1"459.74 mm
Z20.1"510.54 mm
Power7.5 kW10.1 hp
RPM6,000 RPM6,000 RPM
# ATC2424
TaperBT-40BT-40
Table-W22"558.8 mm
Table-L37.4"949.96 mm
# Axis33
ControlCNC (Fanuc Series O-M)CNC (Fanuc Series O-M)
Dimensions126”L x 110”W x 114”H126”L x 110”W x 114”H
Weight10,000 Lbs10,000 Lbs

Specifications:

Model - MCV-720
Year - 01/1995

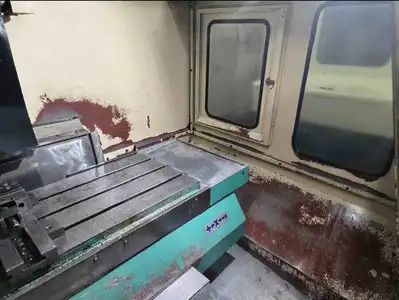

Table Size - 22” x 37.4”
X Axis Travel - 28.3”
Y Axis Travel - 18.1”
Z Axis Travel - 20.1”
ATC - 24
Spindle Taper - BT-40
Max Spindle Speed - 6000 RPM
Max Load On Table - 1100 LBS
Rapid Travel (X&Y) - 30 M/MIN
Rapid Travel (Z) - 20 M/MIN
Control - Fanuc
Spindle Motor - 7.5 KW
Voltage - 220V/3PH/60HZ
Made In - Taiwan
Approx. Weight - 10,000 LBS
Approx. Overall Dimension - 126”L x 110”W x 114”H

Equipped With:

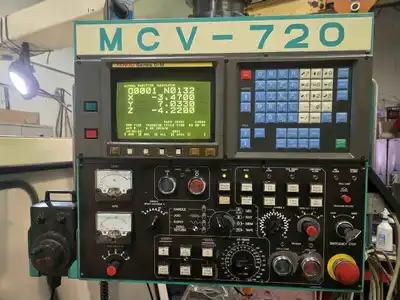

Fanuc Series O-M CNC Control
Hand Pendant
Spindle Chiller Unit

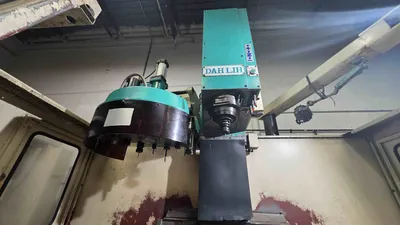

24 ATC (Umbrella Type)
Coolant System
Work Light
Fully Enclosed
