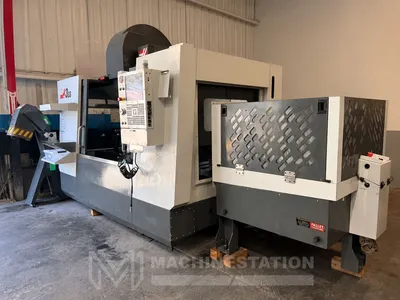

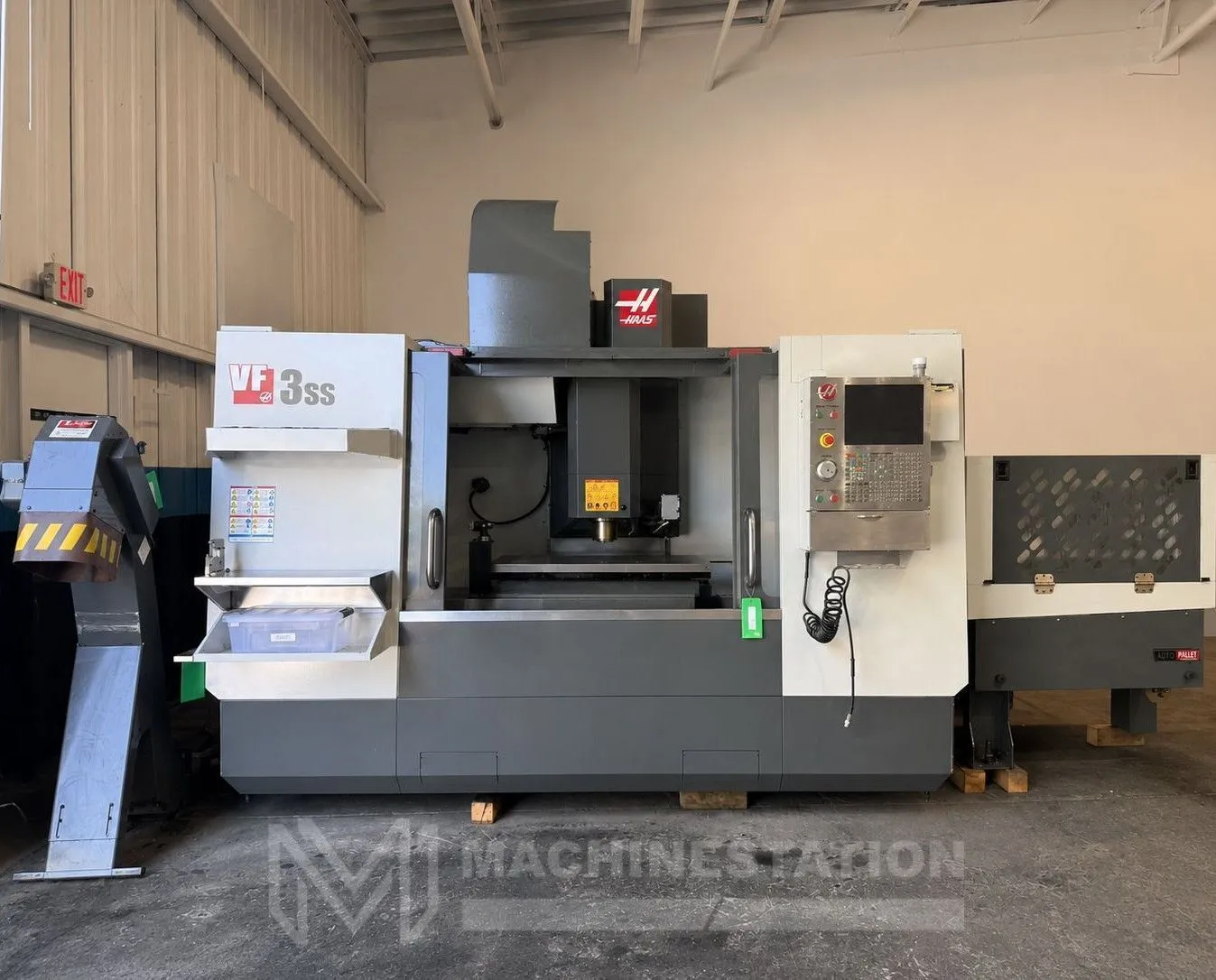

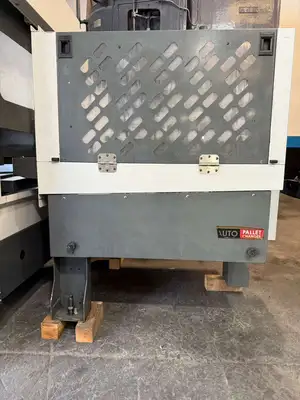

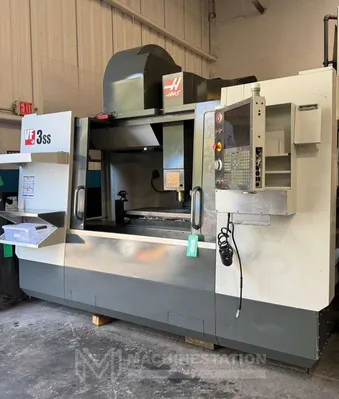

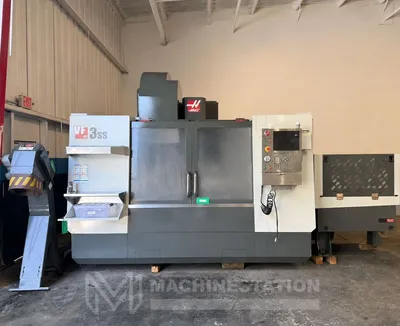

USED 2013 HAAS VF-3SSAPC

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Key Features:
Haas CNC Control
30 HP High Torque Spindle
1400 IPM Fast Rapid Traverse
Rigid Tapping
Spindle Orientation

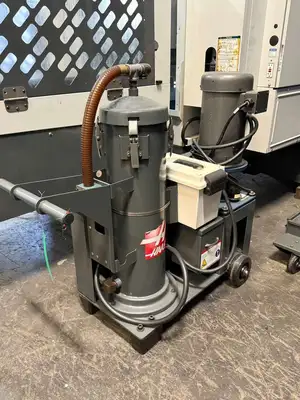

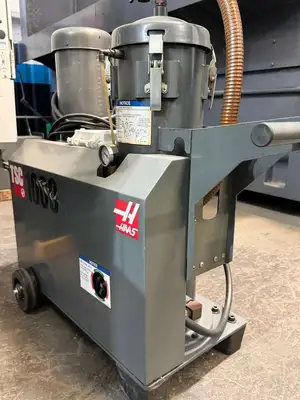

Coolant System

Travel:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1400 Inch Per Minute
Cutting Feed Rates: 833 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″

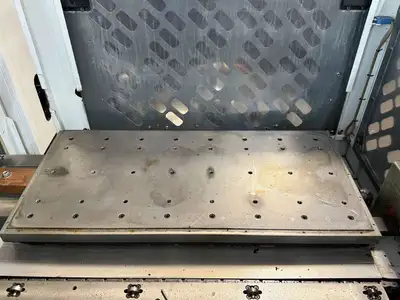

Table:
Length: 48″
Width: 18″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1750 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

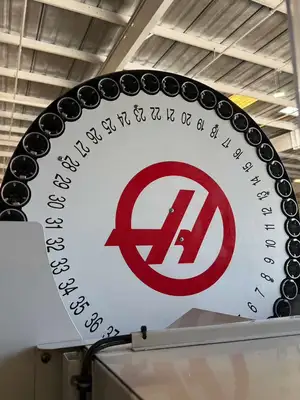

Automatic Tool Changer:
Capacity: 40 Tools
Max Tool Weight: 12 lbs
Max Tool Dia: 2.5″ – 5.0″
Max Tool Length: 13″
Tool Changing Time: 1.80 Seconds

General:
Air Required: 100 psi 4 scfm

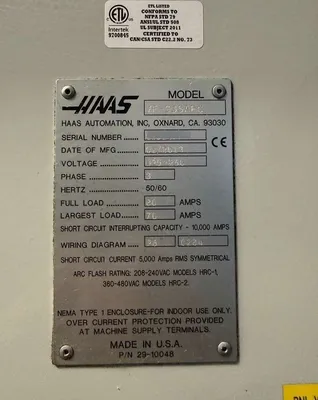

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 152″ x 99″ x 106″ High (Without APC)
Weight: 11,720 lbs Approx.
