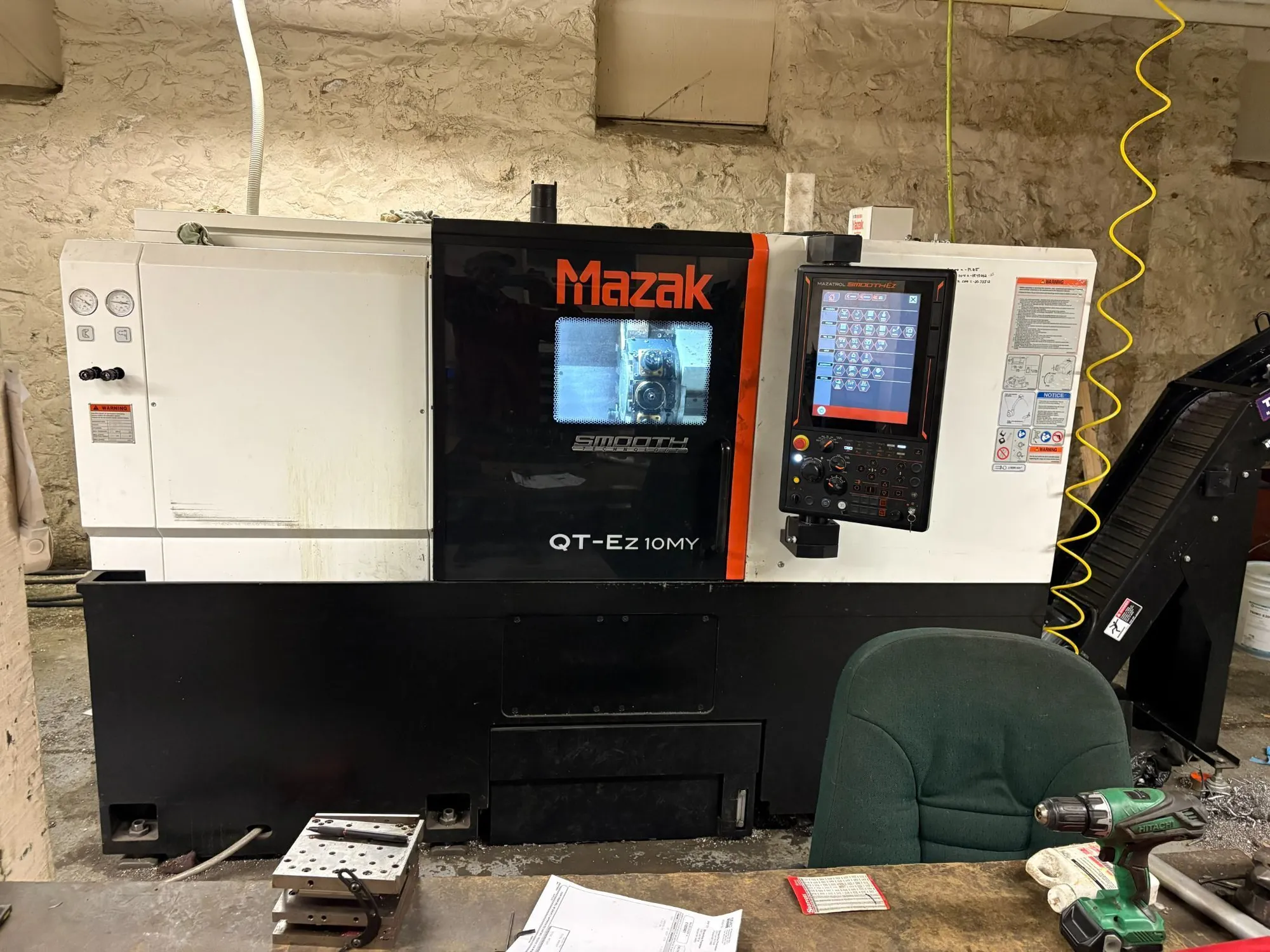

USED 2022 MAZAK QT-EZ 10 MY
Overview
Description
Mazak QT-EZ 10MY, 2022,. Features 27.4" swing, Y-Axis, 10" chuck, 3" bar capacity. Equipped with Mazak SmoothEZ CNC, live tooling, 12-tool turret, tailstock, and chip conveyor. Ideal for precision machining tasks.
Specifications
| Swing | 27.4" | 695.96 mm |
|---|---|---|
| # Axis | 0 | 0 |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
Specifications QT-Ez 10MY
New 2022 with only 1,737 Cutting Hours
Capacity Maximum Swing 27.4"
Maximum Machining Diameter 13.5"
Standard Machining Diameter 9.25"
Maximum Bar Work Capacity 3.0"
Maximum Support Weight (Chuck) 200 lbs
Maximum Support Weight (Shaft Work 1,100 lbs
Maximum Machining Length (500U) 20.2"
Main Spindle Chuck Size 10"
Maximum Speed 4,200 rpm
Maximum Speed of STD Chuck 4,200 rpm
Motor Output (30 minute rating) 20 hp
Spindle Torque (Max) ft-lbs / N-m 123 / 167
Spindle Nose A2-6
Turret Number of Tools Number 12
Live Tooling Maximum Speed 6,000 rpm
Motor Output (10 minute rating) hp/kw 7.5 / 5.5
Feed Axes
Travel (X Axis) in/mm 8.5 / 215
Travel (Y Axis) in/mm 4 / 100
Travel (Z Axis) in/mm 25 / 635
Dimensions
Machine Depth 75 "
Machine Length 109.1 "
Machine Height 67.9"
Machine Weight 12,000 lbs
Equipped With
Mazak SmoothEZ CNC Control
Tool Pre-setter
Live Tooling with 6 Live Holders
12 Position Drum Turret
Y-Axis
Tailstock
Chip Conveyor
Inspect Under Power with only 1,737 Cutting Hours
