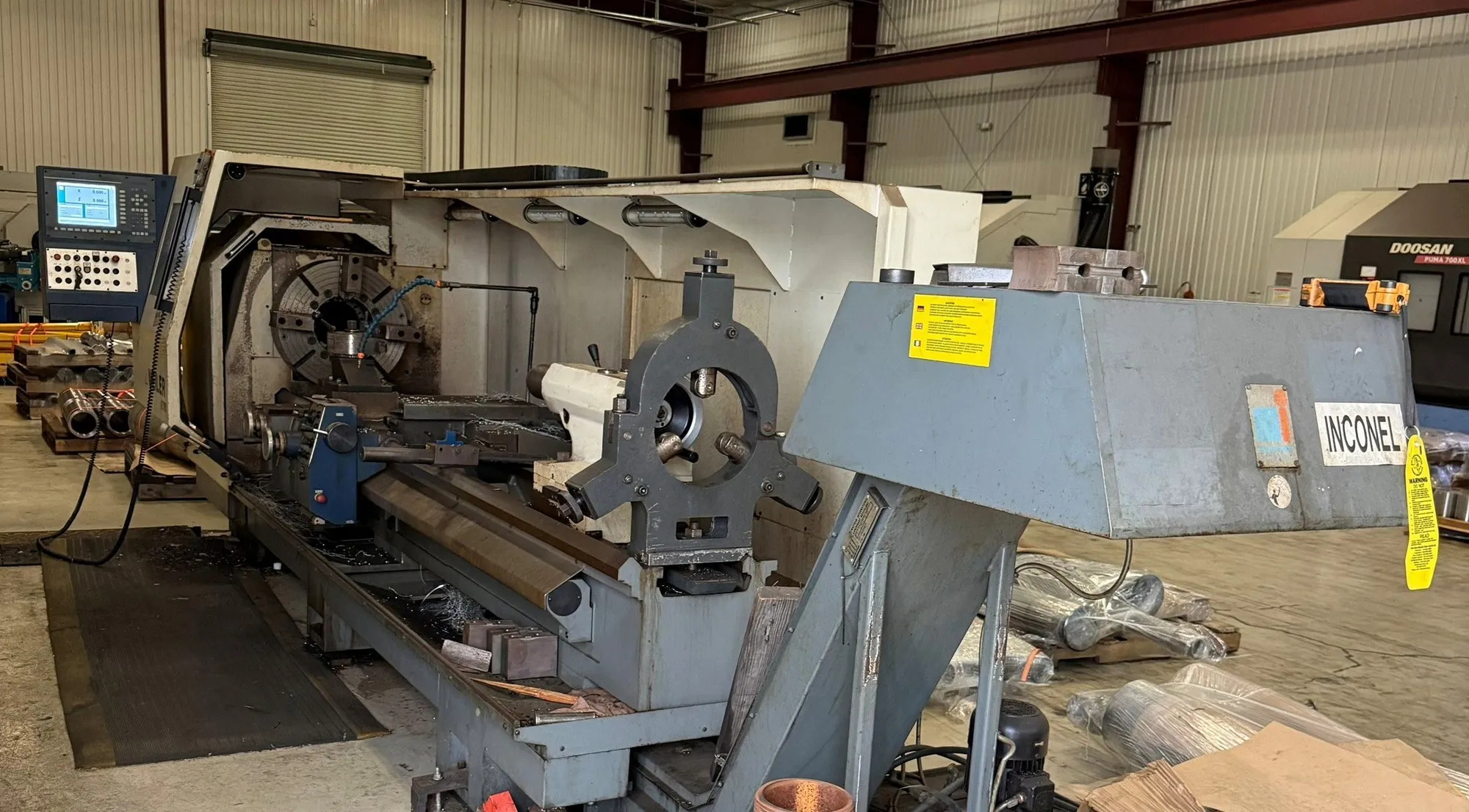

2012 WEILER E 70/3000 CNC Flatbed Turning Center, used condition, featuring WEILER CNC control, 28.3" swing, 118" machining length, 16.5" turning dia., 50 hp, 1,200 RPM, 2-axis, threading capability, and equipped with chip conveyor, steady rest, and more.
| Swing Over Bed | 28.3" | 718.82 mm |
| Machining Length | 118" | 2,997.2 mm |
| Turning Diameter, Shaft Diameter | 16.5" | 419.1 mm |
| Chuck Size 1 | 24" | 609.6 mm |
| Spindle Nose 1 | DIN ISO 702 1, Size 15 | DIN ISO 702 1, Size 15 |
| Spindle Bore Diameter 1 | 8.5" | 215.9 mm |
| Spindle Bar Capacity 1 | 8.5" | 215.9 mm |
| Spindle Speeds 1 | 1,200 RPM | 1,200 RPM |
| Spindle Horsepower 1 | 50 hp | 37.3 kW |
| X1 - Axis Travel | 16.1" | 408.94 mm |
| Z1 - Axis Travel | 118" | 2,997.2 mm |
| Rapid Traverse Rate - X1 | 197 in/min. | 83.4 mm/sec. |
| Rapid Traverse Rate - Z1 | 394 in/min. | 166.8 mm/sec. |
| Spindle Torque | -2331 | -2331 |
| Gear Ranges | 2 | 2 |
| Tailstock Quill Diameter | 4.5" | 114.3 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 8.85" | 224.79 mm |
| # Axis | 2 | 2 |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (WEILER) | CNC (WEILER) |
| Weight | 17,160 | 17,160 |
WEILER CNC CONTROL
HAND HELD MPG

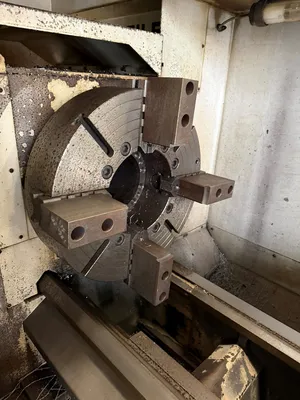

FRONT AND REAR 24" 4 JAW CHUCKS WITH 10.5" THROUGH HOLE

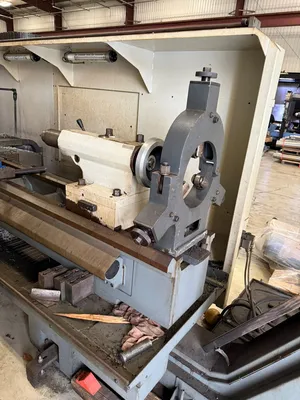

STEADY REST
• THREADING CAPABILITY
o Metric: 0.1–2000 mm
o Inch: 112–1/64 TPI
o Modular: 0.05–56 mm
o Diametral: 448–0.05 DP
• Max Thread Courses: 360
CHIP CONVEYOR
ALL AVAILABLE TOOL HOLDERS
ALL AVAILABLE MANUALS
