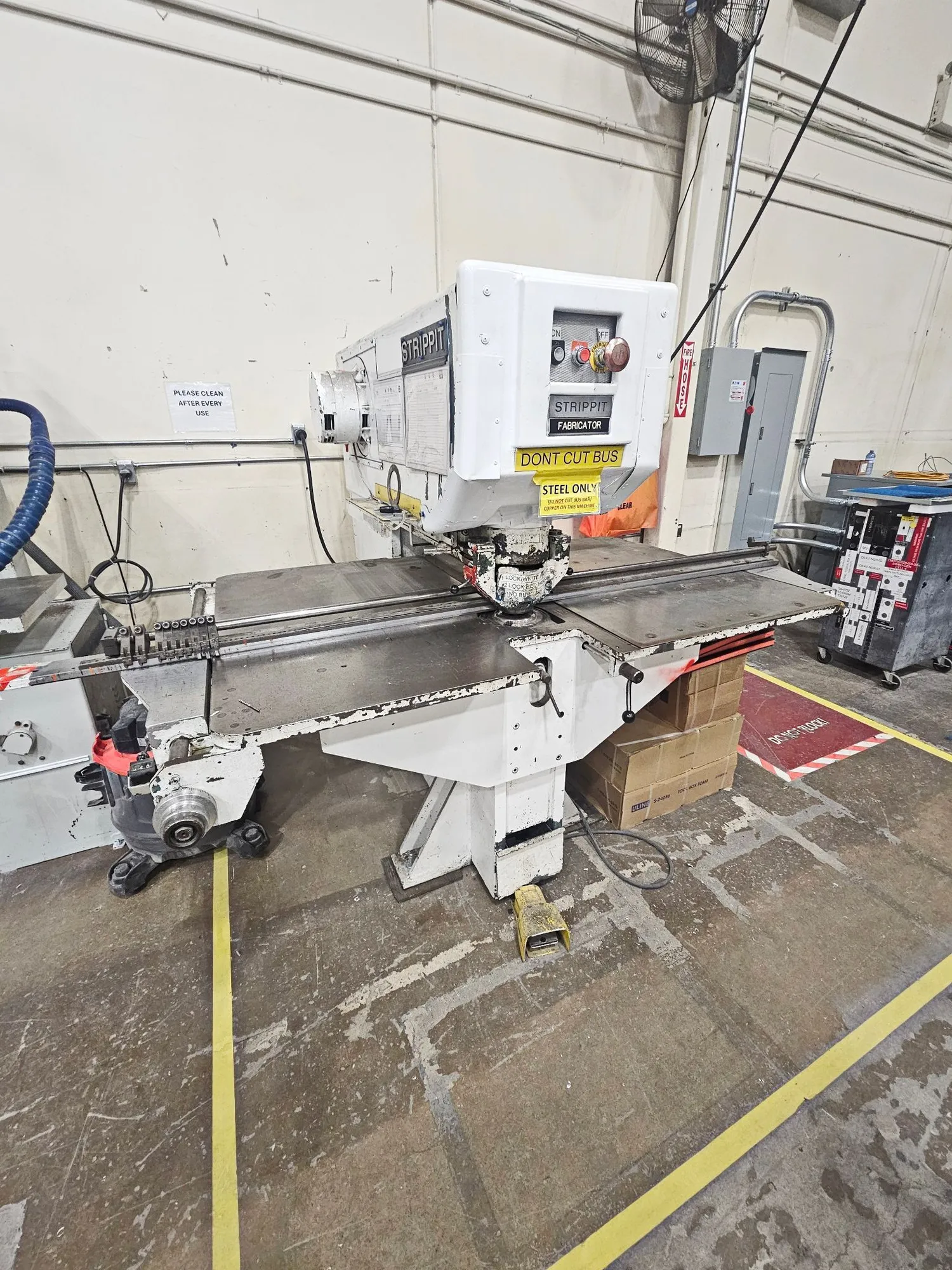

Strippit Super 30/40 Turret Punch Press, 40 Ton, Electro-Hydraulic Punching Head, Lead Screw Back Gauge, Quick-Change / Eject Tooling Capability, Indexable Punching Head, Microbar And Scale Side Gauge
| Tonnage | 40 T | 36.287 t |
| Std. Scale Gaging Sheet Size | 30" X 38" | 30" X 38" |
| Std. Microgaging Sheet Size | 30" X 31" | 30" X 31" |
| Max Duplicator Pattern Size | 30" X 30" | 30" X 30" |
| Press Stroke | 0.625" | 15.875 mm |
| # Turret Stations | 1 station | 1 station |
| Max Material Thickness | 0.25" | 6.35 mm |
| Throat Depth | 5.41" | 137.41 mm |
| Max Hole Diameter | 5" | 127 mm |
| Max Hole Dia W/ Shear | 2" - 0.25" MS / 5" - 10 Ga. MS | 2" - 0.25" MS / 5" - 10 Ga. MS |
| Stroke Rate | 185 SPM | 185 SPM |
| Power | 1.5 hp | 1.1 kW |
| Adjustable Table Capacity | 2.5" Max | 2.5" Max |
| Punching Accuracy | ±0.005" | ±0.005" |
| Made In | United States | United States |
| Dimensions | 82" X 48.5" X 71.25" | 82" X 48.5" X 71.25" |
| Weight | 6,800 lb | 6,800 lb |
Electro-hydraulic punching head
Quick-change/eject tooling capability
Adjustable worktable
Lead screw back gauge
Microbar & scale side gauge
Adjustable finger/gauge stops
Indexable punching head
Die elevator
Front & side work support tables
Foot pedal operation
