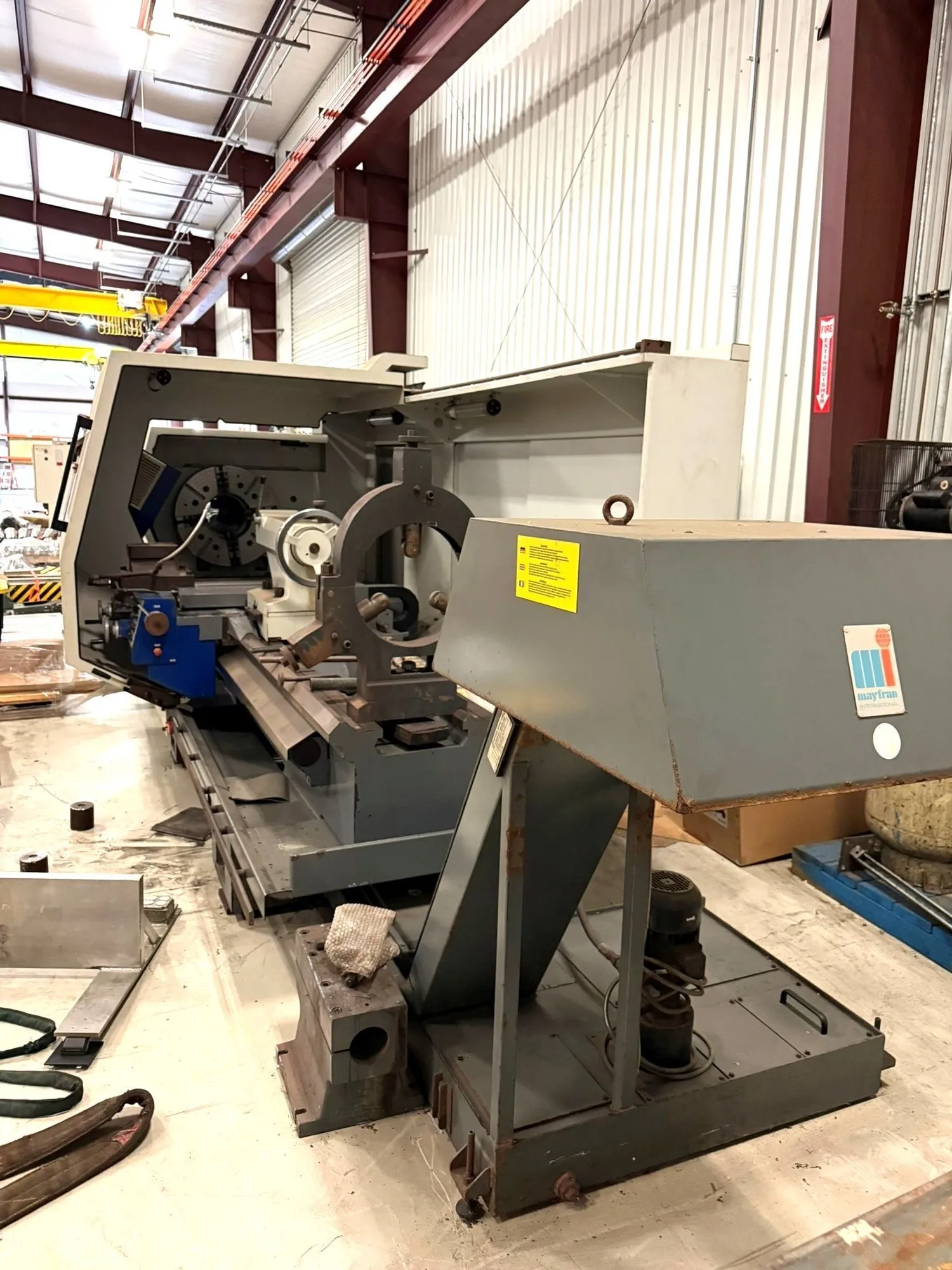

Explore precision with the used 2012 WEILER E90 3000 CNC Lathe. Features include 35.43" swing, 118" machining length, dual 32" chucks, and a 10.3" spindle bore. Equipped with WEILER control, STEADY REST and LONG BORING BAR ATTACHMENT. Perfect for advanced machining.
| Swing Over Bed | 35.43" | 899.92 mm |
| Machining Length | 118.11" | 3,000 mm |
| Turning Diameter, Shaft Diameter | 23" | 584.2 mm |
| Chuck Size 1 | 32" | 812.8 mm |
| Spindle Nose 1 | DIN ISO 702 - 1 (DIN55026) SIZE 20 | DIN ISO 702 - 1 (DIN55026) SIZE 20 |
| Spindle Bore Diameter 1 | 10.3" | 261.62 mm |
| Spindle Bar Capacity 1 | 10.3" | 261.62 mm |
| Spindle Speeds 1 | 700 RPM | 700 RPM |
| Spindle Horsepower 1 | 60 hp | 44.7 kW |
| Chuck Size 2 | 32" | 812.8 mm |
| X1 - Axis Travel | 23.23" | 590.04 mm |
| Z1 - Axis Travel | 230" | 5,842 mm |
| Rapid Traverse Rate - X1 | 197 in/min. | 83.4 mm/sec. |
| Rapid Traverse Rate - Z1 | 394 in/min. | 166.8 mm/sec. |
| Spindle Torque | 4400 | 4400 |
| Gear Ranges | 2 | 2 |
| Tailstock Quill Diameter | 5.51" | 139.95 mm |
| Tailstock Taper | MT 6 | MT 6 |
| Tailstock Quill Travel | 11.81" | 299.97 mm |
| # Axis | 2 | 2 |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'No' | 'No' |
| Sub Spindle | 'No' | 'No' |
| Control | CNC (WEILER) | CNC (WEILER) |
| Weight | 24,250 | 24,250 |
ELECTRICAL & CONTROL
• Control Type: WEILER Teach In / Cycle Control
• Power Requirements: 400–480V, 3 phase
• Drive System: AC vector drive with gearbox
HAND HELD MPG
MANUAL STEADY REST
BORING BAR CROSS SLIDE ATTACHMENT
FRONT AND REAR 32" 4 JAW MANUAL CHUCK WITH 12.5" HOLES
10.3" THROUGH BORE
MANUAL TURNING
THREADIDING CYCLES
• Threading Capability:
o Metric: 0.1–2000 mm
o Inch: 112–1/64 TPI
o Modular: 0.05–56 mm
o Diametral: 448–0.05 DP
• Max Thread Courses: 360
CHIP CONVEYOR
