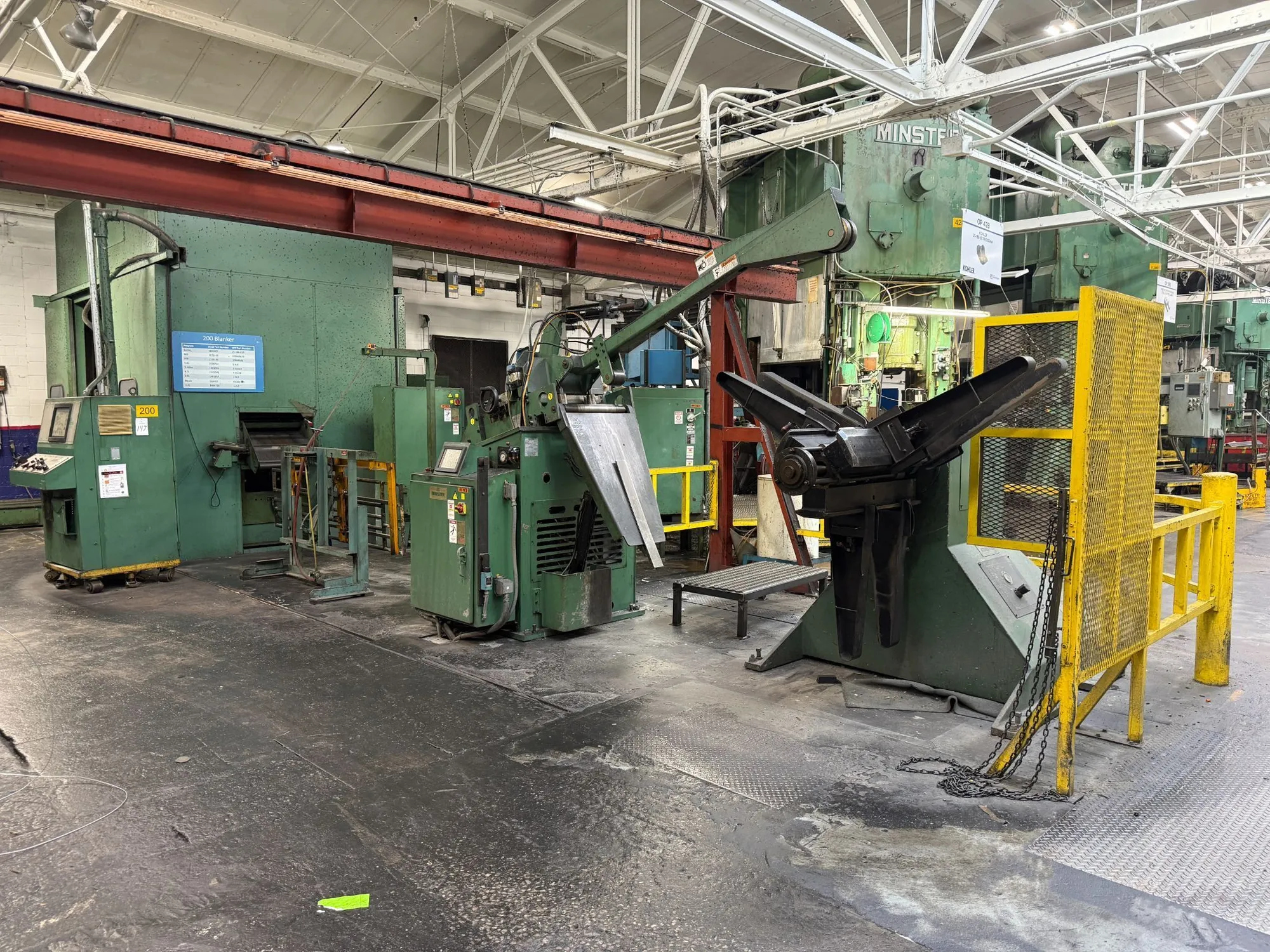

USED 2000 MINSTER MRH10-26S / MSH20-20-7 / MEMF5-20S
Overview
Description
20" wide x 10,000lbs Minster Conventional Coil Feed Line (Right to Left)
Stock Capacity: 20" wide x 0.110" thick
.......................... 5" wide x 0.200" thick
Specifications
| Coil Weight Capacity | 10,000 lb | 4,535.9 kg |
|---|---|---|
| Stock Width Capacity | 20" | 508 mm |
| Max Stock Thickness Capacity at Full Width | 0.11" | 2.794 mm |
| Minimum Expansion Range | 18" | 457.2 mm |
| Maximum Expansion Range | 22" | 558.8 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
Coil Weight Capacity: 14,000 lbs
Model: MRH10-26S / MSH20-20-7 / MEF5-20S
Serial #: 1370753 / 1350662 / 18-50979
Year of Manufacture: 2000
Coil Width Capacity: 20”
Stock Thickness Capacity: 20” wide x 0.110” thick material
Max. Capacity: 5” wide x 0.200” thick
Min. stock Thickness: 0.020” x 20” wide
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right to Left
Equipped With
MINSTER Coil Reel - Model: MRH10-26S / SN: 1370753
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Fail-safe brake during power off / loss
Jog drive for threading
MINSTER Powered Coil Straightener - Model: MSH-20-20-7 / SN: 1350662
Seven straightening rolls
Individual upper straightening roll adjustments
Individual upper roll adjustments
Pinch rolls with air operated adjustments
Stock peeler table
Adjustable stock width edge guides
Coil Hold Down Arm with End Wheel
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations
Jog forward and reverse
MINSTER Electronic Roll Feed - Model: MEF5-20S / SN: 18-50979
5” diameter Feed Rolls
Min Thickness: 0.020”
Max. Thickness: 0.250” @ 12” wide
Max. Width: 0.187” @ 20” wide
Cabinet Mounted
ROWE Thread Table - Model: PTS-30 / SN: 26756
Capacity: 30" wide
