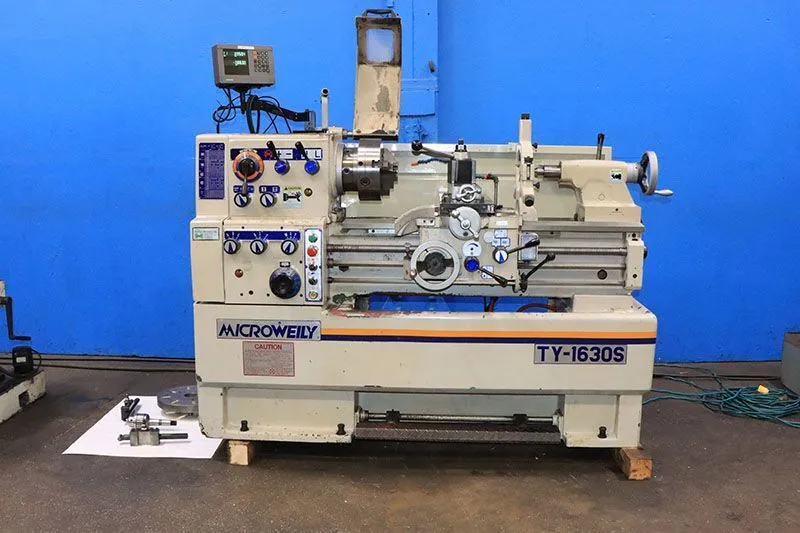

USED 2004 MICROWEILY TY-1630S

2004 MICROWEILY TY-1630S engine lathe in used condition. Features 16"/23.4" swing, 30" center distance, 12-speed spindle, inch/metric threading, and Heidenhain digital readouts. Equipped with chuck, faceplate, steady rest, tool post, and more.

SWING OVER BED......................... 16.14"
SWING OVER CROSS SLIDE................. 9.4"
SWING IN GAP........................... 23.42"
LENGTH OF GAP IN FRONT OF FACE PLATE... 6.1"
DISTANCE BETWEEN CENTERS............... 30"
WIDTH OF BED .......................... 11.81"
SPINDLE BORE........................... 2.04"
SPINDLE NOSE........................... D1-6
SPINDLE SPEEDS (12 SPEEDS)............. 30 TO 2,000 RPM
INCH THREADING RANGE .................. 2 - 56 TPI
METRIC THREADING RANGE ................ .4 - 7 mm
CROSS FEED RANGE (40) ................. .0006 - .0126 IPR
LONGITUDINAL FEED RANGE (40) .......... .0012 - .0252 IPR
TAILSTOCK QUILL DIAMETER............... 2.12"
TAILSTOCK QUILL TRAVEL................. 5.11"
TAILSTOCK TAPER........................ 4 MT

- INCH & METRIC THREADING CAPABILITY
- HEIDENHAIN 2-AXIS NEWALL DIGITAL READOUTS
- 3-JAW CHUCK
- FACEPLATE
- STEADY REST
- ALORIS MODEL: CA QUICK CHANGE TOOL POST
- DEAD CENTER FOR TAILSTOCK
- JACOBS DRILL CHUCK FOR TAILSTOCK
- THREAD DIAL INDICATOR
- FOOT BRAKE
- COOLANT SYSTEM WITH REMOVABLE CHIP PAN
- 5 HORSE POWER MAIN MOTOR
