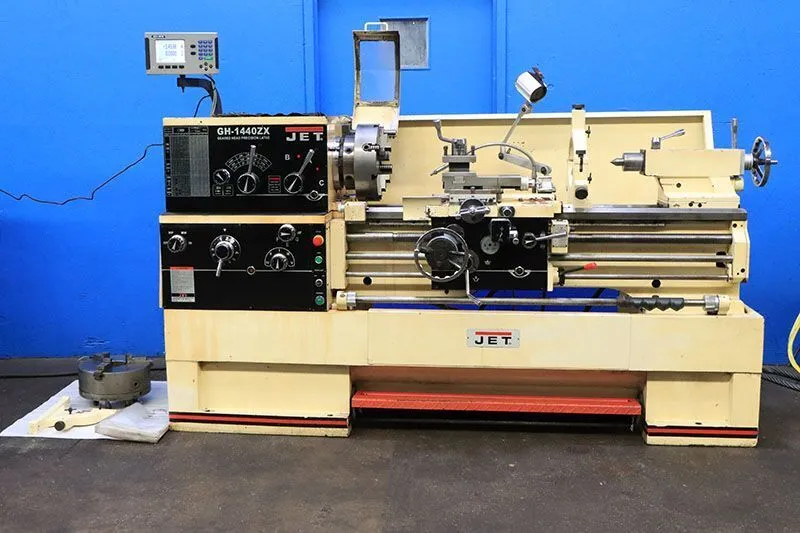

USED 2012 JET GH-1440 ZX
Overview
2012 JET GH-1440 ZX gap bed lathe with a 14" swing and 40" between centers. Features ACU-RITE 200S digital readout, removable gap, inch/metric threading, 7.5 HP motor, 4-jaw and 3-jaw chucks, and coolant system.
Specs
SWING OVER BED ........................ 14"
SWING OVER GAP ........................ 23-5/8"
SWING OVER CROSS SLIDE ................ 7-5/8"
DISTANCE BETWEEN CENTERS .............. 40"
SPINDLE HOLE .......................... 3-1/8"
SPINDLE NOSE, CAMLOCK, SIZE ........... D1-8"
WIDTH OF BED .......................... 13-3/8"
SPINDLE SPEEDS (12) ................... 42 - 1,800 RPM
FEED CHANGES, LONGITUDINAL (122) ...... .0015 - .0913 IPR
FEED CHANGES, CROSS (122) ............. .0006 - .0365 IPR
THREADS, INCH (61) .................... 1-5/8 - 72 T.P.I.
METRIC (24) ........................... .5 - 20 MM
WIDTH OF BED .......................... 13-3/8"
TAILSTOCK SPINDLE CENTER .............. #4 MORSE TAPER
TAILSTOCK SPINDLE TRAVEL .............. 5"
APPROXIMATE DIMENSIONS ................ 96" x 40" x 48"
APPROXIMATE WEIGHT .................... 5,500 LBS.
Equipped With
- ACU-RITE MODEL: 200S TWO AXIS DIGITAL READOUT
- REMOVABLE GAP BED
- INCH AND METRIC THREADING CAPABILITY
- HARDENED AND GROUND BED WAYS
- 12" 4-JAW CHUCK
- 12" 3-JAW CHUCK
- STEADY REST
- FOLLOW REST
- FOURWAY TURRET TOOLPOST
- THREADING DIAL
- MICROMETER CARRIAGE STOP
- MULITPLE POSITION CARRIAGE STOP
- FOOTBRAKE
- SELF-CONTAINED COOLANT SYSTEM W/FULL LENGTH SPLASH GUARD
- 7-1/2 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
