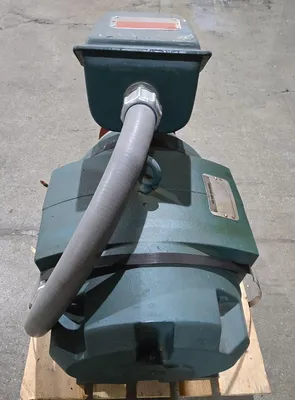

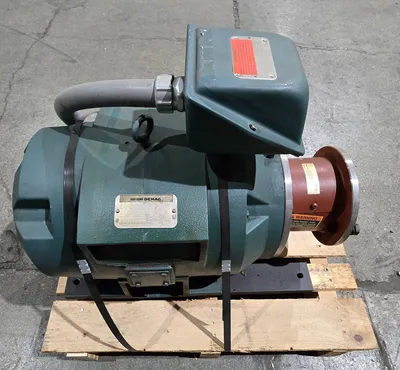

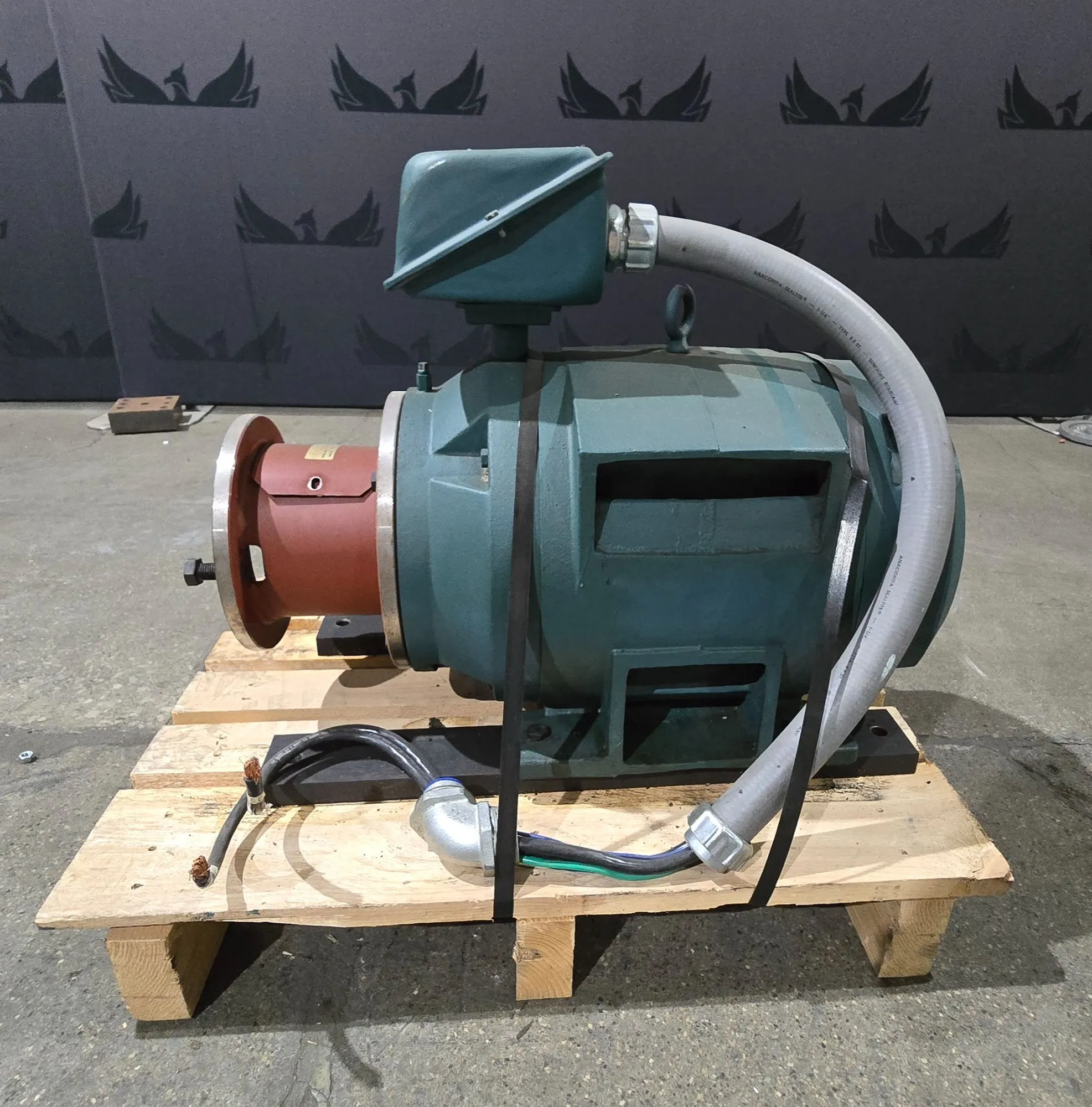

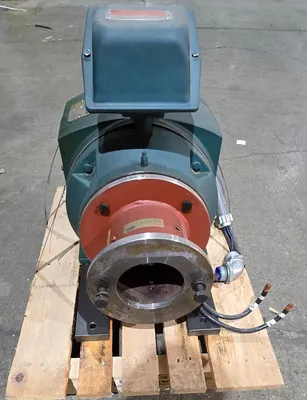

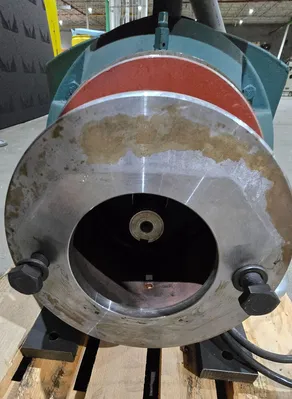

USED VAN DORN DEMAG P28G7064A
Overview
Description
This listing is for a USED Van Dorn Demag P28G7064A. This unit is designed to serve as a 3-phase AC electric motor for driving industrial machinery and equipment where consistent rotational power is required. This unit provides 20 HP output, 230/460V operation, 3-phase power, and 1180 RPM speed, supporting continuous-duty operation in mechanical drive systems requiring reliable torque and motor-driven motion.
Specifications
| Dimensions | 24X32X28 | 24X32X28 |
|---|---|---|
| Weight | 452LBS | 452LBS |

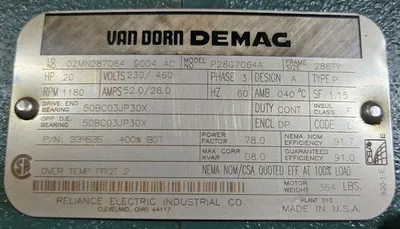

Manufacturer: Van Dorn Demag (Reliance Electric)
Model: P28G7064A
Condition: USED
YOM: n/a
Device Type: AC Electric Motor
Horsepower: 20 HP
Voltage: 230 / 460 V
Phase: 3
Frequency: 60 Hz
Speed: 1180 RPM
Amps: 52.0 / 26.0
Frame Size: 286TY
Design: A
Service Factor: 1.15
Enclosure: DP
Insulation Class: F
Power Factor: 78.0%
Max kVAR: 80.0
Efficiency (Nominal): 91.7%
Efficiency (Guaranteed): 91.0%
Bearings (Drive End): 50BC03JP30X
Bearings (Opposite End): 50BC03JP30X
Motor Weight: 364 lbs
Part Number: 339535
