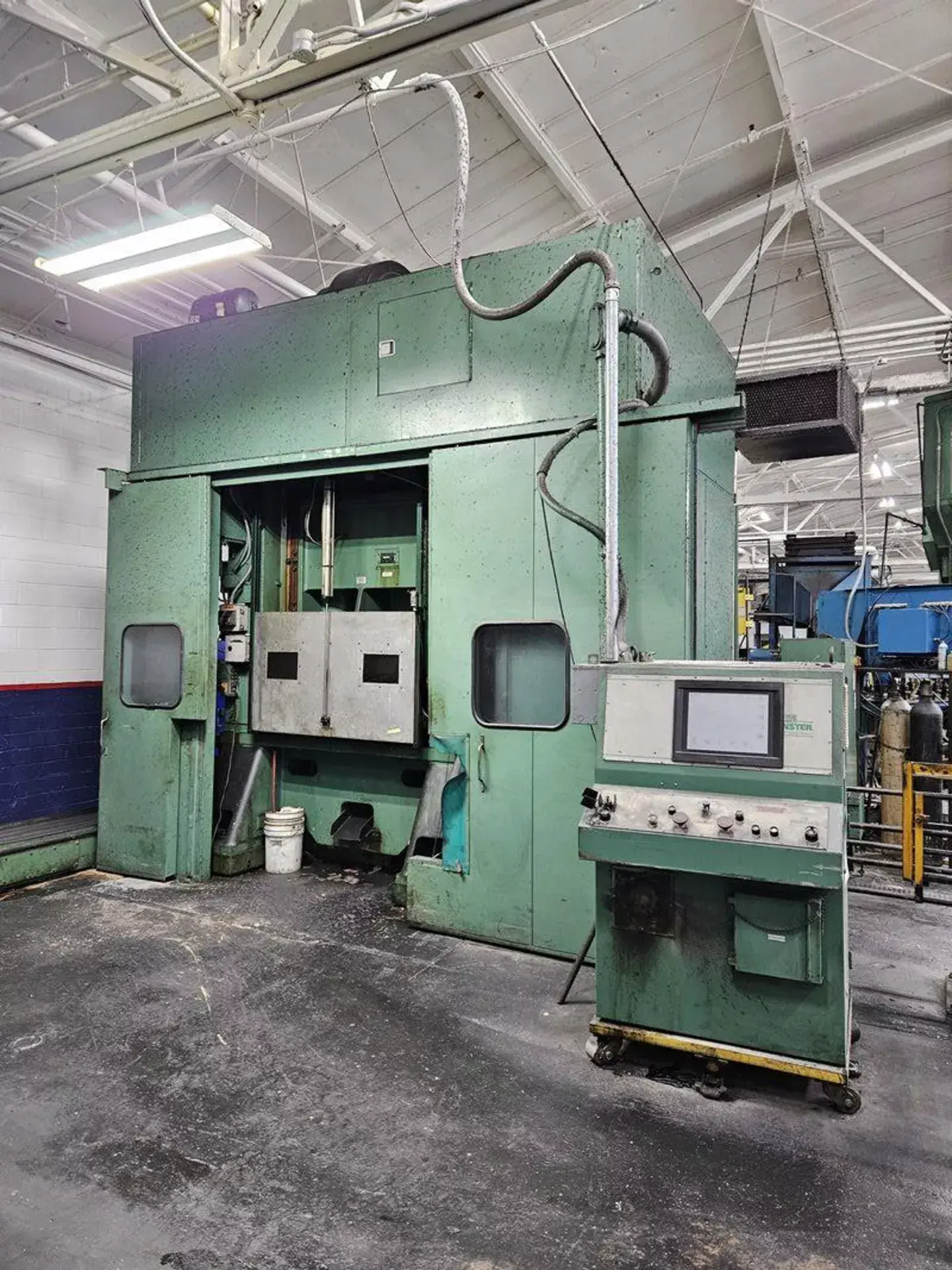

300 Ton Minster HeviStamper Straight Side Mechanical Press: 54" x 44" Bed Area, 23" Shut Height, 4" Stroke, 60-120 SPM
| Tonnage | 300 T | 272.156 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 23" | 584.2 mm |
| Bed area (Left to right) | 54" | 1,371.6 mm |
| Bed area (Front to back) | 44" | 1,117.6 mm |
| SPM min. | 60 strokes/min. | 60 strokes/min. |
| SPM max. | 120 strokes/min. | 120 strokes/min. |
| Adjustment | 6" | 152.4 mm |
| Windows Width | 28" | 711.2 mm |
Model Number: E2-300-54-44
Serial Number: E2-300-29996
Year of Manufacture: 2000
Bed Area: 54” x 44”
Slide Area: 54” x 44”
Stroke: 4”
Strokes per Minute: 60-120
Shut Height: 23” over bed
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 28” wide
Overall Height: 15’10 ½” floor to top of motor
Floor to top of Bolster: 42.5”
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve
Minster Control Console
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Main Motor:
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
Vibration Isolation Levelers
