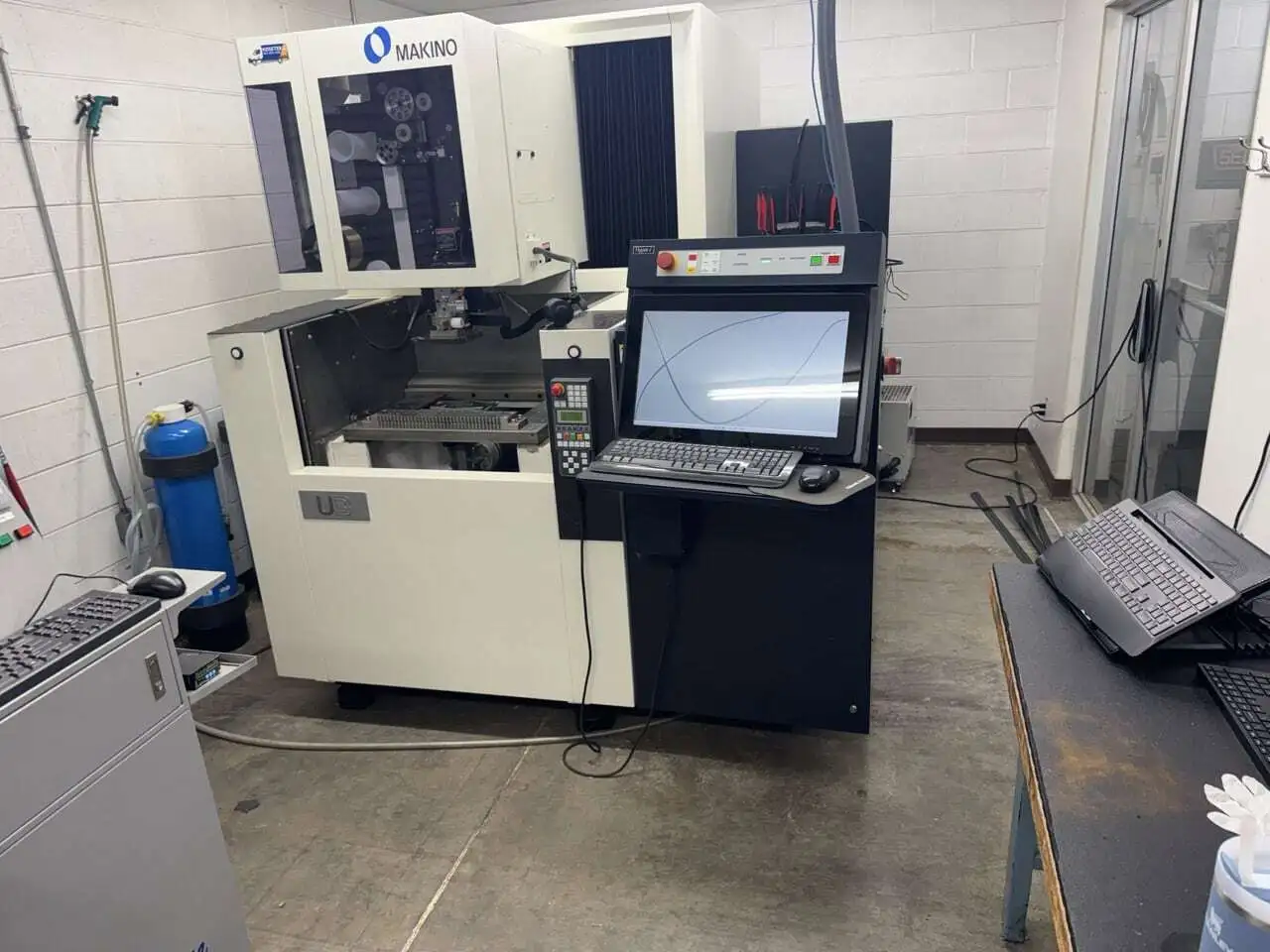

Wire EDM, used, featuring 24.8" x 17.7" table, max workpiece size 30.3" x 23.2" x 8.66", max weight 1,320 lbs. Travels: X 14.57", Y 10.63", Z 8.66", U/V ±1.97". Includes Hyper I Control, auto threading, PICO guides, dielectric height setting.
| X | 14.6" | 370.84 mm |
| Y | 10.6" | 269.24 mm |
| Z | 8.7" | 220.98 mm |

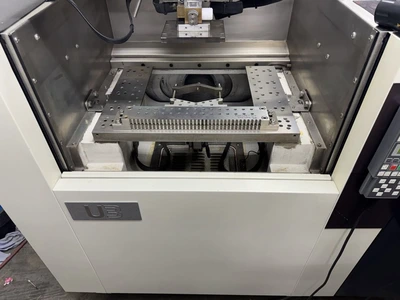

Table size: 24.8″ × 17.7″
Maximum workpiece size: 30.3″ × 23.2″ × 8.66″
Maximum workpiece weight: 1,320 LBS
X-axis travel: 14.57″
Y-axis travel: 10.63″
Z-axis travel: 8.66″
U-axis travel: ±1.97″
V-axis travel: ±1.97″

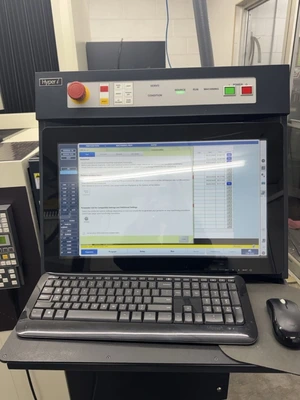

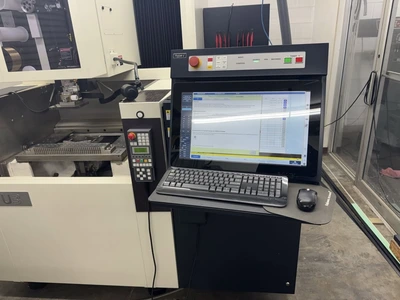

Makino Hyper I Control
Auto Threading
PICO round wire guides
Dielectric Fluid Height Setting Function
