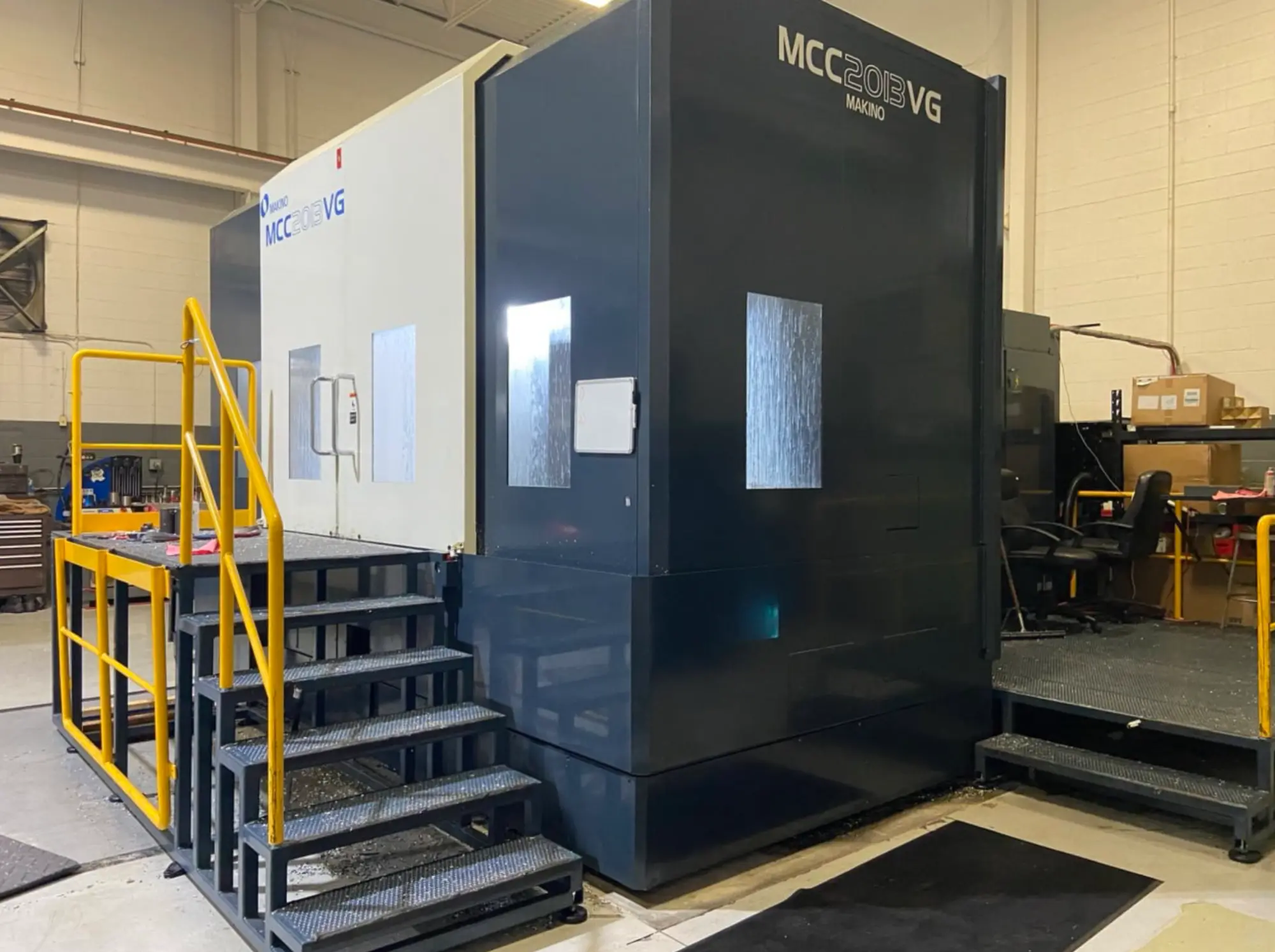

Used Horizontal Machining Center with 57.2" x 59" pallet, 78.7" X-axis, 12,000 rpm spindle, and a robust 50 hp motor. Includes innovative features like through spindle coolant, Renishaw Probe, and mist collector.
| X | 78.7" | 1,999 mm |
| Y | 51.2" | 1,300.5 mm |
| Z | 51.2" | 1,300.5 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 120 | 120 |
| Taper | HSK -100 | HSK -100 |
| Pallet-W | 47.2" | 1,198.9 mm |
| Pallet-L | 59" | 1,498.6 mm |
| # Axis | 4 | 4 |
Pallet Size: 57.2″ x 59″
X-Axis Travel: 78.7″
Y-Axis Travel: 51.2″
Z-Axis Travel: 51.2″
Spindle Speed: 12,000 rpm
Spindle Taper: HSK -100
Spindle Motor: 50 hp
Pallet Indexing: Full 4th Axis
ATC: 120 Tool Matrix Type
Dimensions: 246″ x 242″ x 161″
Weight: 80,000 LBS
Through Spindle Coolant
Lift Up Chip Conveyor
Inch Metric Selection
Data Server
Mist Collector
Rigid Tapping
Portable Manual Pulse Generator
Flood Coolant
Renishaw Probe
Workpiece Washing Gun
Oil Skimmer (Bellows type)
Automatic Air Blower
