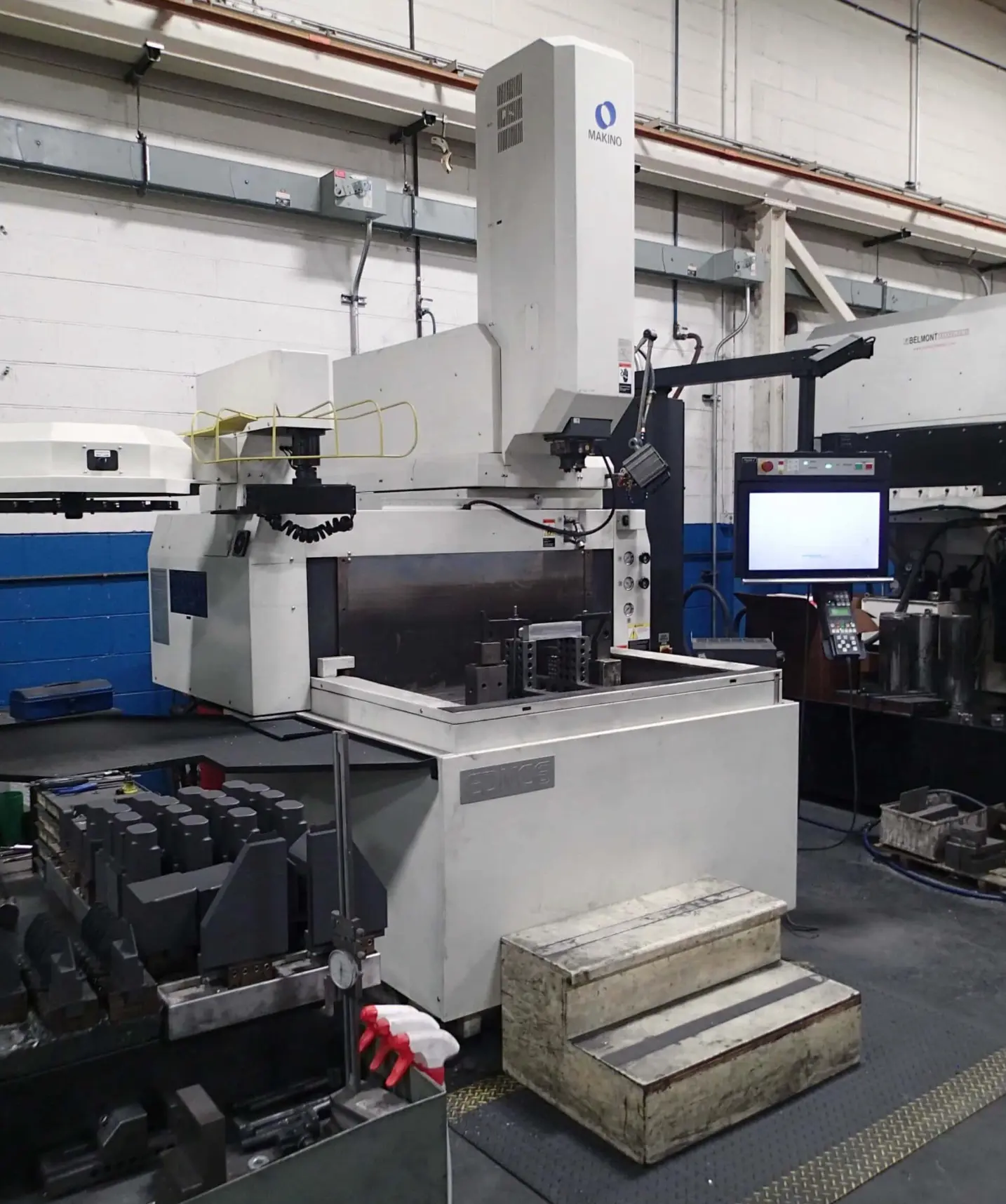

Used MAKINO EDNC6 EDM Sinker, featuring a Makino Hyper I CNC Control, Erowa auto chuck, 16-tool changer, and MR head. Approx 8,600 operational hours.
| Power Pack | 240 A | 240 A |
| Table Size-W | 21.7" | 551.18 mm |
| Table Size-L | 31.5" | 800.1 mm |
| X | 25.6" | 650.24 mm |
| Y | 17.7" | 449.58 mm |
| Z | 13.8" | 350.52 mm |
Work tank size: 43.3″ x 29.5″ x 17.7″
Table size: 31.5″ x 21.7″
X-axis Travel: 25.6″
Y-axis Travel: 17.7″
Z-axis Travel: 13.8″
Tools: 16
Max electrode diameter: 3.15″ / 7″
Max electrode length: 10.2″
Max electrode weight: 220 lbs.
Max fluid level: 15.7″
Max workpiece weight: 3300 lbs.
Platen to table: 27.5″
Power supply: 60 Amps (80 Peak)
Rapid traverse rates: 78 IPM
Makino Hyper I CNC Control
MR Head with Full C-Axis
Erowa Auto Chuck
16 Tool Changer
Remote Jog Handle
Filtration System
Chiller Unit
Available Erowa Tooling
Approx 8,600 Hours
