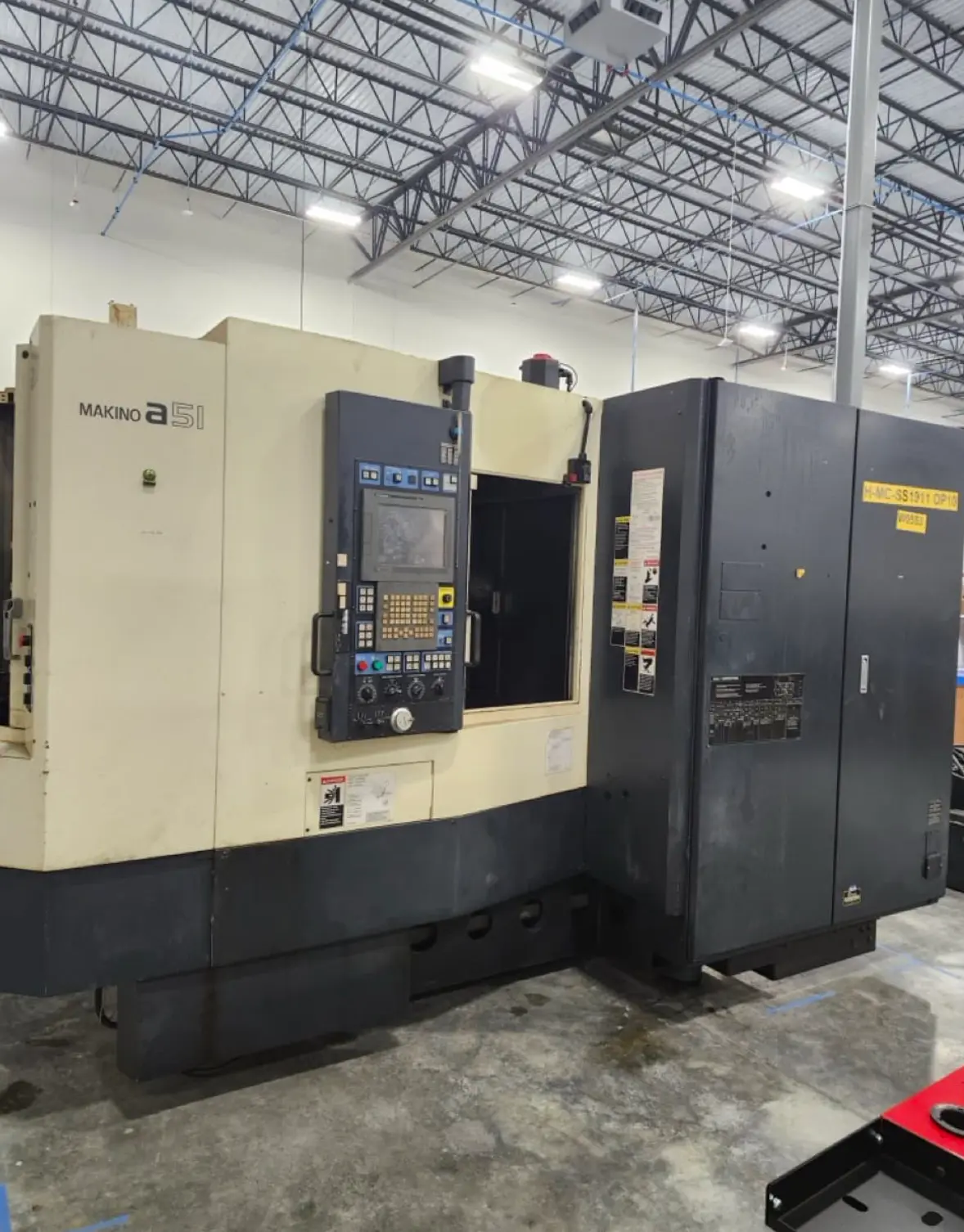

Horizontal Machining Center, used. Features include 15.7" x 15.7" pallet size, 880 lb table load, 22" x/y travel, 23.6" z travel, 25 HP spindle at 14,000 RPM, 60 ATC. Includes Professional 5 CNC Control, 4th axis, chip conveyor, and tombstones.
| X | 22" | 558.8 mm |
| Y | 22" | 558.8 mm |
| Z | 23.62" | 599.95 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 60 | 60 |
| Taper | 40 | 40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| # Axis | 4 | 4 |
| Dimensions | 152″ x 100″ x 106″ | 152″ x 100″ x 106″ |
| Weight | 18,000 LBS | 18,000 LBS |
Pallet Size 15.7″ X 15.7″
Table Load Capacity 880 LBS.
X-Axis Travel: 22″
Y-Axis Travel: 22″
Z-Axis Travel: 23.6″
Table Indexing: .001 Degree
Spindle Center To Table Top: 22.44″
Spindle Nose To Table Center: 2.760″
Spindle Drive Motor: 25 HP
Spindle Taper: # 40
Spindle Speeds: 14,000 RPM
Rapid Traverse Rate: 1574 IPM
Cutting Feedrate: 630 IPM
Auto Tool Change Capacity: 60 ATC
Approx. Machine Weight 18,800 LBS.
Approx. Dims for Placement: 152″ x 100″ x 106″
Approx. Dims for Transport: 140″ x 89″ x 98″
Professional 5 CNC Control
60 ATC
Full 4th
Chip Conveyor

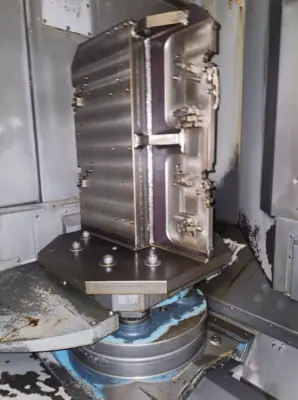

Tombstones in Pictures are included
