USED 2008 VECOPLAN, LLC RG 42/60 XL
Overview
Description

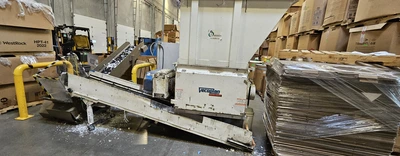

Complete Vecoplan shredding system previously used for product destruction. The system was operational until it was removed from service in October 2025.
System Includes:

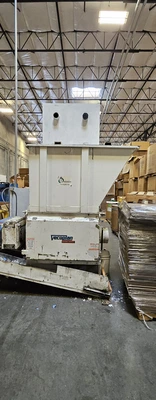

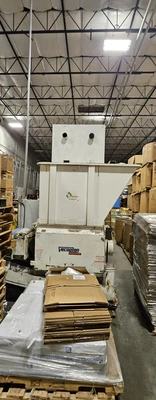

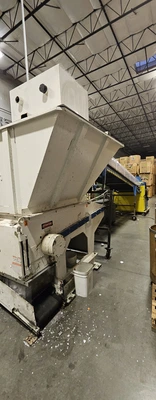

• Vecoplan RG42/60XL shredder
• Gaylord tipper

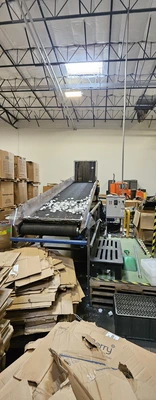

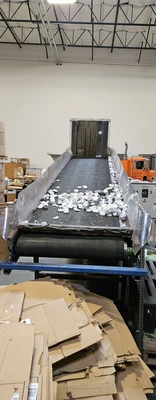

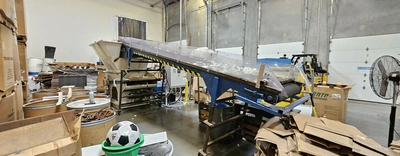

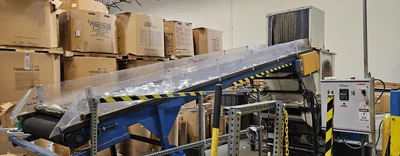

• Inclined infeed conveyor
• Primary outfeed conveyor

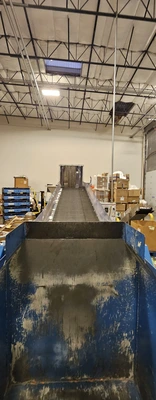

• Secondary inclined discharge conveyor

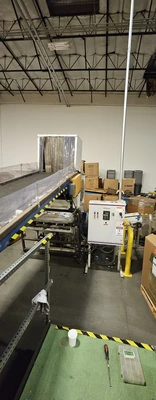

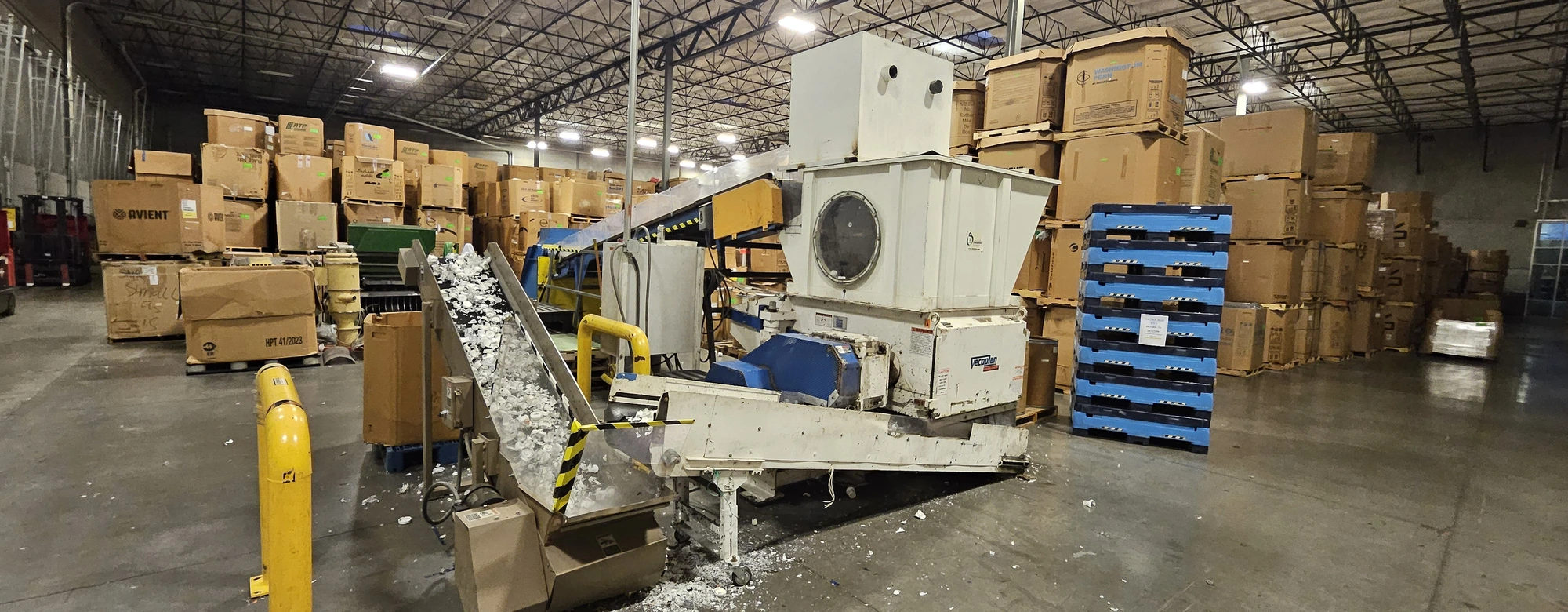

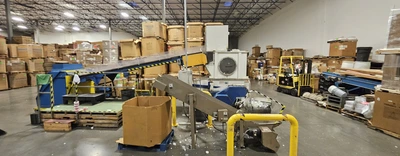

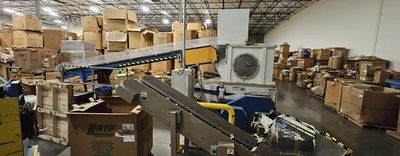

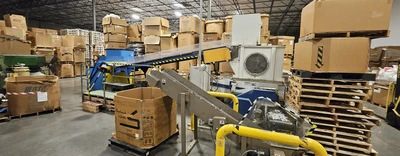

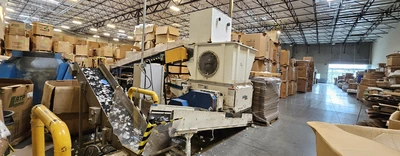

The Gaylord tipper feeds the inclined infeed conveyor, while the shredder discharges onto a slightly inclined conveyor feeding a secondary incline conveyor that drops material directly into a Gaylord box.
Specifications:
• Rotor: 15” Diameter x 42” Width
• Cutters: 40mm crowned cutters
• Quantity of Cutters: 48
• Single hydraulic ram cylinder
• Two screen sizes included
• No screen currently installed
• Approximate weight of shredder body and hopper top: 5,800 lbs
Electrical:
• Gaylord tipper: 120V / Single Phase
• Infeed & outfeed conveyors: 480V / 3 Phase

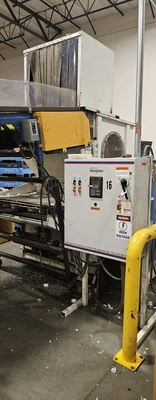

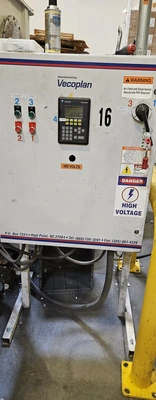

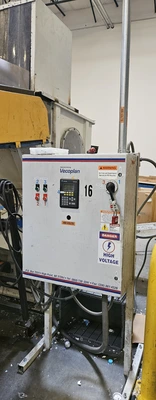

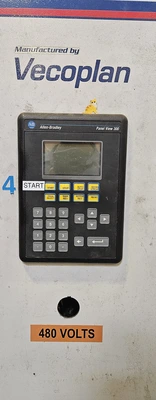

• Conveyors wired directly into and controlled by the Vecoplan control panel

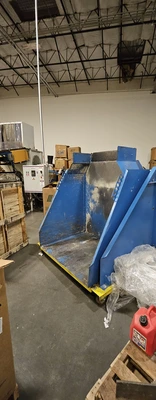

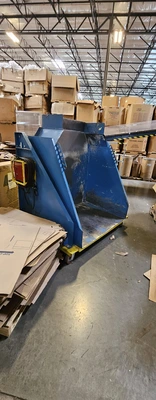

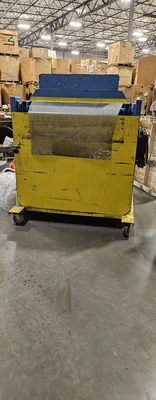

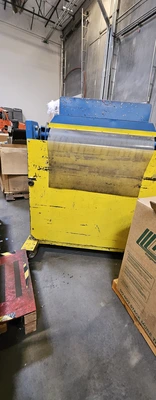

Gaylord Tipper Features:
• Mounted on steel c-channel base with caster wheels
• 2,500 lb capacity
• Pivot arm supported by flush-mount bearings for smooth operation
• Added steel hydraulic protection panel
• PVC flex sheet installed to prevent material loss between tipper and conveyor
Additional Features:
• Hopper and hopper top included
• Package of new wear parts included:
Drive belt
Hydraulic oil filter
Ram guide rails
Ram face wipers
Springs and washers
• Rubber mounting pads included (currently stored inside hopper)
Specifications
| Power | 60 hp | 44.7 kW |
|---|
Rotor diameter (sweep width): 15 inch
Rotor length: 42 inch
Rotor speed: 115 RPM
Number of reducing tools: 48 pcs (cutters)
Overall length: approx. 107.28 inch
Overall width: approx. 85.63 inch
Overall height: approx. 43 inch (main body only)
Weight: approx. 2.87 tn (5,700lbs)
Motor Type: Electric motor with Turbo-clutch, V-belt drive and gearing
Translation ration (gears): i = 12.5
Nominal motor power: 60 HP
Nominal motor current: 67 A
Motor speed: 1765 RPM
Input voltage: 460 V
Power frequency: 60 Hz
Protection class: IP 54
