USED 2021 MAZAK QT-EZ 10 MY
Overview
Description

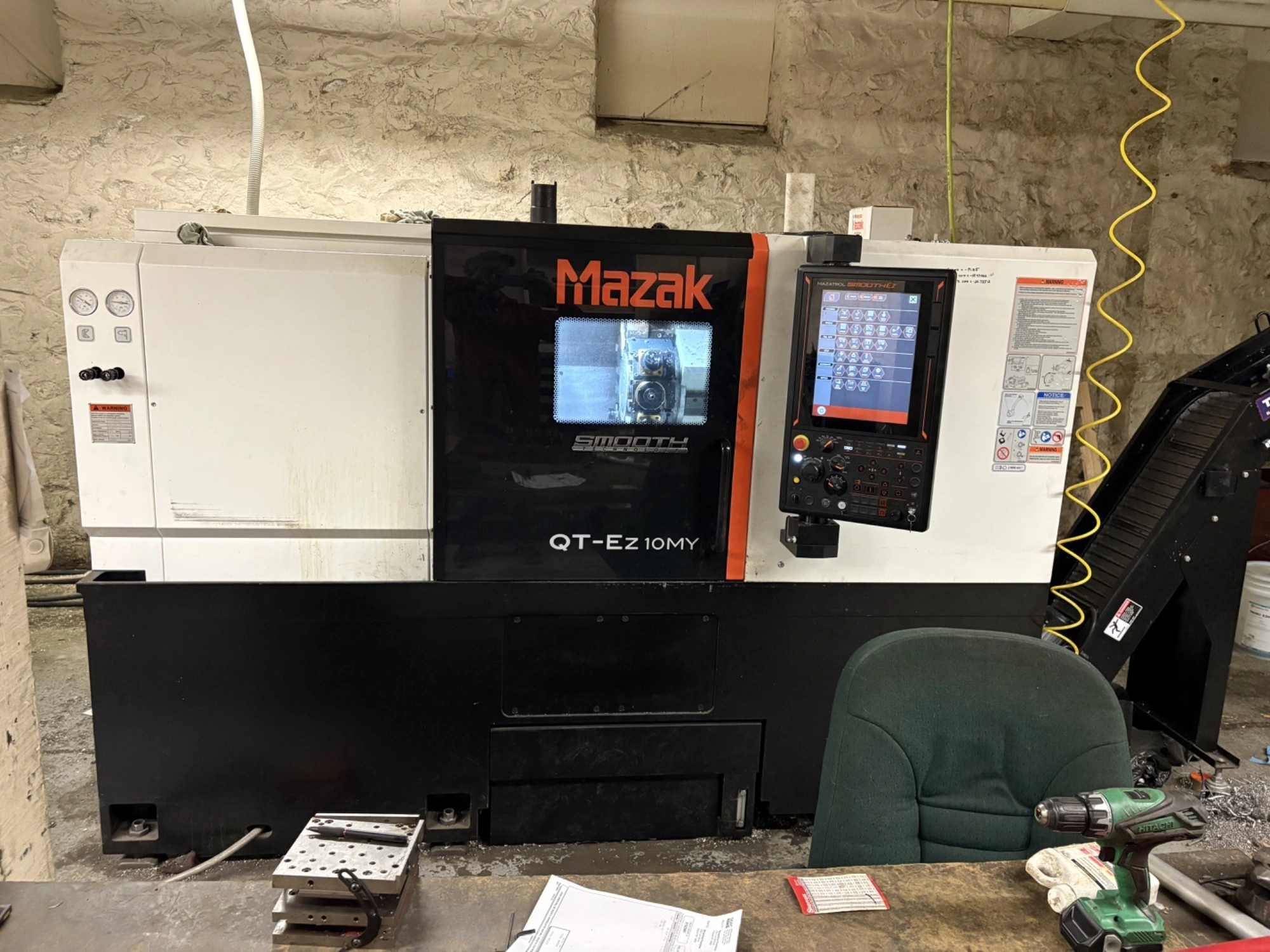

The Mazak QT-Ez 10 MY is a 3-axis CNC turning center designed for high-value productivity, featuring milling capabilities (M) and Y-axis off-centerline machining (Y). It is part of Mazak's entry-level Ez series, built for reliability and ease of use in job shop environments.
Specifications
| # Axis | 0 | 0 |
|---|---|---|
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3" | 76.2 mm |
| Power | 20 hp | 14.9 kW |
| Turning Dia | 13.5" | 342.9 mm |
| Tailstock | 'Yes' | 'Yes' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'No' | 'No' |
Standard Chuck Size - 10" (254 mm)
Max Machining Diameter - 13.5" (343 mm)
Max Machining Length - 20.1" (511 mm)
Bar Work Capacity - 2.5" - 3" (depending on package)
Main Spindle Speed - 4,200 RPM
Main Spindle Power - 20 HP (15 kW)
Milling Spindle Speed - 6,000 RPM
Milling Spindle Power - 7.5 HP (5.5 kW)
Y-Axis Travel - ±2.0" (4.0" total)
Specs per OEM:
https://ezseries.mazakusa.com/machine/qt-ez-10my/
Equipped With
QT 10 smart control Mazak Lathe with live tooling.
Three axis x y z

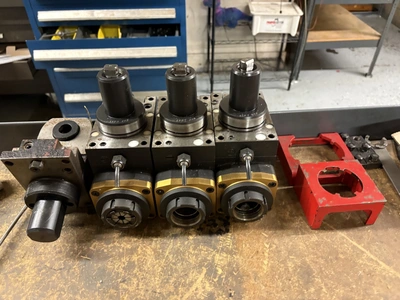

Comes with 6 live tooling attachments.
Great machine, seller just hasn't found enough work for it.
Dimensions - 75" x 109" x 68"
Approx Weight - 11,949 lbs
