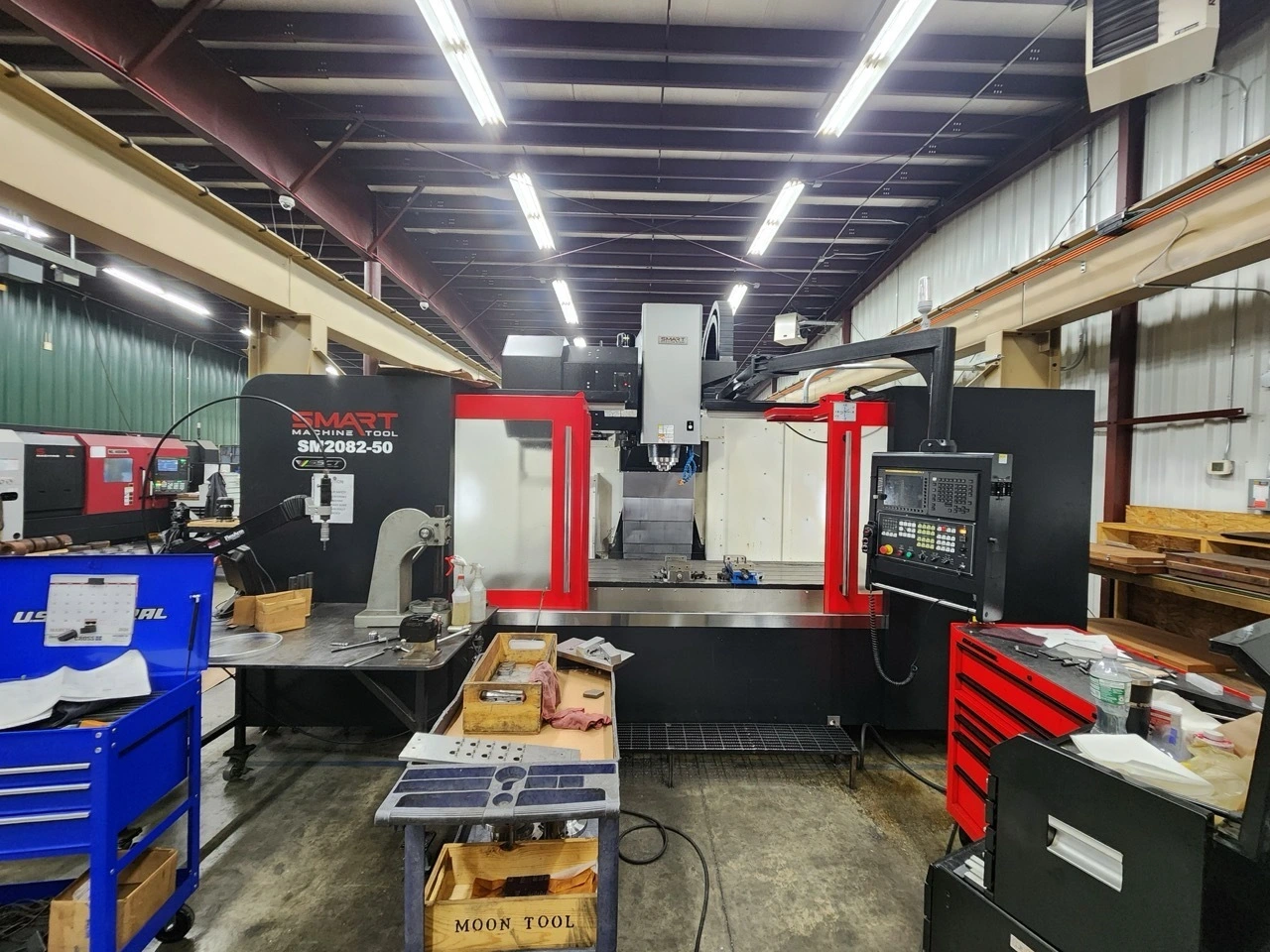

Vertical Machining Center, used. Features: 84.65"x32.28" table, 5,732 lbs max load, 81.1"x32.28"x25.98" travel, CAT 50 taper, 35 HP, 6,000 RPM, Fanuc 0i-MF Plus, Boxed Ways, 6K Gear Driven Spindle, and more.
| X | 81.1" | 2,059.9 mm |
| Y | 32.28" | 819.91 mm |
| Z | 25.98" | 659.89 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 32 | 32 |
| Taper | CAT 50 | CAT 50 |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Dimensions | 237″ x 134.52″ | 237″ x 134.52″ |
| Weight | 28,439 lbs | 28,439 lbs |
Table Size: 84.65″ x 32.28″
Max Table Load: 5,732 lbs
X-Axis Travel: 81.1″
Y-Axis Travel: 32.28″
Z-Axis Travel: 25.98″
Spindle Taper: CAT 50
Spindle Motor: 35 HP
Spindle Speed: 6,000 RPM
ATC: 32
Machine Dimensions: 237″ x 134.52″
Machine Weight: 28,439 lbs
Fanuc 0i-MF Plus Control
Boxed Ways
6K Gear Driven Spindle
Chip Conveyor
290 PSI CTS
Renishaw Probe Ready
All Available Manuals
