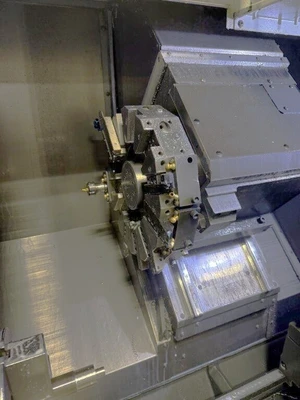

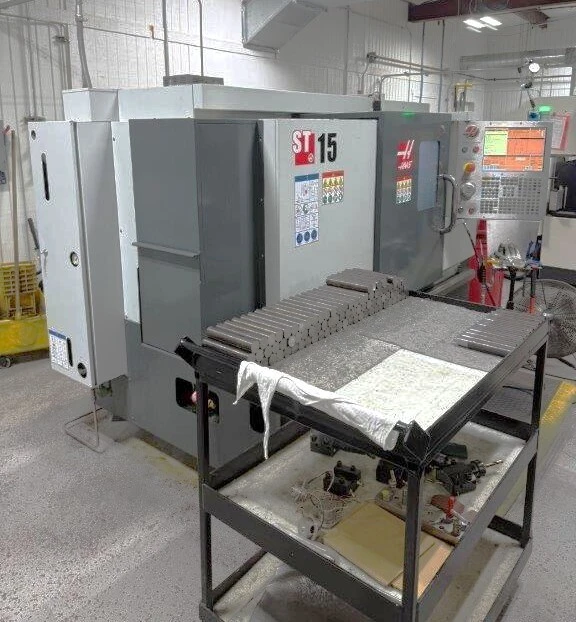

Used CNC Lathe. Features: 2-axis, 27" swing, 16" machining length, 8.3" hyd. chuck, 2.5" bar capacity, 20 hp, 4,000 RPM. Includes chip conveyor, tailstock, tool presetter, cabinet cooler, wired 220V, spindle run time 5,554 hrs.
| Swing | 27" | 685.8 mm |
| Machining Length | 16" | 406.4 mm |
| # Axis | 2 | 2 |
| Chuck Size | 8.3" | 210.82 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 20 hp | 14.9 kW |
| Max RPM | 4,000 RPM | 4,000 RPM |
| Turning Dia | 14" | 355.6 mm |
| Control | CNC (HAAS) | CNC (HAAS) |
Chip Conveyor

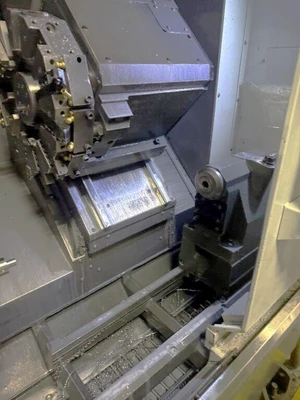

Tailstock with Hydraulic Quill
8.3" 3 Jaw Hydraulic Chuck
Tool Presetter
CabCool: Cabinet A/C Unit
Rigid Tapping
USB Port Interface
RS232 Port Interface

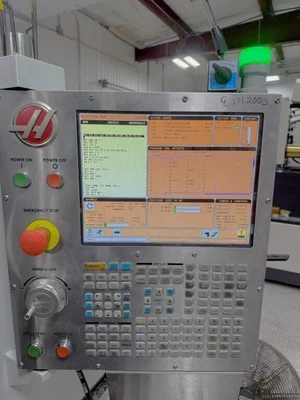

15" LCD Monitor
Coolant System with Tank & Pump

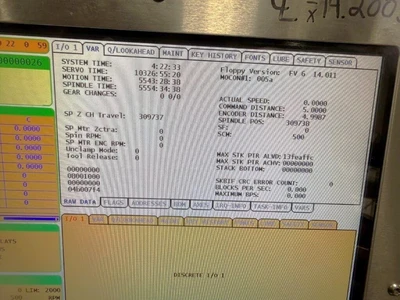

**Servo On Hours 10,326**
**Spindle Run Time 5,554**
