USED 2001 THERMWOOD C67-DT
Overview
Description

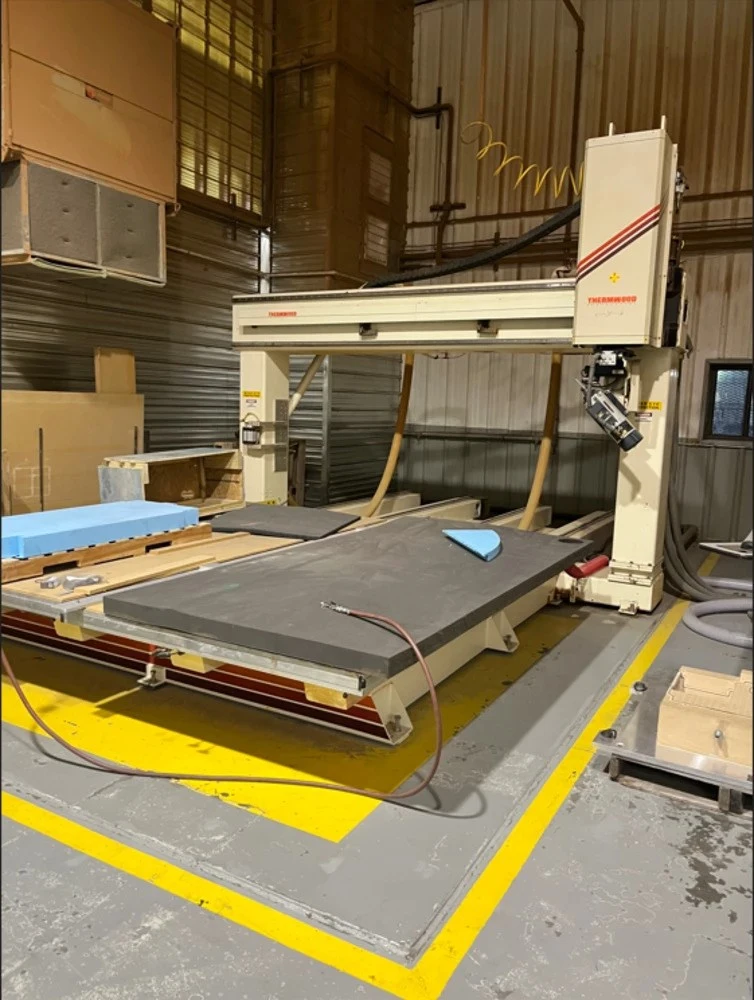

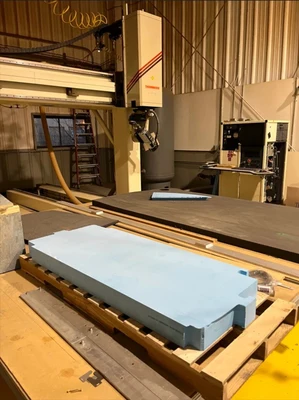

Thermwood "C67-DT" 5-Axis CNC Router
(2) 5' Wide x 10' moving tables; aluminum tables with 1" thick tool and jig plate.
X-Axis (table travel) is 120", Y-axis (head on gantry travel) is 120", Z-axis is 36", rotational axis = 360°, tilt axis = 270°.
(1)10 HP "HSD" ES919 ISO 30Spindle, (3,000 - 18,000 RPM) with solid-state inverter

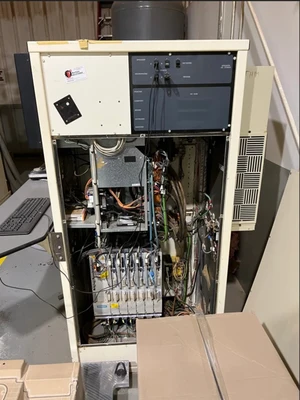

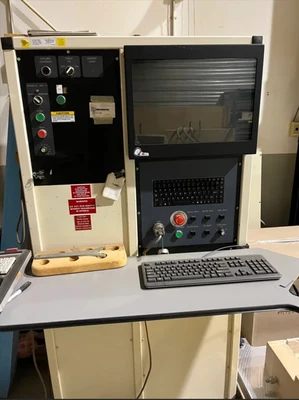

THERMWOOD "91000 Super Control controller, programmable spindle speed option, compatible with major CAD/CAM and offline CNC programming systems; Automatic tool length sensor; Stand-alone, refrigerated control cabinet.
Specifications
| Weight | 11,000 Pounds | 11,000 Pounds |
|---|
Phase: 3 PHASE
Voltage: 460 VOLT
Estimated Dimensions: 245" L x 156" W x 137" H
Seller Comment: A rigger is required. Buyer's Responsibility for Break-down, loading and removal. By appointment ONLY!
Lot Notes: Andy Baker @ Baker Rigging, [email protected], (480) 939-4233
Onsite Contact: Thomas Aronson, [email protected], 941-699-8717
Load Out Period: Within (2) weeks after purchase date
