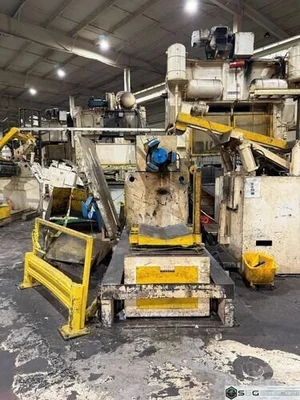

USED DALLAS DPR-15000 X 30 / DRF-630
Overview
Description

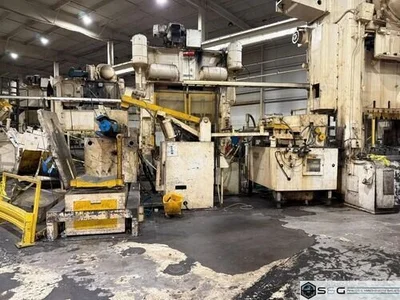

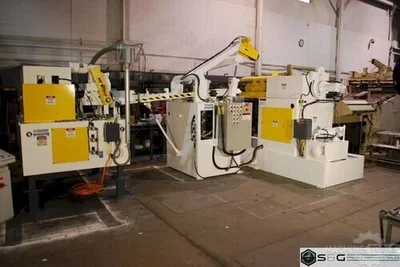

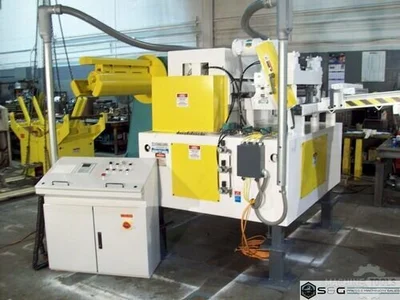

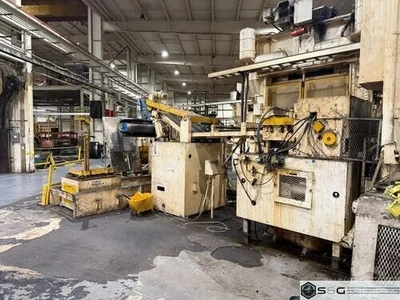

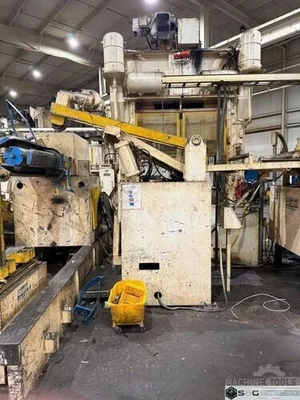

Dallas 30" wide x 15,000lbs Space Saver Coil Feed Line
Specifications
Coil Weight: 15000 pounds
Coil Width: 30 inches
Coil Thickness: .188 inches
15000 lbs. x 30" Dallas Coil Feed Lines
Space Saver - 2 Available
Model DRF-630 RH / LC-15000 x 30 / DPR-1500 x 30
Coil Weight Capacity: 15,000
Serial Number: 18399 / 18997 / 18396
Coil Width Capacity: 30”
Stock Thickness Capacity: 30” wide x .188” thick material
18” wide x 0.250” thick material
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Feed Direction: Right To Left
Equipment and Features
Dallas Coil Reel Motorized Model No. DPR-15000 x 30
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Keeper Arms
Back Deflector Plate
Jog drive for threading
Travelling Coil Load Car
Hydraulic Lift for Coils
Spindle Jog Forward/Reverse

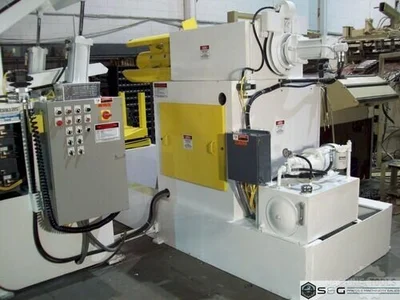

Dallas PTR Unit Model No. LC-15000 x 30
Hold Down Arm (Hydraulically Actuated)
Peeler/Threader/Debender Unit
Motorized End Wheel

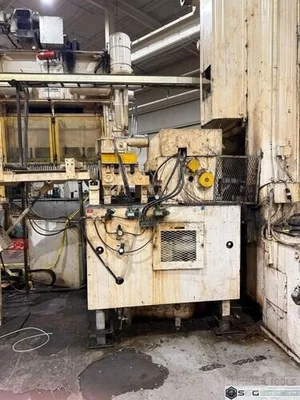

Dallas Servo Feed with Pull Thru Straightener Model No. DRF-630RH
Five straightening rolls x 3” diameter
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
6” diameter Feed Rolls
Entry Edge Guides

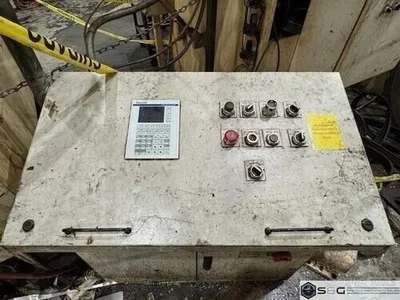

Rexroth Indramat Drive Controls
Dallas PTR Unit with Hold Down Arm Motorized End Wheel
Hold Down Arm (Hydraulically Actuated)
Peeler/Threader/Debender Unit
Motorized End Wheel
