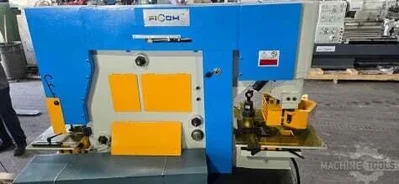

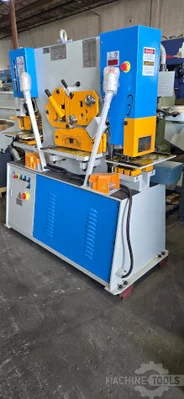

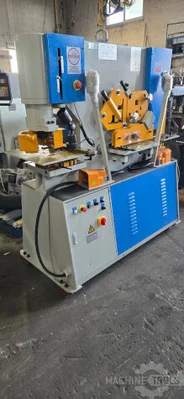

USED 2026 FICOM FICOM

66 Ton Hydraulic Ironworker with Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table with Fence, Punch Station for Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard for Notching Station, Movable Workstation Light w/ Magnetic Base and 12” Press Brake Attachment.GENERAL SPECIFICATIONS Punch StationTonnage:                            66 TonsThroat:                            11-13/16”Capacity:                            1” Hole Thru ⅝” PlateStroke:                            3-⅛”Bar ShearCutting Capacity - Max. Width:                5/16” X 15-¾”Max. Thickness:                        ⅝” X 10”Section CuttingRound - Solid:                        1-¾” Square Solid:                            1-9/16” Channel:                            ½”Angle:                                4-59/64” X ½”Rectangular NotchingMax. Cut:                            2-¼” X 3-15/16” X 25/64”Motor & ElectricsMotor Power:                            5.3 HPElectrics - Standard:                        230 / 460 / 3 / 60Dimensions:                            65” X 32” X 70” Machine Weight:                        3,527 LbsINCLUDES: Dual Operator Stations with (2) Movable Foot Pedals, Five Workstations (Punch, Plate Shear, Angle Shear, Rod Shear & Notcher), Punch Station Has Large Two Piece Gauging Table with Fence, Punch Station for Channel & I - Beam, Electrical Backgauge, Electrically Interlocked Safety Guard for Notching Station, Movable Workstation Light w/ Magnetic Base and 12” Press Brake Attachment.
