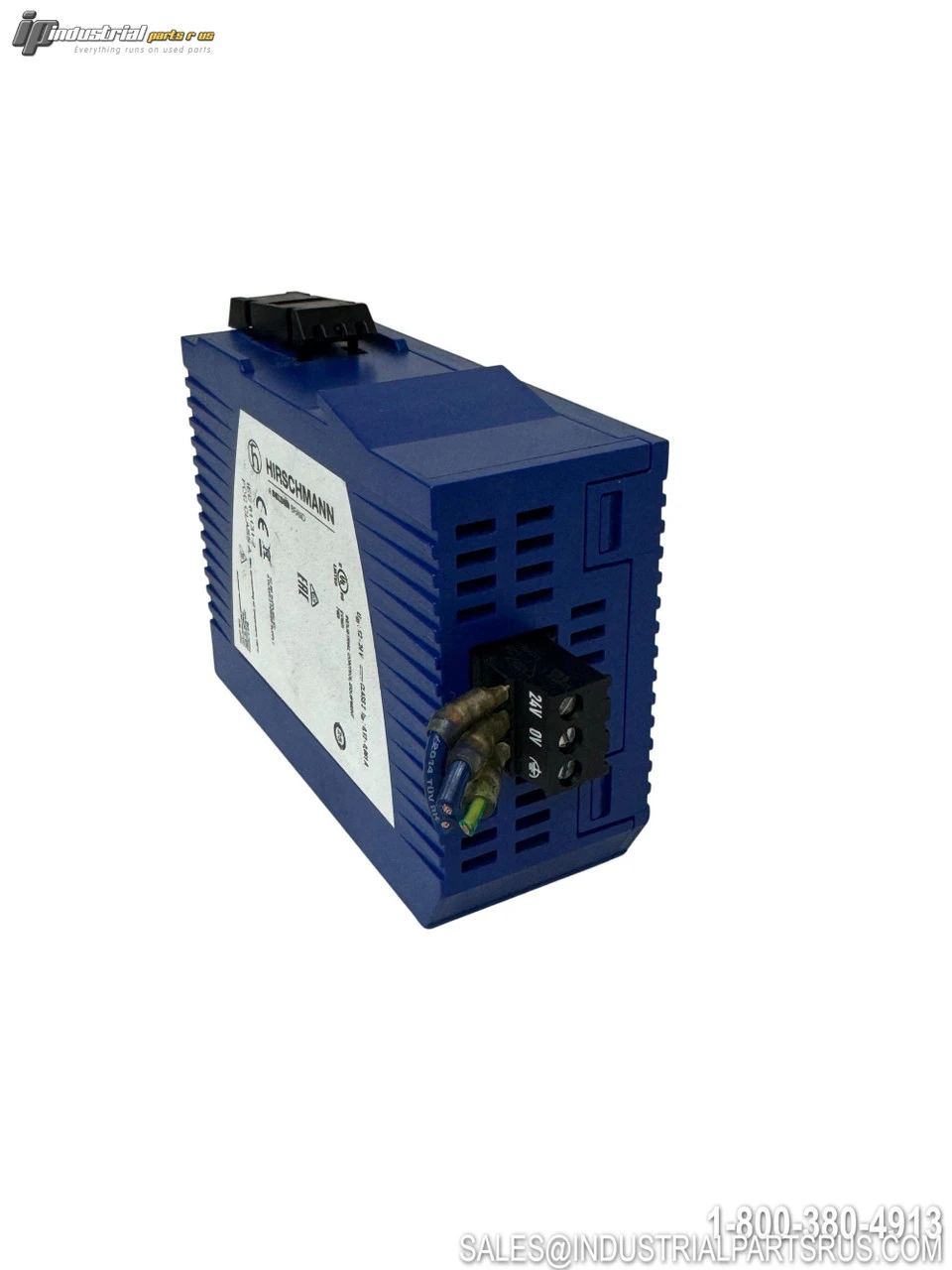

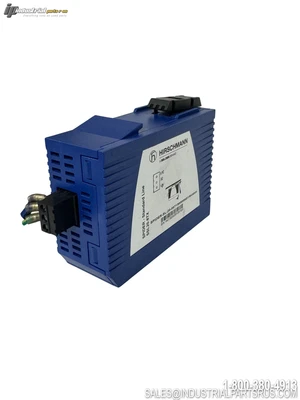

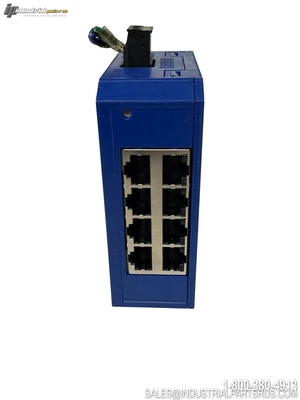

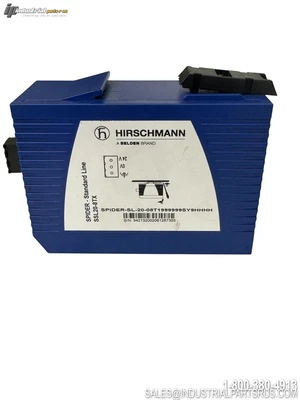

The Hirschmann SSL20-8TX is an industrial unmanaged Ethernet switch designed for reliable networking in industrial environments. This compact switch features 8 Fast Ethernet ports with auto-crossing and auto-negotiation capabilities, housed in an IP30-rated enclosure suitable for DIN rail mounting.
Specification
Value
Brand
Hirschmann
Model/Part Number
SSL20-8TX
Full Model Number
SPIDER-SL-20-08T1999999SY9HHHH
OEM Part Number
942132002
Switch Type
Unmanaged
Number of Ports
8
Port Type
10/100Base-TX RJ45
Network Speed
10/100 Mbps
Operating Voltage
9.6-32 VDC
Nominal Voltage
12/24 VDC
Current Consumption
Max 63 mA at 24V DC
Power Consumption
Max 1.5W
Operating Temperature
0°C to +60°C
Enclosure Type
IP30
Mounting Type
DIN Rail
Weight
0.35 lbs
Features
Auto-crossing, Auto-negotiation, Auto-polarity
Series
SPIDER III Standard Line
MTBF
2,218,157 hours (Telcordia)
Certifications
UL Certified
We warranty all items for 30 days from date of purchase.
| Weight | 1.00 LBS | 1.00 LBS |
SKU: AI1672
UPC: 679523686161
Condition: Used
Availability: In Stock
Weight: 1.00 LBS
Width: 7.00
(in)
Height: 6.00
(in)
Depth: 7.00
(in)
Shipping: Calculated at Checkout
GTIN: 679523686161
Full Load Amps: Max 63 mA at 24V DC
Manufacturer: Hirschmann
Enclosure Type: IP30
Part Number: SSL20-8TX
Shelf: K-69
Model: SSL20-8TX
MPN: SSL20-8TX
Type: Network Module
