X Axis Travel: 40″
Y Axis Travel: 20″
Z Axis Travel: 25″
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Spindle Nose to Table: 4.2″-29.2″
Max Table Load: 1,750 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Max Torque: 90 Ftlbs

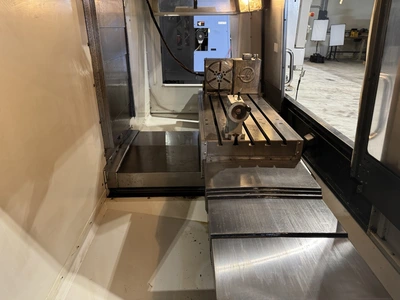

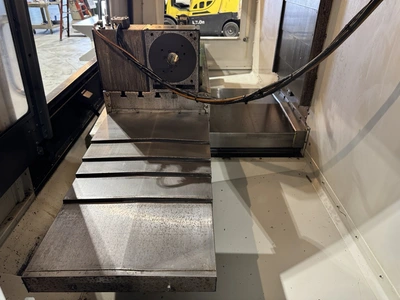

Table Size: 48″ x 18″
Approx Dimensions: 118″ x 96″ x 100″
Approx Weight: 12,500 LBS
Equipped with:

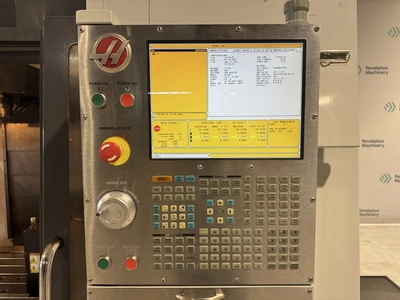

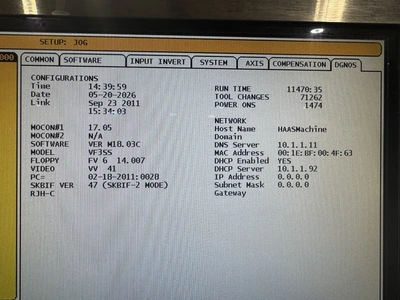

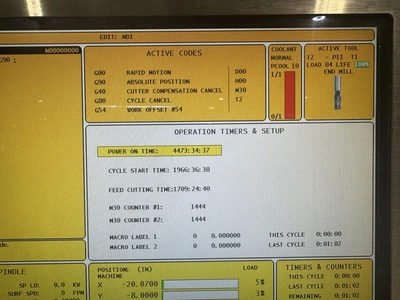

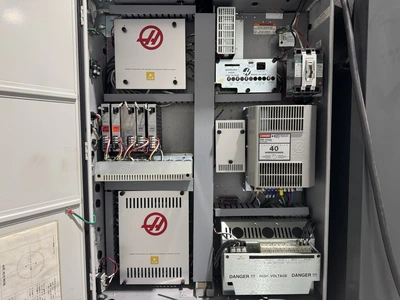

Haas CNC Control

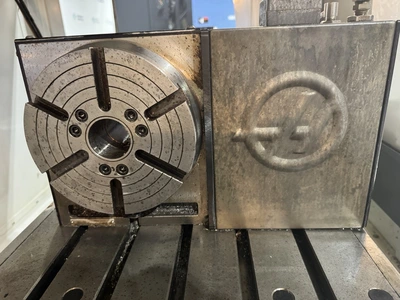

Haas HRT210 8″ 4th Axis Rotary indexer

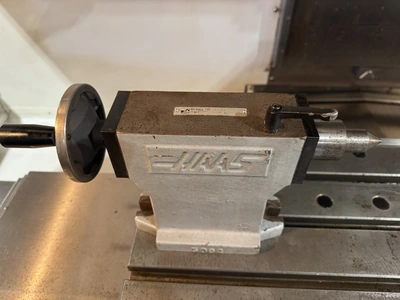

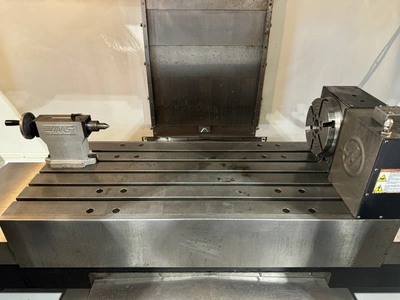

Haas Tailstock

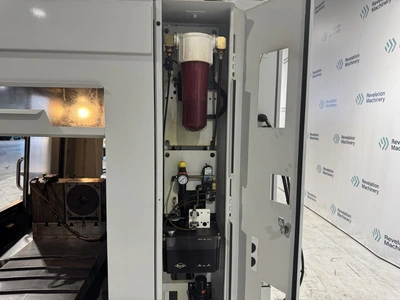

Programmable Coolant
Chip Auger
4th axis drive
