Equipped With

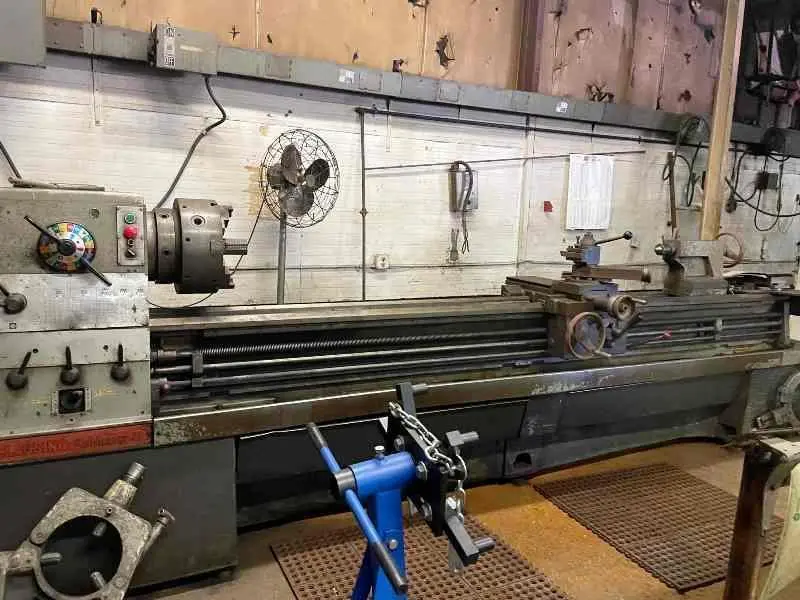

21" X 100" CLAUSING COLCHESTER 8100 SERIES ENGINE LATHE
New 1982
SPECIFICATIONS:
Swing Over Ways: 21″
Swing Over Carriage: 16″
Swing In Gap: 32″
Swing Gap Length: 14″
Spindle Speed : 18 – 1400 RPM
Distance Between Centers: 100″
Thru Hole: 3.5″
Tailstock Specs:
Taper: MT5
Quill: 5″Pitch Types:
Metric ( 40): 0.4 MM – 14 MM
Standard (38): 2 TPI – 72 TPI
Modular (18): .3 – 3.5
Diametrical (27): 8 – 60
Feed Rates: 0.002-0.032 IPM
Power: 230V / 3 Phase / 60 Cycle
Main Motor: 12.5 HP
Overall Equipment Dimensions (Approx.): 182″ L X 36″ W X 56″ H
Overall Equipment Weight (Approx.): 8,500 LBS.
