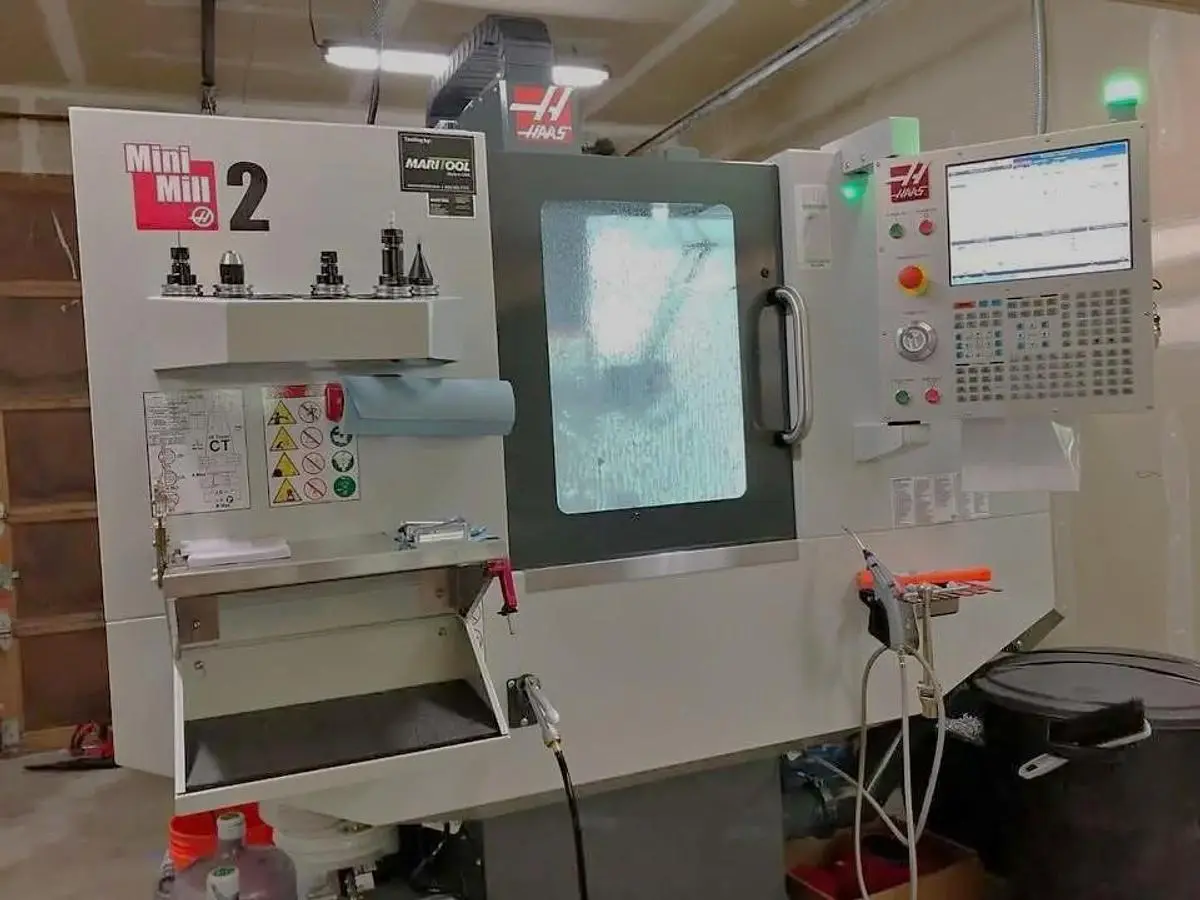

USED 2020 HAAS MINI MILL 2

Haas Probing Package Tool & Part Probes
10,000 RPM Grease Packed Spindle
Pre-Wired for 4th Axis
High Speed Machining
Programmable Coolant Nozzle
Auger Style Chip Conveyor
User Definable Macros
Rotation & Scaling
M19 Spindle Orientation
Haas Visual Programming System
Rigid Tapping
1 GB Programming Memory
Media Display by M Code
Compensation Tables
15" Color LCD Monitor
Memory Lock Keyswitch
Wireless Networking
USB Port Interface
RS 232 Port Interface
LED Work Light
Wired for use by either single or three phase power

**Software Updated in April 2025**
**Very low hours and in excellent condition**

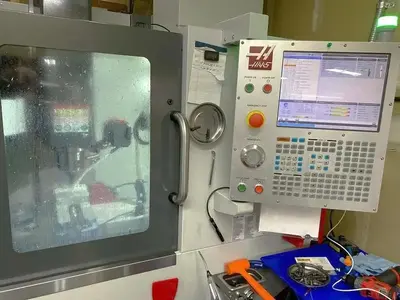

Machine Control: Haas NextGen Control
Table Size: 40" x 14"
Maximum Table Load: 500 lbs
X-Axis Travel: 20"
Y-Axis Travel: 16"
Z-Axis Travel: 14"
Spindle Taper: CAT 40
Spindle Speed: 10,000 rpm
Spindle Motor: 7.5 hp
Rapid Traverse Rates: 600 IPM
Tool Magazine Capacity: 10 Station Tool Changer
Distance Spindle Nose to Table Top: 18"-4"
Maximum Tool Diameter / Length / Weight: 3.5" / NA / 12 lbs
Machine Dimensions LxWxH: 91"x88"x100"
Machine Weight: 5,100 lbs
