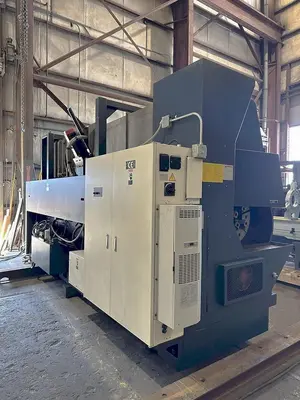

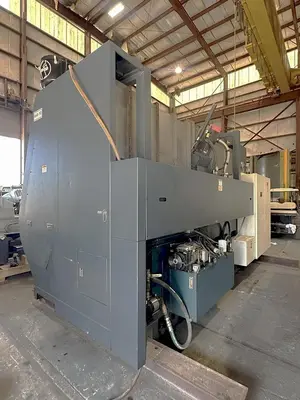

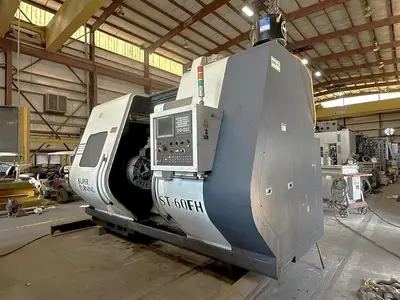

USED 2007 JOHNFORD ST-60FH

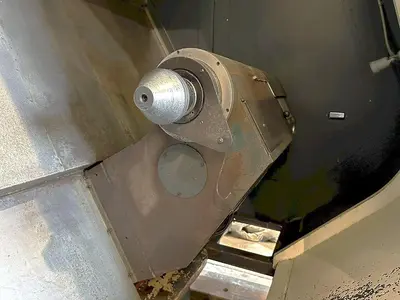

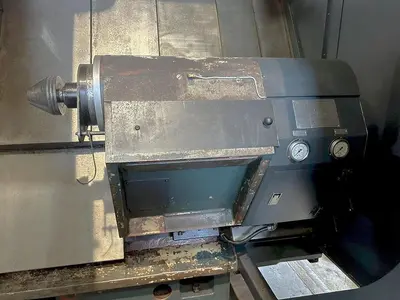

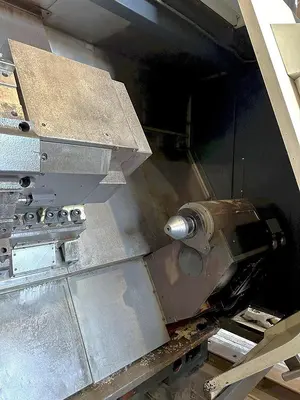

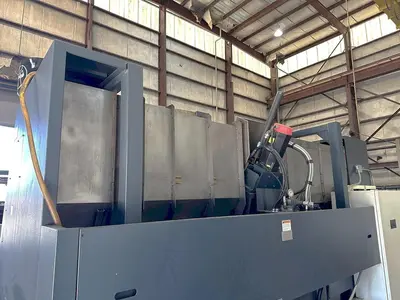

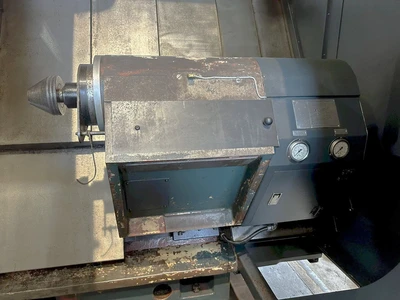

10" Bar Capacity (2) 24" 4 Jaw Manual Chucks on Front and Rear of Spindle Chip Conveyor Tailstock
Mist Collector

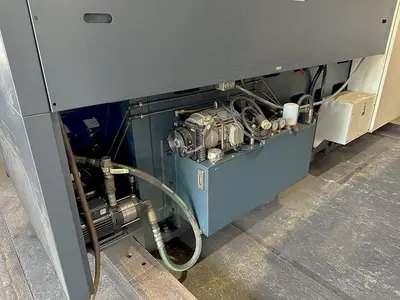

Coolant System with Tank & Pump
Card Interface
RS 232 Port Interface All Available Tooling & Manuals

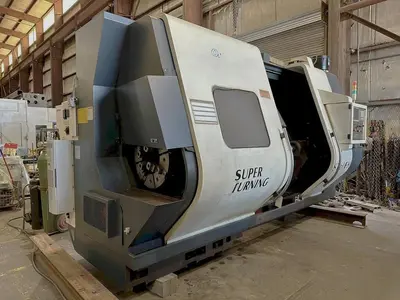

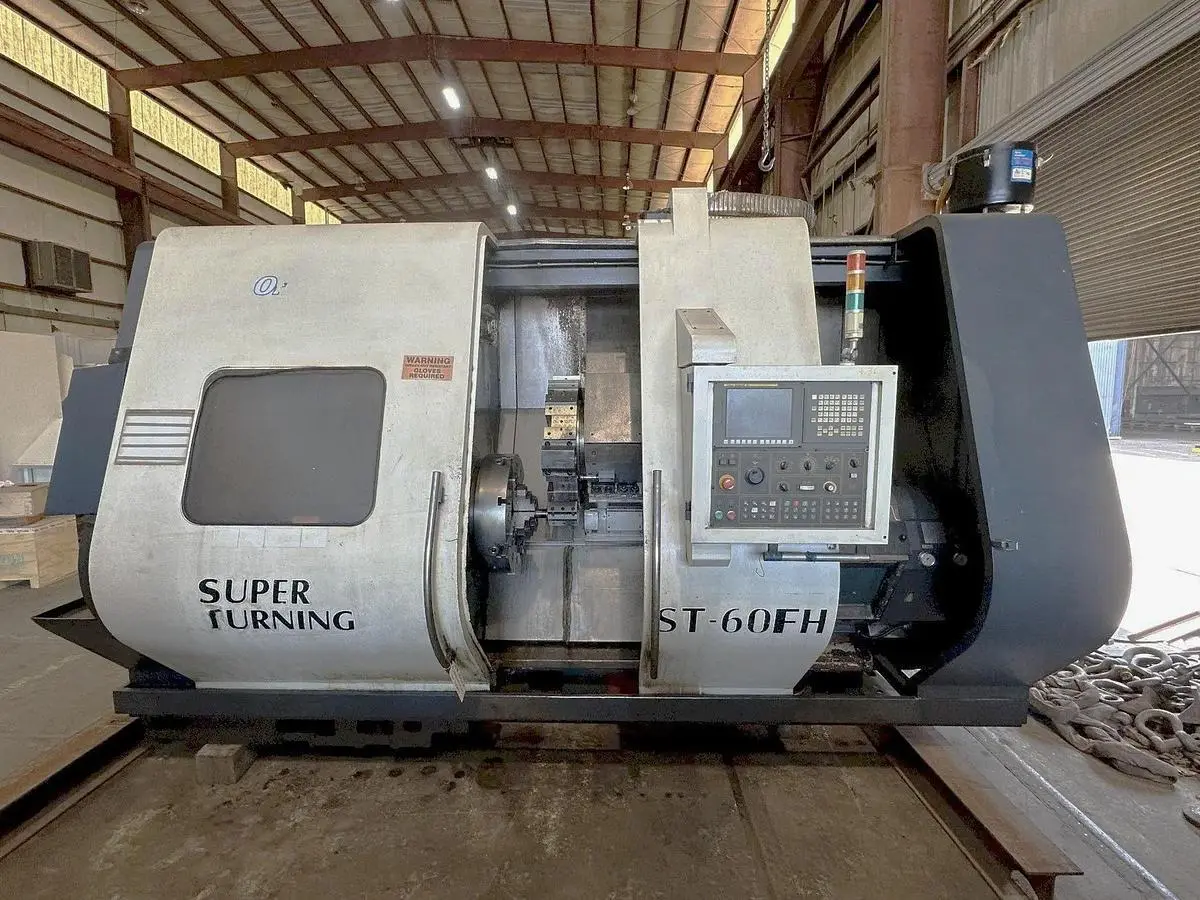

The 2007 Johnford ST-60FH is a robust CNC lathe designed for precision and heavy-duty machining tasks. It features a maximum turning diameter of 31.49 inches and a turning length of 54 inches, making it suitable for a variety of industrial applications. The lathe is operated using the reliable Fanuc 0i-TC series control system, ensuring accurate and efficient operation.

Equipped with two 24-inch 4 jaw manual chucks and a spindle nose/bore of A2-15 inches and 10 inches respectively, this machine allows for versatile handling of workpieces up to a 36.22-inch maximum swing. The spindle reaches speeds of up to 600 RPM, powered by a 40 HP motor, providing the necessary torque for demanding processes.

Additional features include a 12-station turret for flexible tooling options. With machine dimensions of 169 inches in length (244 inches including the conveyor) by 90 inches in width and 109 inches in height, and a weight of 28,600 lbs., it requires significant workshop space but offers substantial capacity and capability. This CNC lathe is an excellent choice for businesses needing a high-performance, reliable machining solution.

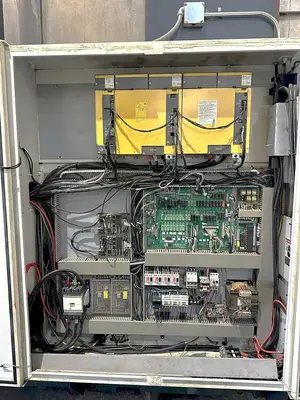

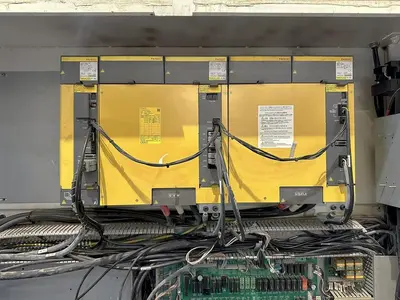

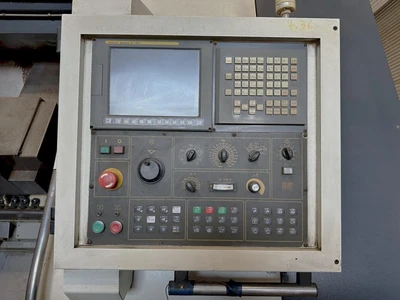

Control: Fanuc 0i-TC Series Control

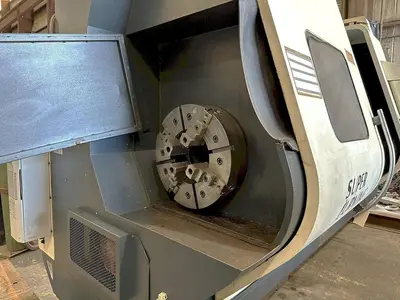

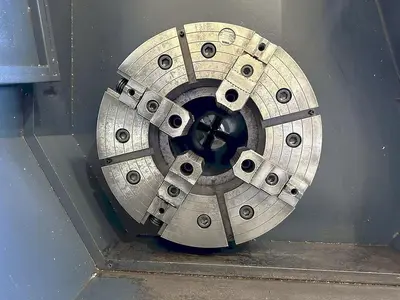

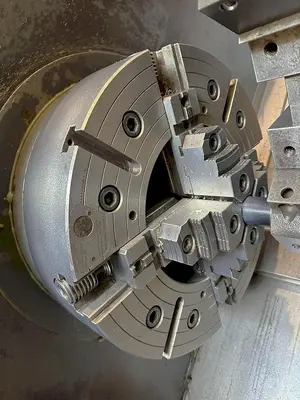

Chuck Size: (2) 24" 4 Jaw Manual Chucks
Maximum Swing: 36.22"
Maximum Cutting Diameter: 31.49"
Maximum Turning Length: 54"
Spindle Nose / Spindle Bore: A2-15" / 10"
Spindle Speeds: 600 RPM
Spindle Motor: 40 HP

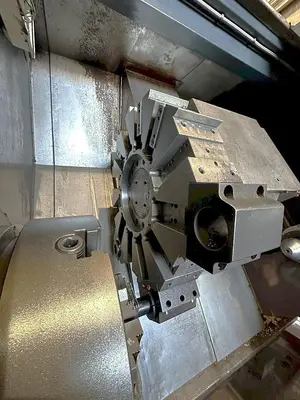

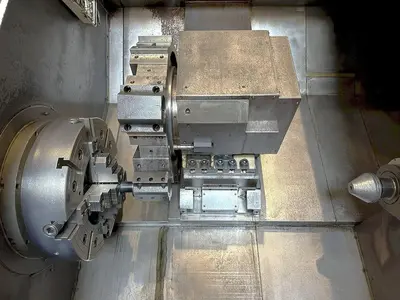

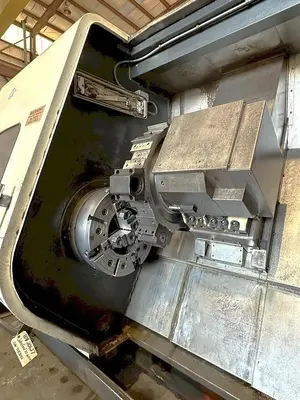

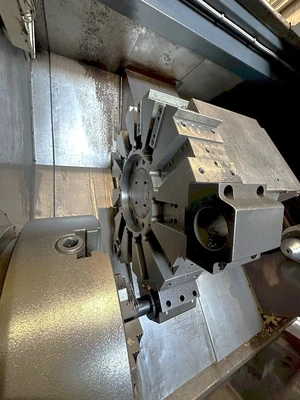

Number of Turret Positions: 12 Station Turret
Machine Dimensions: 192" (244" with conveyor) x 112" x 120" with Mist Collector
Machine Weight: 28,600 lbs.
