USED 1976 CLAUSING 17 8000 SERIES
Overview
Specs

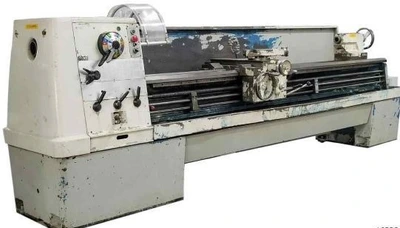

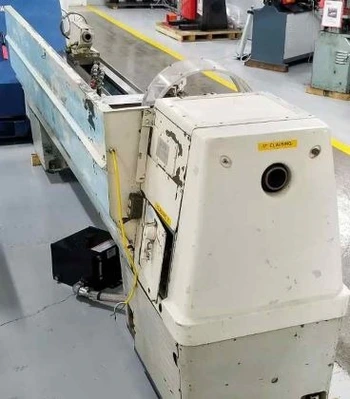

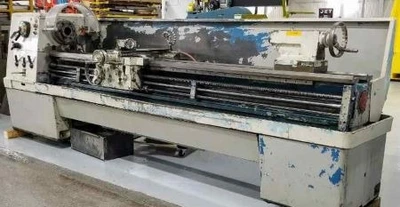

CLAUSING (USED) 17" MODEL 8056 ENGINE LATHE
17 1/4" SWING OVER BED
10 1/2" SWING OVER CROSS SLIDE
3" BAR CAPACITY THRU SPINDLE
100" DISTANCE BETWEEN CENTERS
8" D1 CAMLOCK SPINDLE NOSE
3 1/16" HOLE THRU SPINDLE
5 MT
SPINDLE SPEEDS
- 16 SPEEDS
- 20-1600 RPM
US STANDARD THREADS
- 38 QUANITY
- 2 TO 72
METRIC THREADS
- 40 QUANITY
- 0.4 TO 14
45 LONGITUDINAL FEEDS
- .002 TO .032"
CROSS FEEDS
- .001 TO .016"
12 1/4" CROSS SLIDE TRAVEL
TAILSTOCK
- 5 MT CENTER
- 7" SPINDLE TRAVEL
10HP
Power: 440 (3-Phase)
