USED 1999 Clausing-Kondia FV-1

30" X Axis 3HP Spindle Clausing-Kondia FV-1 CNC VERTICAL MILL

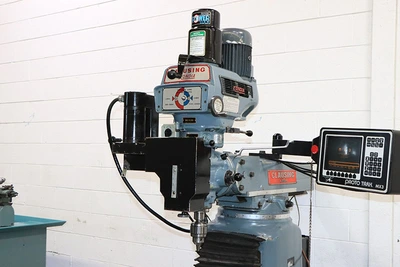

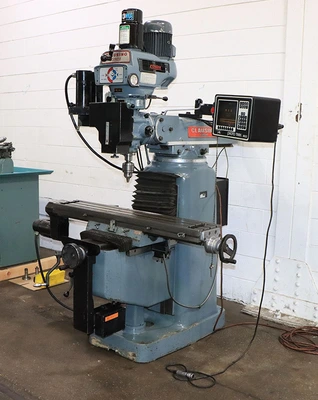

CLAUSING-KONDIA 3-AXIS

CNC VERTICAL MILL

MODEL: FV-1 W/PROTOTRAK MX-3

  S/N: 66

MACHINE RETROFITTED IN 1995 & CONTROL BOX UPDATED IN 2010

SPECIFICATIONS:

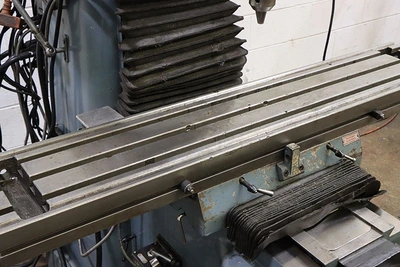

WORKING SURFACE OF TABLE ................. 9" x 48"

LONGITUDINAL TABLE TRAVEL ................ 30"

CROSS TABLE TRAVEL ....................... 14.5"

QUILL TRAVEL ............................. 5"

KNEE TRAVEL .............................. 16-1/2"

SPINDLE TAPER ............................ R-8

VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM

SPINDLE FEEDS(3) ................... .0015, .003, .0047" IPR

FLOOR SPACE: ............................. 60" x 78" x 82-1/2"H

WEIGHT APPROXIMATELY: .................... 3,200 LBS.

EQUIPPED WITH:

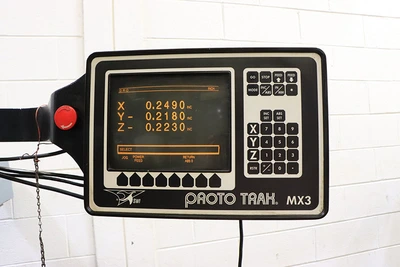

SOUTHWEST INDUSTRIES TRAK MX 3-AXIS CNC CONTROL SYSTEM

   WITH SERVO MOTORS, MANUAL DATA INPUT 3 AXIS

   LINEAR& CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,

   BOLT HOLE PATTERNS, PART GRAPHICS

IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT

REMOTE GO SWITCH

HARDENED & GROUND BALLSCREWS ON TABLE, SADDLE & SPINDLE

HARDENED & GROUND WAYS AND TABLE

KURT AIR ACTUATED PWER DRAW BAR

ONE-SHOT LUBRICATION SYSTEM

3 HORSE POWER MAIN MOTOR

TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL

PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK

INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE

FOR MORE INFORMATION: Call David at 973-497-7570
