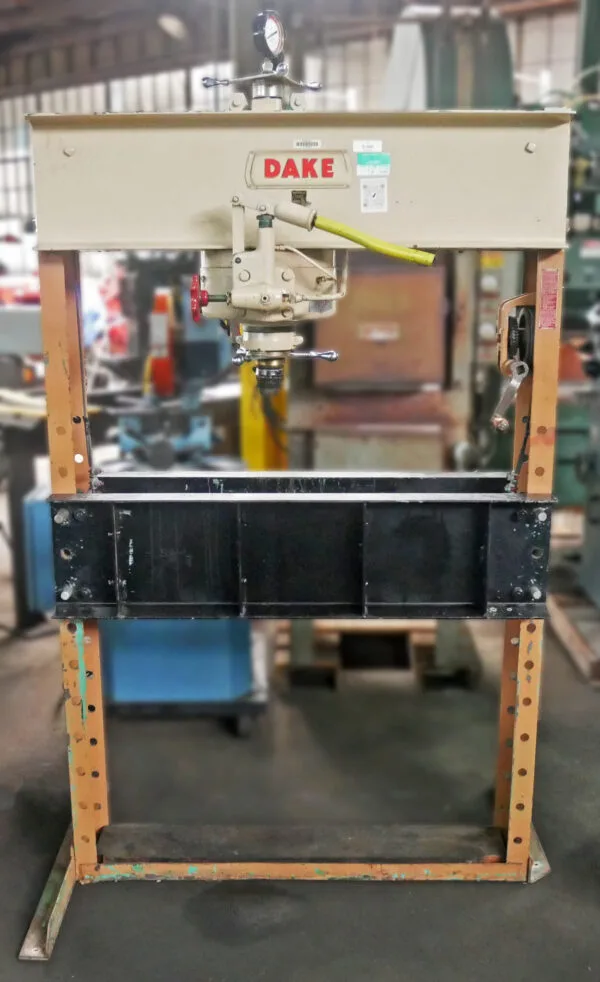

75 Ton 4.5" Stroke Dake 75H H-FRAME HYDRAULIC PRESS
75 TON DAKE H-FRAME HAND OPER. HYD. PRESS
MODEL 75-H S/N 150734
RATED CAPACITY ........................... 75 TONS
WIDTH BETWEEN UPRIGHTS ................... 44"
WIDTH BETWEEN TABLE CHANNELS ............. 8-1/4"
MINIMUM RAM TO TABLE ..................... 6"
MAXIMUM RAM TO TABLE ..................... 36"
RAM TRAVEL ............................... 4-1/2"
HORIZONTAL WORKHEAD TRAVEL ............... 29-5/8"
SCREW TRAVEL ............................. 7"
EQUIPPED WITH:
- MOVEABLE WORKHEAD

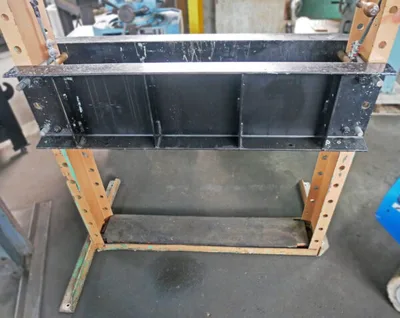

- ADJUSTABLE TABLE
- RAPID RAM RETURN
- RAPID SCREW TRAVERSE OF RAM
OVERALL DIMENSIONS: 55" X 36" X 87" H
WEIGHT: 1,245 LBS.
FOR MORE INFORMATION: Call Rick at 973-497-7560
