X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false

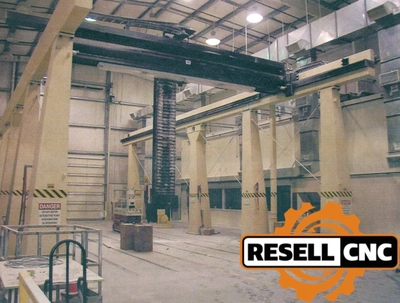

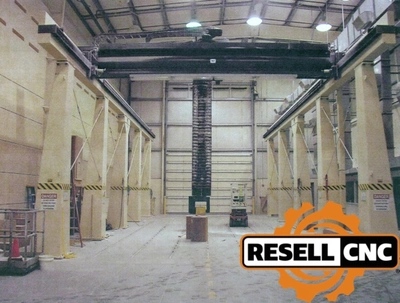

Additional Machine Specs: ENVELOPE SIZE:
X-Axis: 50'
Y-Axis: 18'
Z-Axis: 10'
C-Axis: 370 Degrees
B-Axis: 260 Degrees
Distance Between Columns: 25' Inside
ASSEMBLY COMPONENTS:
X-Axis Runway
Y-Axis Bridge
Z-Axis Mast Assembly
ELECTRICAL:
Cimroc Controller
Drive Cabinet
I/O Cabinet
Drive Motors
Resolvers
High Frequency Speed Controller
Spindle Chiller

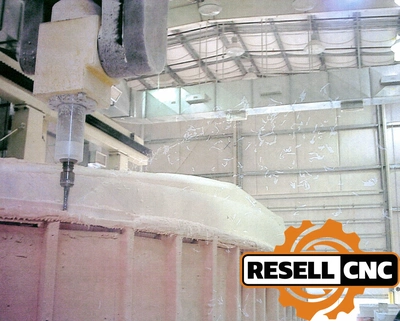

PRECISE SPINDLE:
Voltage: 67-350
Amps: 27
Motor: 16 HP
Speed: 3000 - 18000 RPM
EQUIPPED WITH:
Simultaneous Machining
Renishaw Probing System
Auxiliary Spindle
Spare Motors
Motor Drives
Gear Boxes
Assortment of Other Spare Parts
B Axis: false
C Axis: false
Control Make Model: Cimroc Controller
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Probe Make Model: Renishaw Probe
Programmable Tailstock: false
Rotary Table Trunnion: None
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 16
Spindle Speed: 18000.0
Spindle Taper Type: Other
Sub Spindle: false
Tailstock: false
Tool Changer Type: None
Twin Turret: false
X Travel: 600.0
Y Axis: false
Y Travel: 216.0
Z Travel: 120.0
