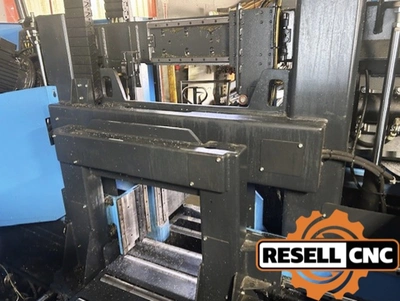

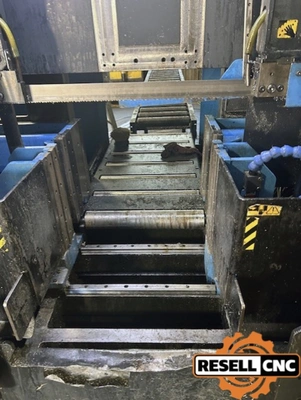

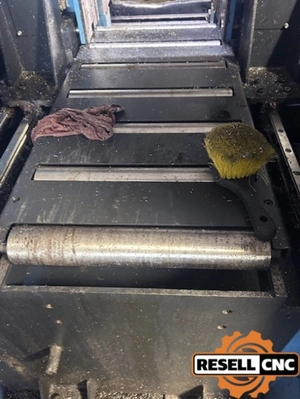

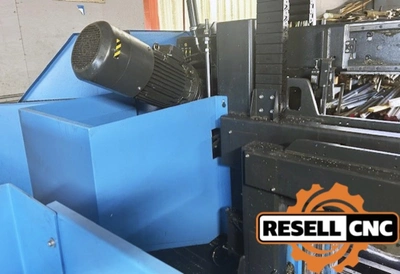

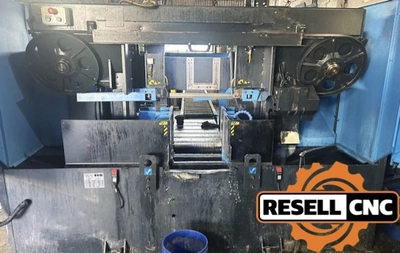

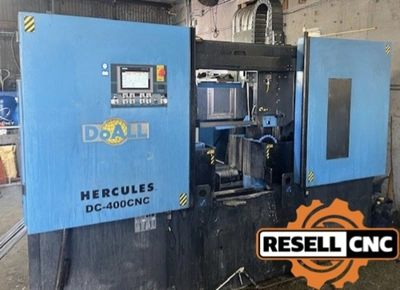

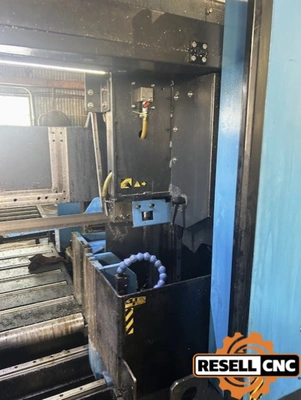

USED 2021 DoAll Hercules DC-400

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: CUTTING CAPACITY

- Round: 15.75” (400 mm)

- Rectangle: 15.75" x 15.75" (400 mm x 400 mm)

- Bundle: 15.75" x 9.8" (400 mm x 250 mm)



BLADE & CUTTING DATA

- Blade Length: 220" (5580 mm)

- Blade Width: 1-1/2" (41 mm)

- Blade Thickness: 0.05" (1.3 mm)

- Band Speed Range: 65 – 328 FPM (20 – 100 m/min)

- Feed Rate: Programmable (CNC controlled)



MOTORS & POWER

- Band Drive Motor: 7.5 HP (5.6 kW)

- Hydraulic Pump Motor: 2 HP (1.5 kW)

- Coolant Pump Motor: 0.16 HP (0.12 kW)

- Electrical Requirement: 400–460 V AC, 3-Phase

- Band Tensioning: Hydraulic (automatic)



DIMENSIONS & WEIGHT

- Machine Footprint: 117" W x 82" L x 87" H (2970 x 2080 x 2200 mm)

- Approx. Weight: 6000 – 7850 lbs (2740 – 3560 kg)



STANDARD FEATURES

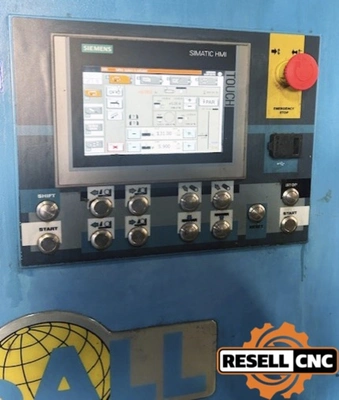

- Siemens CNC touch-screen controller

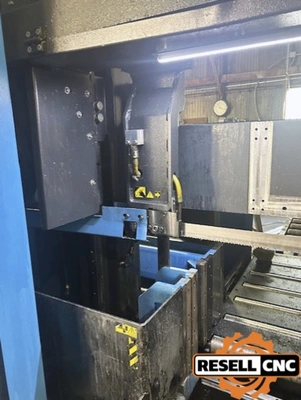

- Automatic guide arm adjustment

- Work height/drop sensor

- Power-driven band brush

- Dual-acting index vise jaws

- Automatic material retraction for blade protection

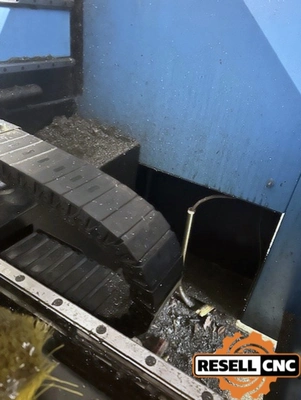

- Worm-type chip conveyor

- Flood coolant system

- Tool kit, bi-metal saw blade, and coolant starter kit

- Digital manuals (USB or CD)

B Axis: false
C Axis: false
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Programmable Tailstock: false
Saw Type: Horizontal Bandsaw
Single Turret: false
Single Turret Live Tooling: false
Sub Spindle: false
Tailstock: false
Twin Turret: false
Y Axis: false
