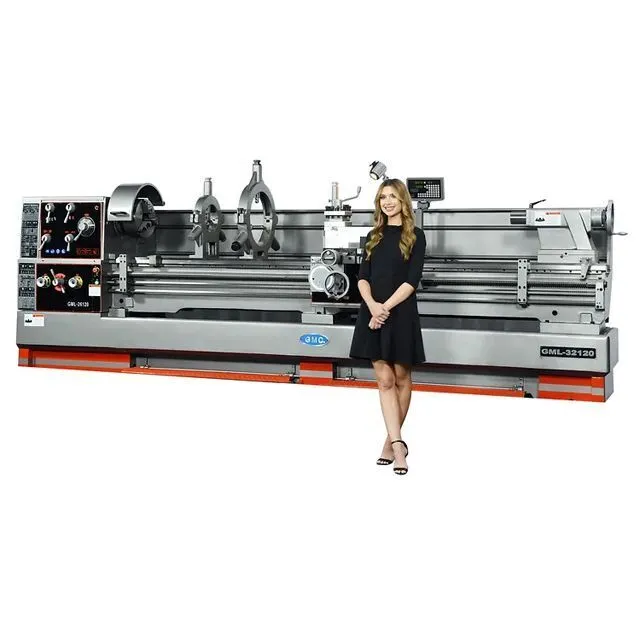

NEW GMC MACHINE TOOLS GML-26160

Florida, United States
Asking Price
USD $49,850.00
1 available
3,886Listings|10Followers
Overview
Gap Lathes

The GML-26160 26x160 in. Heavy Duty Precision Gap Bed Lathe. Engineered by GMC MACHINE TOOLS, this new model offers 16 spindle speeds ranging from 25-1,600 rpm. Key specs include a 15 hp motor and a 4.125" spindle bore. Optional tools available.

Specs
Lathe Type
Precision
Precision
Swing Over Bed
26"
660.4 mm
Distance Between Centers
160"
4,064 mm
Spindle Bore
4.125"
104.77 mm
Spindle Nose
D1-8
D1-8
Number Of Spindle Speeds
16 steps
16 steps
Range Of Speeds
25-1,600 rpm
25-1,600 rpm
Number of Inch Threads
80-7/16 TPI, 54 kinds
80-7/16 TPI, 54 kinds
Motor
15 hp
11.2 kW
Phase
3
3
Voltage
440V
440V
Dimensions
227 x 46 x 72 in.
227 x 46 x 72 in.
Weight
10,850 lbs
10,850 lbs

Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 1 YEAR - Parts

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly

Equipped With

OPTIONAL ITEMS:
ALORIS type QC tool post set # 3900-5160, 6 pcs …................... $1,850.00
15” large steady rest with roller jaws …………………………….. $1,850.00
Live Center # 3900-5005…………………………………………. $195.00
Extra 7-1/2” steady rest with roller jaws …………………………. $995.00
