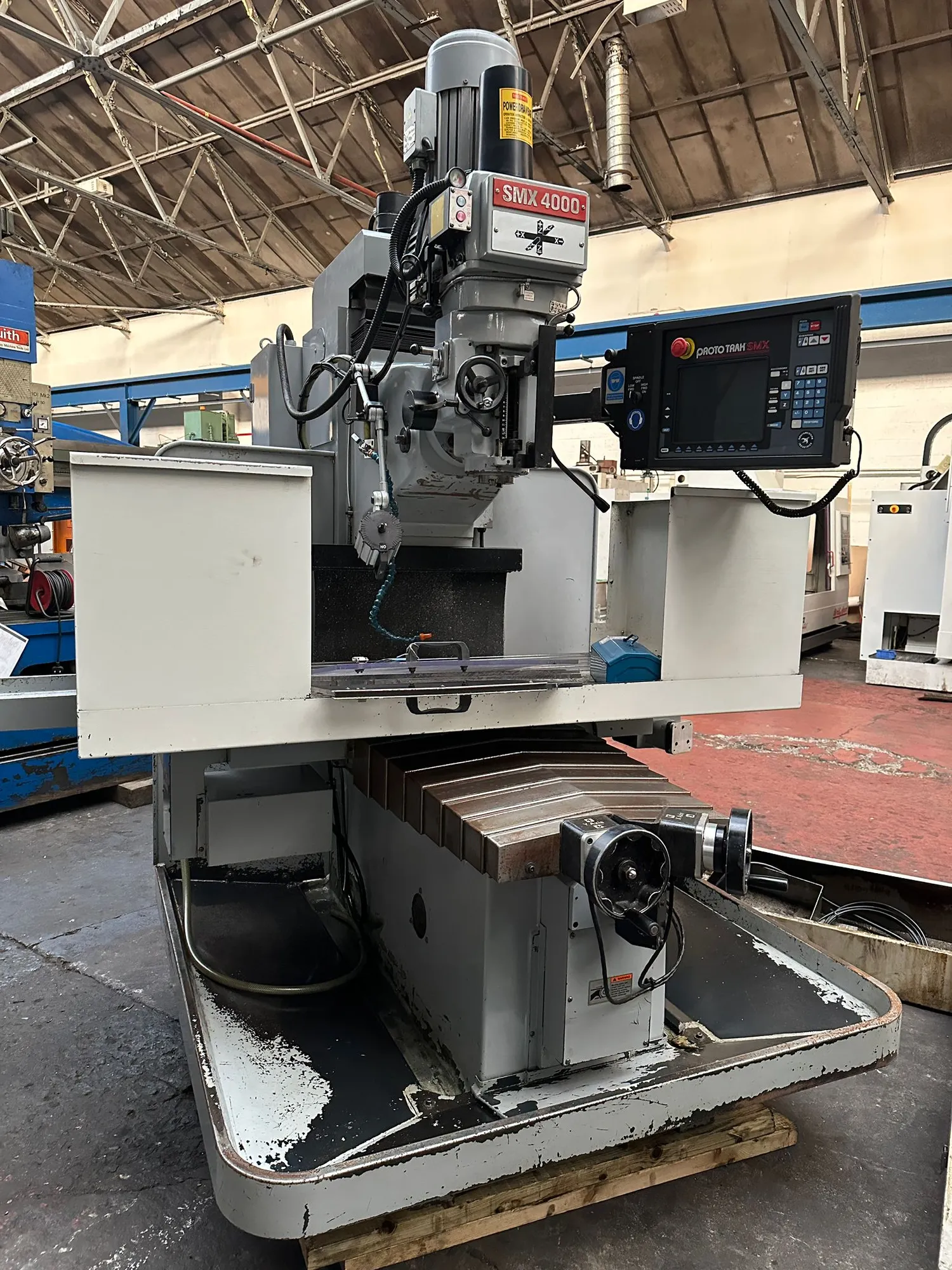

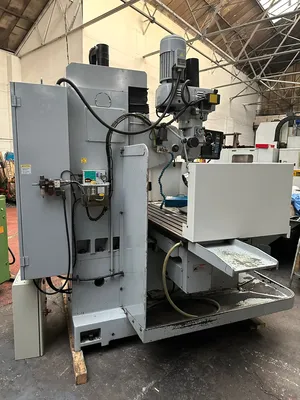

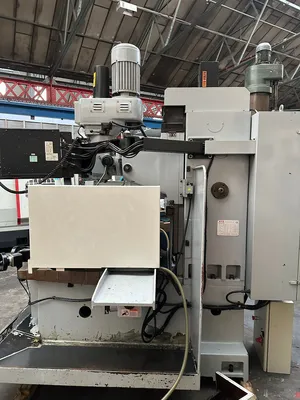

XYZ SMX 4000 CNC Bed Mill

XYZ SMX-4000 CNC Bed Mill — High-Performance 3-Axis CNC Machining
The XYZ SMX-4000 CNC Bed Mill is a robust and versatile machining solution engineered for precision, productivity, and ease of use. Built on XYZ’s well-proven bed mill platform with ProtoTRAK SMX CNC control, this machine delivers exceptional capability for both production and prototype work across metalworking, fabrication, toolroom, and engineering environments.
Key Features & Performance
Advanced ProtoTRAK SMX CNC Control – Intuitive, operator-friendly control enables powerful 3-axis programming and smooth execution of complex milling operations.
Spacious Work Envelope – Generous travel distances of approximately X: 1016 mm, Y: 596 mm, Z: 540 mm provide the capacity to handle large and medium-sized workpieces with ease.
Large Work Table – A substantial table of roughly 1470 mm length × 355 mm width supports heavy fixtures and components, with a high maximum table load for stable machining.
Powerful Spindle – Programmable spindle speeds up to 5,000 rpm and ISO-40 taper make the SMX-4000 suitable for a wide range of milling, drilling, and finishing operations.
Rigid Construction – Solid bed mill design ensures rigidity and vibration resistance, yielding precise, repeatable cuts and long-term reliability.
Versatile Capability – Ideal for machining castings, tooling, dies, and components in steel, aluminium, and other materials — from one-off projects to batch production runs.
Why Choose the SMX-4000?
The XYZ SMX-4000 combines ease of operation with industrial-strength performance, making it an excellent choice for workshops aiming to boost productivity without compromising on accuracy. Whether you’re milling complex profiles or performing heavy-duty work, this CNC bed mill offers the right balance of size, control, and capability.

New 2013
Table size 1474 x 356 mm
X axis 1016 mm
Y Axis 596 mm
Z Axis 584 mm (Head Traverse)
Spindle Speeds 40 – 5000 rpm & 40ISO
7.5 hp Spindle Drive.
Max Table load 850 kg
