XYZ SMX 5000

XYZ SMX 5000 CNC Milling Machine for Sale
The XYZ SMX 5000 CNC bed milling machine is a powerful and highly versatile solution for precision engineering, toolroom applications, and small to medium batch production. Designed and built in the UK by XYZ Machine Tools, this machine combines robust construction with advanced conversational CNC control, making it ideal for both experienced machinists and workshops looking to maximise productivity with ease of use.
Key Features
Large working envelope with 3-axis CNC control
Heavy-duty cast iron construction for maximum stability
1930 x 355mm table with high load capacity
Powerful 5.75kW spindle with up to 5000 rpm
ISO 40 spindle taper
Tilting head for increased machining flexibility
ProtoTRAK SMX conversational CNC control
Ideal for toolrooms, subcontract machining, and general engineering
Ideal Applications
The XYZ SMX 5000 is perfectly suited for:
Toolroom and maintenance work
One-off and small batch production
General engineering and fabrication
Prototype development

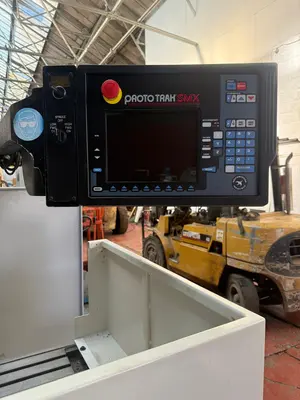

ProtoTRAK SMX Control
Spindle: 7.5Hp – Programmable
70 – 5000rpm
ISO40
Table: 1930 x 355mm
4 off T Slots size 15.9mm
Max load 850kgs
Travel: X – 1524mm, Y – 596mm, Z – 584mm

Dims:
W – 5805mm
D – 2530mm
H – 3143mm
Weight – 3100Kgs
Click Here To View Machine Under Power
