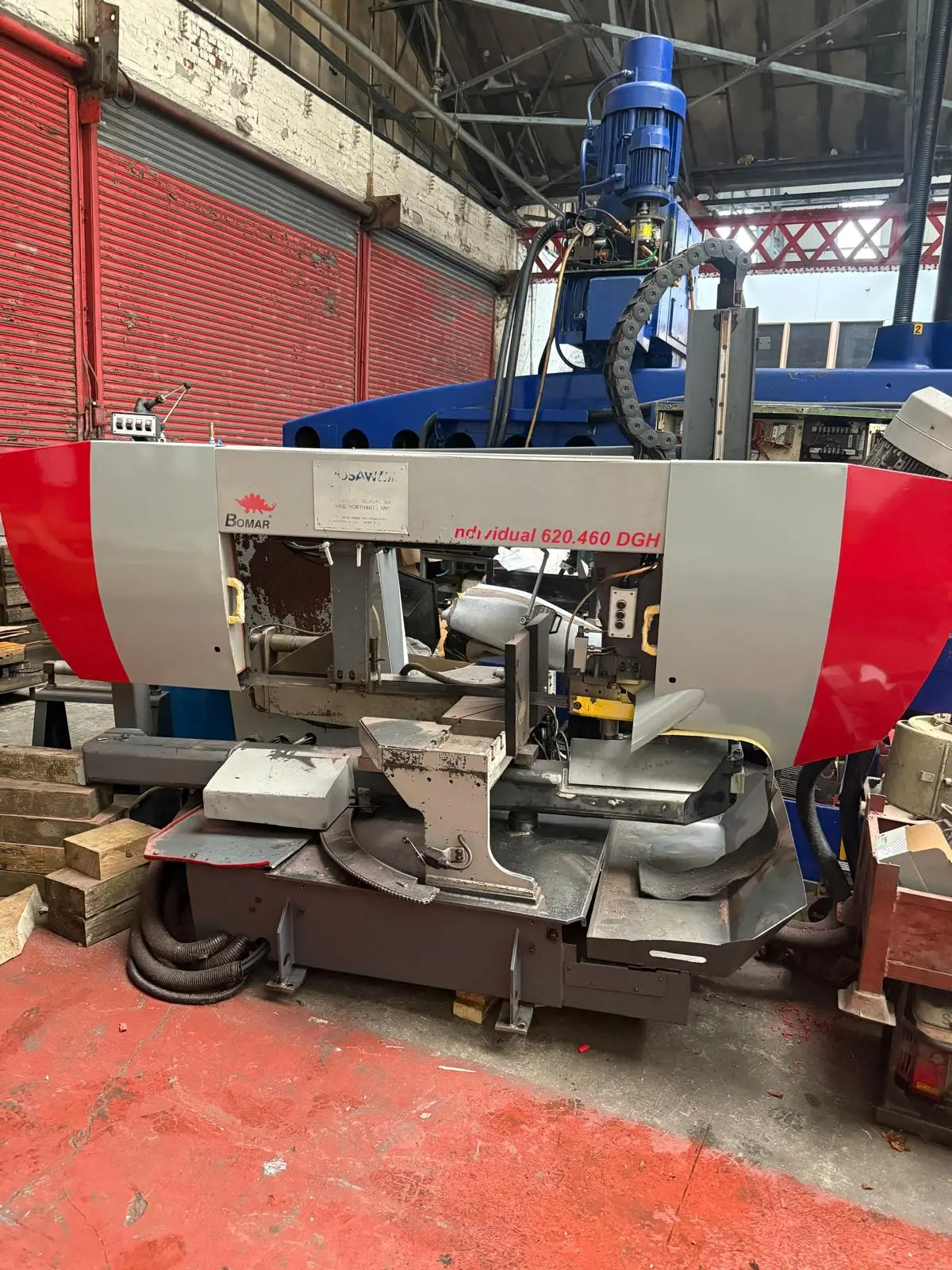

Bomar 620-460 Swivel Bow Bandsaw

Bomar 620-460 Swivel Bow Bandsaw
Take your precision cutting to the next level with the Bomar 620-460 Swivel Bow Bandsaw, a robust and versatile semi-automatic bandsaw built for demanding workshops and industrial environments.
Key Features & Performance Highlights
Impressive Cutting Capacity
Cut round sections up to Ø460 mm and rectangular material up to 620 × 460 mm, ideal for a wide range of steel, stainless steel, and alloy profiles.
Hydraulic Clamping & Dual-Mitre Capability
Enjoy effortless and repeatable material securing thanks to hydraulic clamping, with double mitre cutting support—allowing seamless bevel cuts for enhanced workflow flexibility.
Variable Blade Speeds
Achieve optimal cutting control with an adjustable blade speed range from 76 to 363 ft/min, supporting diverse material types and thicknesses.
Swivel Bow Design
The swivel bow enhances adaptability for various cutting angles while keeping the worktable intact and protected.
Why This Model Stands Out
Built for Versatility & Heavy-Duty Use
With its generous capacity and swivel-bow configuration, this saw is tailored for versatile industrial cutting—from large solid sections to complex angled profiles.
Reliable and Operator-Friendly
Hydraulic components streamline operations, offering smooth material orientation and precise double-mitre cuts with minimal manual adjustment.
Efficient & Productive
Adapt your cutting speed on-the-fly to match material demands, maximizing blade life, reducing wear, and boosting productivity.
The Bomar 620-460 Swivel Bow Bandsaw is a premium semi-automatic cutting machine combining versatility, precision, and durability. Its generous capacity and swivel-bow design make it a standout choice for industrial professionals who demand reliability and flexibility in their cutting equipment.

Working mode:      semiautomatic
Machine type:        Horizontal bandsaw
Cut:    Mitre cut
Mitre cuts range:  -60° – 60°
Drive: 4 kW, 3×400 V/50 Hz
Saw band speed:   20 – 120 m/min.
Saw band dimensions:    6 100×41×1,3 mm
Material loading height: 770 mm
Shortest remnant length:           40 mm
Smallest sawing diameter:        Ø 5 mm
