Sparcatron SM20

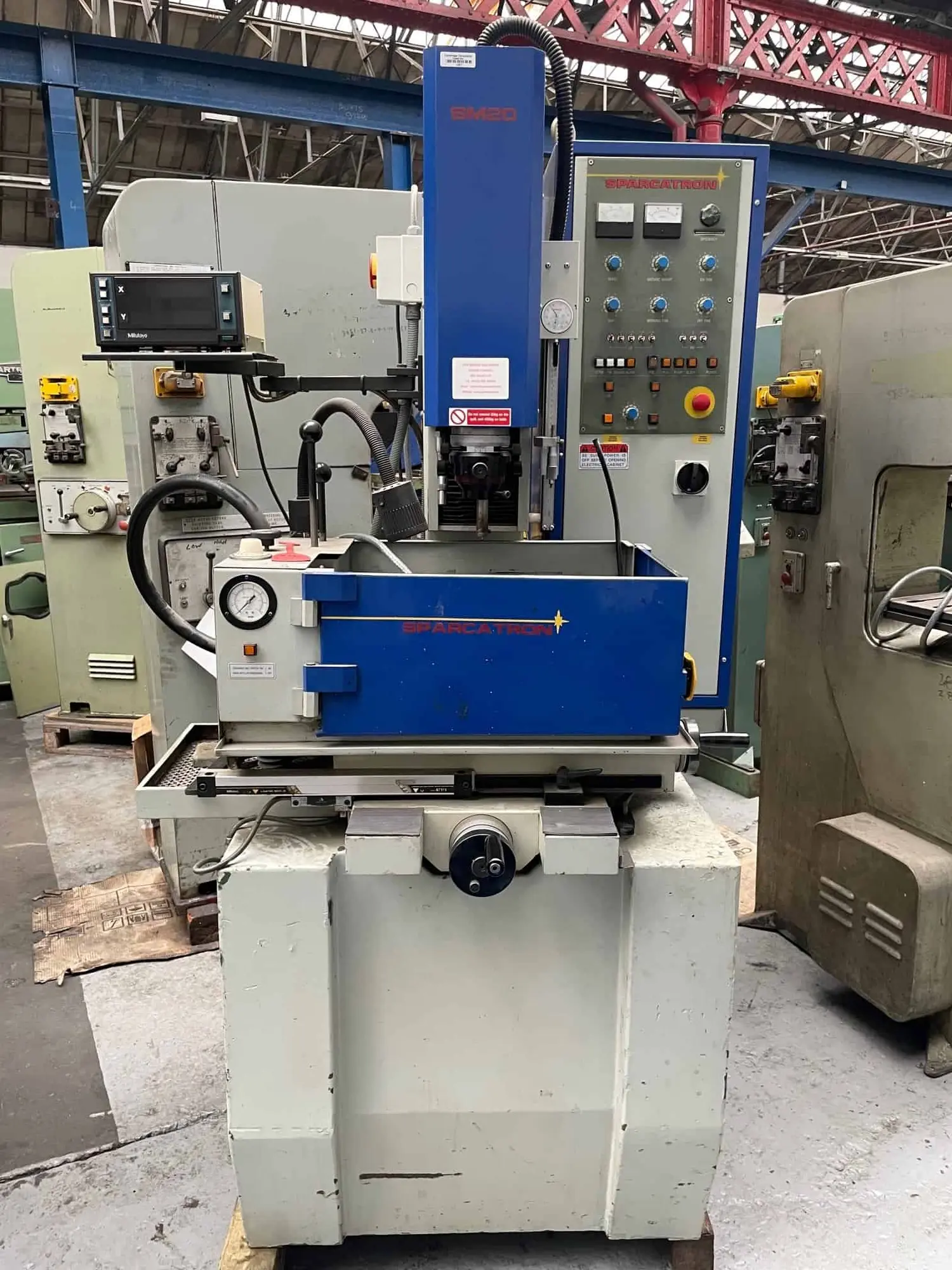

Sparcatron SM20 EDM
The Sparcatron SM20 is a high-precision industrial tool designed for effective electrical discharge machining (EDM). It is engineered to handle demanding tasks, offering accuracy and power for creating intricate metal components. Ideal for workshops needing reliable, precise machining solutions, the SM20 enhances production quality and consistency across various metalworking applications.

Work table – 400 x 250m
Max workpiece – 530 x 400 x 280mm
Max table workload – 450kg
Longitudinal traverse – 230mm
Cross traverse – 160mm
Ram vertical travel – 300mm
Max table to head travel – 150mm (min) 450mm (max)

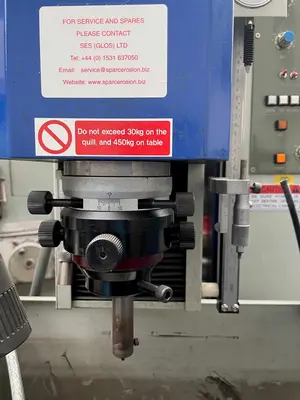

Max ram workload – 30kg
Max working speed – 150mm/min
Electrode wear ratio – Below 0.35%
Max surface finish – 15 vd
Max process current – std – 150amp, opt – 30amp
Power consumpsion – 2.5kva
Filter tank capacity – 300L
Generator Model 30a – 21″w x 43″d x 41″h
